Preface

Thank you for choosing DELTA’s high-performance VFD-S Series. The VFD-S Series is manufactured with high-quality components and materials and incorporate the latest microprocessor technology available.

This manual is to be used for the installation, parameter setting, troubleshooting, and daily maintenance of the AC motor drive. To guarantee safe operation of the equipment, read the following safety guidelines before connecting power to the AC motor drive. Keep this operating manual at hand and distribute to all users for reference.

To ensure the safety of operators and equipment, only qualified personnel familiar with AC motor drive are to do installation, start-up and maintenance. Always read this manual thoroughly before using VFD-S series AC Motor Drive, especially the WARNING, DANGER and CAUTION notes. Failure to comply may result in personal injury and equipment damage. If you have any questions, please contact your dealer.

PLEASE READ PRIOR TO INSTALLATION FOR SAFETY.

DANGER!

1. AC input power must be disconnected before any wiring to the AC motor drive is made.

2. A charge may still remain in the DC-link capacitors with hazardous voltages, even if the power has been turned off. To prevent personal injury, please ensure that power has been turned off before opening the AC motor drive and wait ten minutes for the capacitors to discharge to safe voltage levels.

3. Never reassemble internal components or wiring.

4. The AC motor drive may be destroyed beyond repair if incorrect cables are connected to the input/output terminals. Never connect the AC motor drive output terminals U/T1, V/T2, and W/T3 directly to the AC mains circuit power supply.

5. Ground the VFD-S using the ground terminal. The grounding method must comply with the laws of the country where the AC motor drive is to be installed. Refer to the Basic Wiring Diagram.

6. VFD-S series is used only to control variable speed of 3-phase induction motors, NOT for 1phase motors or other purpose.

7. VFD-S series shall NOT be used for life support equipment or any life safety situation.

WARNING!

1. DO NOT use Hi-pot test for internal components. The semi-conductor used in the AC motor

drive is easily damaged by high-pressure.

2. There are highly sensitive MOS components on the printed circuit boards. These components

are especially sensitive to static electricity. To prevent damage to these components, do not touch these components or the circuit boards with metal objects or your bare hands.

3. Only qualified personnel are allowed to install, wire and maintain AC motor drive.

CAUTION!

1. Some parameter settings will cause the motor to run immediately after applying power.

2. DO NOT install the AC motor drive in a place subjected to high temperature, direct sunlight,

high humidity, excessive vibration, corrosive gases or liquids, or airborne dust or metallic particles.

3. Only use AC motor drives within specification. Failure to comply may result in fire, explosion or

electric shock.

4. To prevent personal injury, please keep children and unqualified people away from the

equipment.

5. When the motor cable between the AC motor drive and motor is too long, the layer insulation of

the motor may be damaged. Please use a frequency inverter duty motor or add an AC output reactor to prevent damage to the motor. Refer to appendix B Reactor for details.

6. The rated voltage for the AC motor drive must be ≤ 240V (≤ 480V for 460V models) and the

mains supply current capacity must be ≤ 5000A RMS (≤10000A RMS for the ≥ 40hp (30kW) models).

Preface ..............................................................................................................i

Table of Contents...........................................................................................iii

Chapter 1 Introduction.................................................................................1-1

1.1 Receiving and Inspection.................................................................... 1-1

1.1.1 Nameplate Information................................................................ 1-1

1.1.2 Model Explanation ...................................................................... 1-1

1.1.3 Series Number Explanation........................................................1-2

1.1.4 Drive Frames .............................................................................. 1-2

1.2 Appearances....................................................................................... 1-2

1.3 Installation Steps ................................................................................ 1-3

1.4 Storage............................................................................................... 1-4

Chapter 2 Installation and Wiring ...............................................................2-1

2.1 Ambient Conditions............................................................................. 2-1

2.2 Installation........................................................................................... 2-1

2.3 Dimensions......................................................................................... 2-3

2.4 Wiring ............................................................................................... 2-16

2.4.1 Basic Wiring.............................................................................. 2-17

2.4.2 External Wiring.......................................................................... 2-21

2.4.3 Main Terminals Connections .................................................... 2-22

2.4.4 Control Terminals...................................................................... 2-24

2.4.5 Main Circuit Terminals..............................................................2-28

Chapter 3 Start Up........................................................................................3-1

3.1 Preparations before Start-up............................................................... 3-1

3.2 Operation Method............................................................................... 3-2

3.3 Trial Run.............................................................................................3-2

Chapter 4 Digital Keypad Operation...........................................................4-1

4.1 Description of the Digital Keypad........................................................ 4-1

4.2 Explanation of LED Indicators............................................................. 4-1

4.3 Explanations of Display Messages.....................................................4-1

4.4 How to Operate the Digital Keypad..................................................... 4-3

Chapter 5 Parameters ..................................................................................5-1

5.1 Summary of Parameter Settings......................................................... 5-2

5.2 Parameter Settings for Applications.................................................. 5-12

5.3 Description of Parameter Settings....................................................5-17

Chapter 6 Fault Code Information...............................................................6-1

6.1 Common Problems and Solutions ...................................................... 6-1

6.2 Reset ..................................................................................................6-4

Chapter 7 Troubleshooting..........................................................................7-1

7.1 Over Current (OC)..............................................................................7-1

7.2 Ground Fault....................................................................................... 7-2

7.3 Over Voltage (OV)..............................................................................7-2

7.4 Low Voltage (Lv).................................................................................7-3

7.5 Over Heat (OH)................................................................................... 7-4

7.6 Overload............................................................................................. 7-4

7.7 Keypad Display is Abnormal............................................................... 7-5

7.8 Phase Loss (PHL)............................................................................... 7-5

7.9 Motor cannot Run...............................................................................7-6

7.10 Motor Speed cannot be Changed..................................................... 7-7

7.11 Motor Stalls during Acceleration.......................................................7-8

7.12 The Motor does not Run as Expected .............................................. 7-8

7.13 Electromagnetic/Induction Noise ...................................................... 7-9

7.14 Environmental Condition................................................................... 7-9

7.15 Affecting Other Machines ............................................................... 7-10

Chapter 8 Maintenance and Inspections....................................................8-1

Appendix A Specifications.........................................................................A-1

Appendix B Accessories ............................................................................B-1

B.1 All Brake Resistors & Brake Units Used in AC Motor Drives..............B-1

B.1.1 Dimensions and Weights for Brake resistors..............................B-2

B.2 EMI Filters..........................................................................................B-3

B.2.1 Dimensions.................................................................................B-6

B.3 AC Reactor.......................................................................................B-10

B.3.1 AC Input Reactor Recommended Value...................................B-10

B.3.2 AC Output Reactor Recommended Value................................B-11

B.3.3 Applications for AC Reactor .....................................................B-11

B.4 DC Choke Recommended Values....................................................B-15

B.5 Zero Phase Reactor (RF220X00A) ..................................................B-16

B.6 Din Rail-DR01 ..................................................................................B-17

B.7 Remote Controller RC-01.................................................................B-18

B.8 Conduit Bracket (BK-S)....................................................................B-19

B.9 Non-fuse Circuit Breaker Chart ........................................................B-20

Appendix C How to Select the Right AC Motor Drive...............................C-1

C.1 Capacity Formulas.............................................................................C-2

C.2 General Precautions ..........................................................................C-4

C.3 How to Choose a Suitable Motor........................................................C-5

Appendix D CE ............................................................................................D-1

Chapter 1 Introduction

1.1 Receiving and Inspection

This VFD-S AC motor drive has gone through rigorous quality control tests at the factory before shipment. After receiving the AC motor drive, please check for the following:

Check to make sure that the package includes an AC motor drive, the User



Manual/Quick Start and CD, dust covers and rubber bushings. Inspect the unit to assure it was not damaged during shipment.



Make sure that the part number indicated on the nameplate corresponds with the part



number of your order.

1.1.1 Nameplate Information

Example for 1HP/0.75kW 3-phase 230V AC motor drive

AC Drive Model

Input Spec.

Output Frequency Range

Serial Number & Bar Code

Output Spec.

MODEL : VFD007S23A INPUT : 3PH 200-240V 50/60Hz 5.1A OUTPUT : 3PH 0-240V 4.2A 1.6kVA 0.75kW/1HP

Frequency Range : 1-400Hz

007S23A0T70 100 01

DELTA ELECTRONICS INC.

MADE IN XXXXX

1.1.2 Model Explanation

VFD

Version Type

007

Input Voltage 11:Single phase 115V 21:Single phase 230V 23:Three phase 230V 43:Three phase 460V

S Series

Applicable motor capacity

002: 0.25HP(0.2kW) 004: 0.5HP (0.4kW) 007: 1 HP(0.7kW)

Series Name

Revision August 2006, SE08, SW V2.61 1-1

022: 3 HP(2.2kW)

Chapter 1 Introduction|VFD-S Series

1.1.3 Series Number Explanation

0160T007S23A

Productio n number Production week Productio n year 2006 Production fa ctory

230V 3-phase 1HP(0.7 5kW)

(Taoyuan) Model

If the nameplate information does not correspond to your purchase order or if there are any problems, please contact your distributor.

1.1.4 Drive Frames

Frame Power range Models

Please refer to Chapter 2.3 for exact dimensions.

0.25-2hp (0.2-1.5kW)

1-5hp (0.75-3.7kW)

VFD002S11A/11B/21A/21B/21E/23A, VFD004S11A/11B/21A/21B/21E/23A/43A/43B/43E, VFD007S21A/21B/21E/23A/43A/43B/43E, VFD015S23D VFD007S11A/11B, VFD015S21D/21E/21U/43D/43E/43U, VFD022S21D/21E/21U/23D/43D/43E/43U

1.2 Appearances

VFD002S11A/11B/21A/21B/23A, VFD004S11A/11B/21A/21B/23A/43A/43B/43E, VFD007S21A/21B/23A/43A/43B/43E,

1-2 Revision August 2006, SE08, SW V2.61

Frame S1: VFD002S21E, VFD004S21E, VFD007S21E, VFD015S23D, Frame S2: VFD007S11A/11B, VFD015S21D/21E/21U/43D/43E/43U, VFD022S21D/21E/21U/23D/43D/43E/43U

1.3 Installation Steps

Chapter 1 Introduction|VFD-S Series

CASE

KNOB

HEAT SINK

DIVISION PLATE

SCREW

COVER

SCREW

Installation Steps

1. Remove front cover screw and open.

2. Remove Division Plate. If using optional conduit bracket, please refer to next page.

3. Connect AC Input Power and motor leads. Never connect the AC drive output terminals U/T1, V/T2, W/T3 to main AC Input power.

4. Reinstall Division Plate.

For Optional Conduit Bracket: Make sure to fasten both screws on conduit bracket as shown in the drawing for safety grounding purpose. Bring all the wires out through the conduit bracket. Screw Torque: 5 to 6 kgf-cm (4.3 to 5.2 in-lbf)

CONDUIT BRACKE

Revision August 2006, SE08, SW V2.61 1-3

Chapter 1 Introduction|VFD-S Series

DIVISION PLATE

SCREW

Reinstall Division Plate.

CONDUI BRACKET

SCREW

Screw Torque: 5 to 6 kgf-cm (4.3 to 5.2 in-lbf)

SCREW

Install Conduit Bracket cover and tighten screws.

1.4 Storage

The AC motor drive should be kept in the shipping carton or crate before installation. In order to retain the warranty coverage, the AC motor drive should be stored properly when it is not to be used for an extended period of time. Storage conditions are:

Store in a clean and dry location free from direct sunlight or corrosive fumes. Store within an ambient temperature range of -20 °C to +60 °C. Store within a relative humidity range of 0% to 90% and non-condensing environment. Store within an air pressure range of 86kPa to 106kPa.

CAUTION!

1. DO NOT store in an area with rapid changes in temperature. It may cause condensation and frost.

2. DO NOT place on the ground directly. It should be stored properly. Moreover, if the surrounding environment is humid, you should put exsiccator in the package.

1-4 Revision August 2006, SE08, SW V2.61

Chapter 1 Introduction|VFD-S Series

3. If the AC motor drive is stored for more than 3 months, the temperature should not be higher than 30 °C. Storage longer than one year is not recommended, it could result in the degradation of the electrolytic capacitors.

4. When the AC motor drive is not used for a long time after installation on building sites or places with humidity and dust, it’s best to move the AC motor drive to an environment as stated above.

Revision August 2006, SE08, SW V2.61 1-5

Chapter 1 Introduction|VFD-S Series

This page intentionally left blank.

1-6 Revision August 2006, SE08, SW V2.61

Chapter 2 Installation and Wiring

2.1 Ambient Conditions

Install the AC motor drive in an environment with the following conditions:

Operation Air Temperature: -10 ~ +50°C (14 ~ 122°F)

Storage Transportation

Pollution Degree 2: good for a factory type environment.

-10 ~ +40°C (14 ~ 104°F) for side-by-side Relative Humidity: <90%, no condensation allowed

Atmosphere pressure: 86 ~ 106 kPa Installation Site Altitude: <1000m Vibration: <20Hz: 9.80 m/s

20 ~ 50Hz: 5.88 m/s

Temperature: -20°C ~ +60°C (-4°F ~ 140°F) Relative Humidity: <90%, no condensation allowed Atmosphere pressure: 86 ~ 106 kPa Vibration: <20Hz: 9.80 m/s

20 ~ 50Hz: 5.88 m/s

mounting

(1G) max

(0.6G) max

(1G) max

(0.6G) max

CAUTION!

1. Operating, storing or transporting the AC motor drive outside these conditions may cause damage to the AC motor drive.

2. Failure to observe these precautions may void the warranty!

2.2 Installation

1. Mount the AC motor drive vertically on a flat vertical surface by using bolts or screws. Other directions are not allowed.

2. The AC motor drive will generate heat during operation. Allow sufficient space around the unit for heat dissipation.

3. The heat sink temperature may rise to 90°C when running. The material on which the AC motor drive is mounted must be noncombustible and be able to withstand this high temperature.

4. When the AC motor drive is installed in a confined space (e.g. cabinet), the surrounding temperature must be within 10 ~ 40°C with good ventilation. DO NOT install the AC motor drive in a space with bad ventilation.

Revision August 2006, SE08, SW V2.61 2-1

Chapter 2 Installation and Wiring|VFD-S Series

5. When installing multiple AC motor drives in the same cabinet, they should be adjacent in a row with enough space. When installing one AC motor drive below another one, use a metal separation barrier between the AC motor drives to prevent mutual heating. Refer to figure below for details.

6. Prevent fiber particles, scraps of paper, saw dust, metal particles, etc. from adhering to the heatsink.

Mounting Clearances

150mm (6inch)

50mm

(2inch)

150mm (6inch)

50mm

(2inch)

Air Flow

2-2 Revision August 2006, SE08, SW V2.61

2.3 Dimensions

(Dimensions are in millimeter and [inch]) Frame S1: VFD002S11A, VFD002S21A, VFD002S23A

85.0 [3.35]

74.0 [2.92]

]

[

Chapter 2 Installation and Wiring|VFD-S Series

88.0 [3.47]5.8 [0.23]

13.0 [0.51]

]

[ 0

5.0 [0.20]

Revision August 2006, SE08, SW V2.61 2-3

5.0 [0.20]

]

[ 1

]

[ 1

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD002S11B, VFD002S21B

85 .0 [3.3 5]

74 .0 [2.9 2]

]

[

88 .0 [3.4 7]5.8 [0.23 ]

13 .0 [0.5 1]

73 .0 [2.8 8]

]

3 .6 0

[ 0

. 6 1

5.0 [0.20]

2-4 Revision August 2006, SE08, SW V2.61

]

2 .1 0

[ 0

. 3

67 .8 [2.6 7]

5.0 [0.20 ]

]

4 .4 0

[ 1

. 1 1

13 .0 [0.5 1]

]

2 .3 0

[ 1

. 8

Frame S1: VFD004S11A, VFD004S21A, VFD004S23A

5.8 [0. 23]

74 .0 [2.92 ]

]

[

5.0 [0.20]

Chapter 2 Installation and Wiring|VFD-S Series

10 2. 0 [4. 02]85 .0 [3.35 ]

2.8 [0. 11]

]

5.0 [0.20]

[ 0

]

4 .4

[ 1

1 1

]

2 .3

[ 1

Revision August 2006, SE08, SW V2.61 2-5

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD004S11B, VFD004S21B

85 .0 [3.3 5]

74.0 [2.92 ]

5.8 [0.23]

]

[

10 2. 0 [4.02]

2.8 [0.11]

73 .0 [2.8 8]

]

3 .6

[ 0

5.0 [0.20 ]

2-6 Revision August 2006, SE08, SW V2.61

]

2 .1

[ 0

67 .8 [2.67]

5.0 [0.20]

]

4 .4

[ 1

27 .0 [1.0 6]

]

2 .3

[ 1

Frame S1: VFD007S21A, VFD007S23A

85 .0 [3.3 5]

5.8 [0. 23]

74 .0 [2.9 2]

]

1 .2

[ 2

. 2 3 1

]

3 .8

[ 0

. 8 4 1

5.0 [0.20]

Chapter 2 Installation and Wiring|VFD-S Series

12 4. 0 [4.89]

2.8 [0. 11]

]

5.0 [0.20]

.1 0

[ 0

. 3

]

4 .4 0

[ 1

. 1 1

]

2 .3 0

[ 1

. 8

Revision August 2006, SE08, SW V2.61 2-7

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD007S21B

85 .0 [3.3 5] 74 .0 [2.9 2]

74 .0 [2.9 2]

5.8 [0.23]

]

[

12 4. 0 [4.89]

2.8 [0.11]

]

2 .1

[ 0

. 3

67 .8 [2.6 7]

5.0 [0.20]

73 .0 [2 .88 ]

] 3 .6 0

[ 0

. 6 1

5.0 [0.20]

2-8 Revision August 2006, SE08, SW V2.61

]

. 0

[ 1

. 1 1

50 .0 [1.9 7]

] 2 .3 0

[ 1

. 8

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD004S43A, VFD004S43E, VFD007S43A, VFD007S43E

85 .0 [3.3 5 ]

5.8 [0.23]

12 6. 0 [4.96]

74 .0 [2.9 2 ]

]

[

]

5.0 [0.20]

.1 0

[ 0

. 3

5.0 [0.20]

]

4 .4 0

[ 1

. 1 1

3.0 [0.12]

] 2 .3 0

[ 1

. 8

Revision August 2006, SE08, SW V2.61 2-9

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD004S43B, VFD007S43B

85.0 [3.35]

5.8 [0.23 ]

74.0 [2.92]

]

[

12 6. 0 [4. 96]

3.0 [0.1 2]

73 .0 [2 .88]

] 3 .6 0

[ 0

. 6 1

5.0 [0.20]

2-10 Revision August 2006, SE08, SW V2.61

]

2 .1

[ 0

. 3

67 .8 [2 .67]

5.0 [0.2 0]

]

4 .4 0

[ 1

. 1 1

51.0 [2.01]

]

2 .3 0

[ 1

. 8

Chapter 2 Installation and Wiring|VFD-S Series

Frame S1: VFD002S21E, VFD004S21E, VFD007S21E, VFD015S23D

85 .0 [3.35]

5.8 [0.23] 12 7. 0 [5.00]

74 .0 [2.92]

]

[

5.0 [0 .2 0]

8.5 [0.33]

]

3 .3 0

[ 3

. 8

Revision August 2006, SE08, SW V2.61 2-11

Chapter 2 Installation and Wiring|VFD-S Series

Frame S2: VFD007S11A

10 0. 0 [3.94]

86 .5 [3.4 1]

5.4 [0.21]

]

1 .8

[ 0

. 3 7 1

12 9. 0 [5.08]

]

3 .3

[ 0

. 6 8 1

5.5 [0.22]

]

4 .0 0

[ 0

. 1

5.5 [0.22]

2-12 Revision August 2006, SE08, SW V2.61

]

8 .3 0

[ 5

. 9

]

6 .2 0

[ 5

. 6

Frame S2: VFD007S11B

100.0 [3.94]

86.5 [3.41]

5.4 [0. 21]

]

[

Chapter 2 Installation and Wiring|VFD-S Series

129.0 [5.08]

73.0 [2.88]

]

3 .6 0

[ 0

. 6 1

5.5 [0.22]

Revision August 2006, SE08, SW V2.61 2-13

67 .8 [2.67]

5.5 [0.22]

]

4 .0 0

[ 0

. 1

53 .5 [2.1 1 ]

]

8 .3 0

[ 5

. 9

] 6 .2 0

[ 5

. 6

Chapter 2 Installation and Wiring|VFD-S Series

Frame S2: VFD015S21D, VFD015S21E, VFD015S43D, VFD015S43E, VFD022S21D, VFD022S21E, VFD022S23D, VFD022S43D, VFD022S43E

100.0 [3.94]

86.5 [3.41 ]

5.4 [0.21] 12 9. 3 [5. 09]

8.5 [0.33]

]

[

] 4 .0 0

[ 0

. 1

5.5 [0.22]

2-14 Revision August 2006, SE08, SW V2.61

5.5 [0.22]

]

7 .3 0

[ 5

. 9

] 6 .2 0

[ 5

. 6

Chapter 2 Installation and Wiring|VFD-S Series

Frame S2: VFD015S21U, VFD015S43U, VFD022S21U, VFD022S43U

100.0 [3.94]

129.3 [5.09]5.4 [0.21]

86.5 [3 .41]

173.0 [6.82]

186.0 [7.33]

8.5 [0.33]

73.0 [2.88]

67.8 [2.67] 53.9 [2 .12]

16.0 [0.63] 5 .5 [0.22]

1.0 [0.04]

6.5 [0.26]

5.5 [0.22]

9.5 [0.37]

Revision August 2006, SE08, SW V2.61 2-15

Chapter 2 Installation and Wiring|VFD-S Series

2.4 Wiring

After removing the front cover, check if the power and control terminals are clear of debris. Be sure to observe the following precautions when wiring.

General Wiring Information



Applicable Codes

All VFD-S series are Underwriters Laboratories, Inc. (UL) and Canadian Underwriters Laboratories (cUL) listed, and therefore comply with the requirements of the National Electrical Code (NEC) and the Canadian Electrical Code (CEC).

Installation intended to meet the UL and cUL requirements must follow the instructions provided in “Wiring Notes” as a minimum standard. Follow all local codes that exceed UL and cUL requirements. Refer to the technical data label affixed to the AC motor drive and the motor nameplate for electrical data.

The "Line Fuse Specification" in Appendix B, lists the recommended fuse part number for each S-Series part number. These fuses (or equivalent) must be used on all installations where compliance with U.L. standards is a required.

2-16 Revision August 2006, SE08, SW V2.61

Chapter 2 Installation and Wiring|VFD-S Series

2.4.1 Basic Wiring

Make sure that power is only applied to the R/L1, S/L2, T/L3 terminals. Failure to comply



may result in damage to the equipment. The voltage and current should lie within the range as indicated on the nameplate. Check the following items after completing the wiring:



1. Are all connections correct?

2. No loose wires?

3. No short-circuits between terminals or to ground?

A charge may still remain in the DC bus capacitors with hazardous voltages even if the power has been turned off. To prevent personal injury, please ensure that the power is turned off and wait ten minutes for the capacitors to discharge to safe voltage levels before opening the AC motor drive.

DANGER!

1. All the units must be grounded directly to a common ground terminal to prevent electric shock, fire and interference.

2. Only qualified personnel familiar with AC motor drives are allowed to perform installation, wiring and commissioning.

3. Make sure that the power is off before doing any wiring to prevent electric shocks.

Basic Wiring Diagrams

Users must connect wires according to the circuit diagrams on the following pages. Do not plug a modem or telephone line to the RS-485 communication port or permanent damage may result. Terminals 1 & 2 are the power supply for the optional copy keypad only and should not be used for RS-485 communication.

Revision August 2006, SE08, SW V2.61 2-17

Chapter 2 Installation and Wiring|VFD-S Series

For VFDXXXSXXA/B/D/U

Main Circuit Power

NFB

R/L1 S/L2 T/L3

Recommended Circuit when power supply is turned OFF by a fault output

OFF

E R/L1

S/L2 T/L3

17V

4.7k

17V

4.7k

17V

4.7k

17V

4.7k

17V

4.7k

17V

4.7k

47K

17V

Grounding resistance less than 100

2-18 Revision August 2006, SE08, SW V2.61

For VFDXXXSXXE

NPN (sink mode)

Main Circuit Power

NFB

R/L1 S/L2 T/L3

Recommended Circuit when power supply is turned OFF by a fault output

Analog voltage

010VDC

Potenti om et er

3K 5K～～Ω

Analog current

Factory default: output freq. (Pot.) determined by the Potentiometer on the control panel.

Main circuit (power) terminals

OFF

Factory de fault Forward/Stop Reverse/St o p

Reset Multi-step 1 Multi-step 2

Multi-step 3

Comm. signal (sink)

Pot.

NOTE: Do not plug in a Modem or tel ephone line to the RS-485 communication port, permanent damage may result. Terminal 1 & 2 are the power sources for the optional copy keypad and should not be used while using RS-485 commu nication.

* If it is single phase model, please select any of the two input power

terminals in main circuit power.

Chapter 2 Installation and Wiring|VFD-S Series

Jumper

R/L1 S/L2 T/L3

17V

M1 M2

M3 M4 M5 GND

+10V 10mA (MAX)

AVI

250

GND

Control circui t ter minals

Brakin g resistor (optional)

+2/B1

+17V

CPU

2.4

47K

11V

NPN PNP

47K

ΩΩ

120W, 200 120W

400 120W

AC Motor

Potentiom et er ( 1K )

Factory de fault: indicate output frequency

Multi-function indication output contacts below 120VA C /2 4VD C 5A

Factory default: indicates malfunction

Multi-function Photocoupler output below 48VDC 50mA

Factory de fau lt: Indicates during operation

RJ-11 communication port with RS-485 serial interface 1:17

V 2:GND 3:SG4:SG+

Shielded leads

U/T1 V/T2

W/T3

GND

Mo1

MCM

RJ-11

select 80

E FM

←

Grounding resistance less than 10 0

Analog output DC 0 10V

～

Revision August 2006, SE08, SW V2.61 2-19

Chapter 2 Installation and Wiring|VFD-S Series

For VFDXXXSXXE PNP (source mode)

Jumper

Main Circuit Power

NFB

R/L1

S/L2

T/L3

Recommended Circuit when power supply is turned OFF by a fault output

Analog voltage

010VDC

～

Potentiometer

3K 5K

Analog current

Factory default: output freq. (Pot.) determined by the Potentiometer on the control panel.

Main circuit (power) terminals

OFF

Common signal (sou rc e)

Forward/ St o p Reverse/ S t op

Reset Multi-step 1 Multi-step 2

Multi-step 3

Pot.

～Ω

NOTE: Do not plug in a Modem or telephone line to the RS-485 communication port, permanent damage may result. Terminal 1 & 2 are the power sou rces for the optional copy keypad and should not be used while using RS-485 communication.

* If it is single phase model, please select any of the two input power terminals in main circuit power.

E R/L1

S/L2 T/L3

RB RC

17V 20mA

M0 M1 M2

M3 M4 M5 GND

+10V 10mA (MAX)

AVI

250

GND

Control ci rcuit terminals

Braking resistor (optional)

+2/B1

+17V

CPU

2.4

47K

11V

NPN PNP

47K

ΩΩ

120W, 200 120W

400 120W

AC Motor

Potentiometer(1K )

Factory de fau lt: indicate

output frequency

Multi-function indication output contacts below 120V A C/24VDC 5A

Factory de fau lt: indicates malfunction

Multi-function Photocoupler output below 48VDC 50mA

Factory default: Indicates during operation

RJ-11 communication port with RS-485 serial interface 1:17

V 2:GND 3:SG4:SG+

Shielded leads

U/T1 V/T2

W/T3

GND

RA RB

Mo1

MCM

RJ-11

select 80

E FM

←

Grounding resistance less than 100

Analog output

DC 0 10V

～

2-20 Revision August 2006, SE08, SW V2.61

2.4.2 External Wiring

Power Supply

EMI Filter

R/L1 S/L2

U/T1 V/T2

T/L3

W/T3

Motor

FUSE/NFB

Magnetic contactor

Input A C Line Reactor

Zero-phase Reactor

+2/B1

Zero-phase Reactor

Output AC Line Reactor

DC Choke

Braking Resistor

Chapter 2 Installation and Wiring|VFD-S Series

Items Explanations

Power supply

Please follow the specific power supply requirements shown in Appendix A.

There may be an inrush current

Fuse/NFB (Optional)

during power up. Please check the chart of Appendix B and select the correct fuse with rated current. Use of an NFB is optional.

Magnetic contactor (Optional)

Please do not use a Magnetic contactor as the I/O switch of the AC motor drive, as it will reduce the operating life cycle of the AC drive.

Used to improve the input power factor, to reduce harmonics and provide protection from AC line

Input AC Line Reactor (Optional)

disturbances. spikes, short interruptions, etc.). AC line reactor should be installed when the power supply capacity is 500kVA

(surges, switching

or more and exceeds 6 times the inverter capacity, or the mains wiring distance

10m.

≤

Zero phase reactors are used to

Zero-phase Reactor (Ferrite Core Common Choke) (Optional)

reduce radio noise especially when audio equipment is installed near the inverter. Effective for noise reduction on both the input and output sides. Attenuation quality is good for a wide range from AM band to 10MHz. Appendix B specifies the zero phase reactor. (RF220X00A)

EMI filter (Optional)

Brake resistor (Optional)

To reduce electromagnetic interference, please refer to Appendix B for more details.

Used to reduce the deceleration time of the motor. Please refer to the chart in Appendix B for specific brake resistors.

Output AC Line Reactor (Optional)

Revision August 2006, SE08, SW V2.61 2-21

Motor surge voltage amplitude depends on motor cable length. For applications with long motor cable (>20m), it is necessary to install a reactor at the inverter out

ut side.

Chapter 2 Installation and Wiring|VFD-S Series

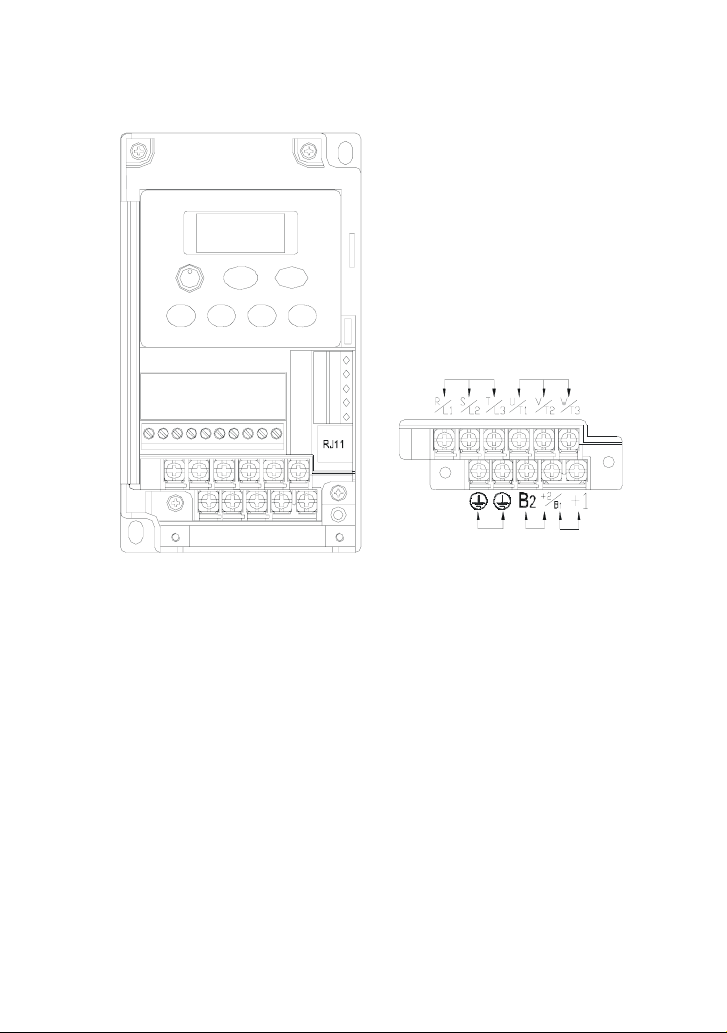

2.4.3 Main Terminals Connections

Terminal Symbol Explanation of Terminal Function

R/L1, S/L2, T/L3 AC line input terminals (3-phase)

L/L1, N/L2 AC line input terminals (1-phase)

U/T1, V/T2, W/T3

+2/B1, B2 Connections for Brake resistor (optional)

+2/B1, +1 Connections for DC Link Reactor (optional)

Mains power terminals (R/L1, S/L2, T/L3 and L/L1, N/L2)

Connect these terminals via a non-fuse breaker or earth leakage breaker to 3-phase AC



power (some models to 1-phase AC power) for circuit protection. It is unnecessary to consider phase-sequence. It is recommended to add a magnetic contactor (MC) in the power input wiring to cut off



power quickly and reduce malfunction when activating the protection function of AC motor drives. Both ends of the MC should have an R-C surge absorber. Do NOT run/stop AC motor drives by turning the power ON/OFF. Run/stop AC motor



drives by RUN/STOP command via control terminals or keypad. If you still need to run/stop AC drives by turning power ON/OFF, it is recommended to do so only ONCE per hour. Do NOT connect 3-phase models to a 1-phase power source.



Control circuit terminals (U/T1, V/T2, W/T3)

When the AC drive output terminals U/T1, V/T2, and W/T3 are connected to the motor



terminals U/T1, V/T2, and W/T3, respectively, the motor will rotate counterclockwise (as viewed on the shaft end of the motor) when a forward operation command is received. To permanently reverse the direction of motor rotation, switch over any of the two motor leads.

AC drive output terminals for connecting 3-phase induction motor

Earth connection, please comply with local regulations.

Forward running

2-22 Revision August 2006, SE08, SW V2.61

DO NOT connect phase-compensation capacitors or surge absorbers at the output



terminals of AC motor drives. With long motor cables, high capacitive switching current peaks can cause over-current,



high leakage current or lower current readout accuracy. To prevent this, the motor cable should be less than 20m for 3.7kW models and below. And the cable should be less than 50m for 5.5kW models and above. For longer motor cables use an AC output reactor. Use a well-insulated motor, suitable for inverter operation.



Terminals [+2/B1, +1] for connecting DC reactor

This is the connector for the DC reactor to improve the power factor. Please remove the



short jumper when connecting DC reactor.

Terminals [+2/B1, B2] for connecting brake resistor

Chapter 2 Installation and Wiring|VFD-S Series

+2/B1

Connect a brake resistor in applications with frequent deceleration ramps, short



deceleration time, too low braking torque or requiring increased braking torque. When not used, please leave the terminals [+2/B1, B2] open.



WARNING!

Short-circuiting [+2/B1, B2] can damage the AC motor drive.

Grounding terminals (

Make sure that the leads are connected correctly and the AC drive is properly grounded.



)

(Ground resistance should not exceed 0.1Ω.) Use ground leads that comply with local regulations and keep them as short as possible.



Multiple VFD-S units can be installed in one location. All the units should be grounded



directly to a common ground terminal, as shown in the figure below. Ensure there are no ground loops.

goodexcellent

not allowed

Revision August 2006, SE08, SW V2.61 2-23

Chapter 2 Installation and Wiring|VFD-S Series

)

2.4.4 Control Terminals

Control Terminal Wiring (Factory Setting)

A. XXXSXXA/B/D/U

AVI

AFM

10V

Operation freq. setting

potentiometer

VR : 3K~5K

Corrector potentiometer VR : 1K~5K

Freq. meter 0~10 VDC Full scale voltmeter

B. XXXSXXE

M0M4M2 M3M5GND

Multi-step speed 2

Multi-step speed 1

Reset

Reverse/Stop

Forward/Stop

Multi-step speed 3

Relay contactor output

Factory setting : Fault indication

RC MO1 MCM

Photo coupler output Factory setting : in work

RJ11

RS485 Communication port

6 ~ 1

Wire Gauge: 24-12 AWG Wire Type: Copper Only Tor

ue: 4 kgf-cm (3.5 in-lbf

Multi-step speed 3

Wire Gauge: 24-16 AWG Wire Type: Copper Only Torque: 2 kgf-cm (1.7 in-lbf)

Terminal symbols and functions

Terminal

Symbol

Terminal Function

M0 Multi-function auxiliary input M1 Multi-function input 1

Factory Settings (NPN mode)

ON: Connect to GND

Refer to Pr.4-04 to Pr.4-08 for programming the Multi-function Inputs. ON: the activation current is 16mA. OFF: leakage current tolerance is 10μA.

M2 Multi-function input 2 M3 Multi-function input 3

2-24 Revision August 2006, SE08, SW V2.61

Chapter 2 Installation and Wiring|VFD-S Series

Terminal

Symbol

Terminal Function

M4 Multi-function input 4

Factory Settings (NPN mode)

ON: Connect to GND

M5 Multi-function Input 5

+17V DC Voltage Source +17VDC, 20mA used for PNP mode.

GND Digital Signal Common

Common for digital inputs and used for NPN mode.

AFM circuit

AFM Analog output meter

Internal Circuit

Multi-function Relay output

(N.O.) a

Multi-function Relay output

(N.C.) b

Resistive Load: 5A(N.O.)/3A(N.C.) 240VAC 5A(N.O.)/3A(N.C.) 24VDC Inductive Load:

1.5A(N.O.)/0.5A(N.C.) 240VAC

1.5A(N.O.)/0.5A(N.C.) 24VDC

RC Multi-function Relay common

Refer to Pr.3-06 for programming

Maximum 48VDC, 50mA Refer to Pr.3-01 for programming

MO1-DCM

Multi-function Output 1

MO1

(Photocoupler)

internal circuit

MCM Multi-function output common Max. 48Vdc 50mA

Mo1

MCM

GND

Max: 48Vdc

50mA

0~10V

ondometer

Max. 2mA

+10V Potentiometer power supply +10VDC 10mA (variable resistor: 3~5kohm)

Revision August 2006, SE08, SW V2.61 2-25

Chapter 2 Installation and Wiring|VFD-S Series

Terminal

Symbol

Terminal Function

Factory Settings (NPN mode)

ON: Connect to GND

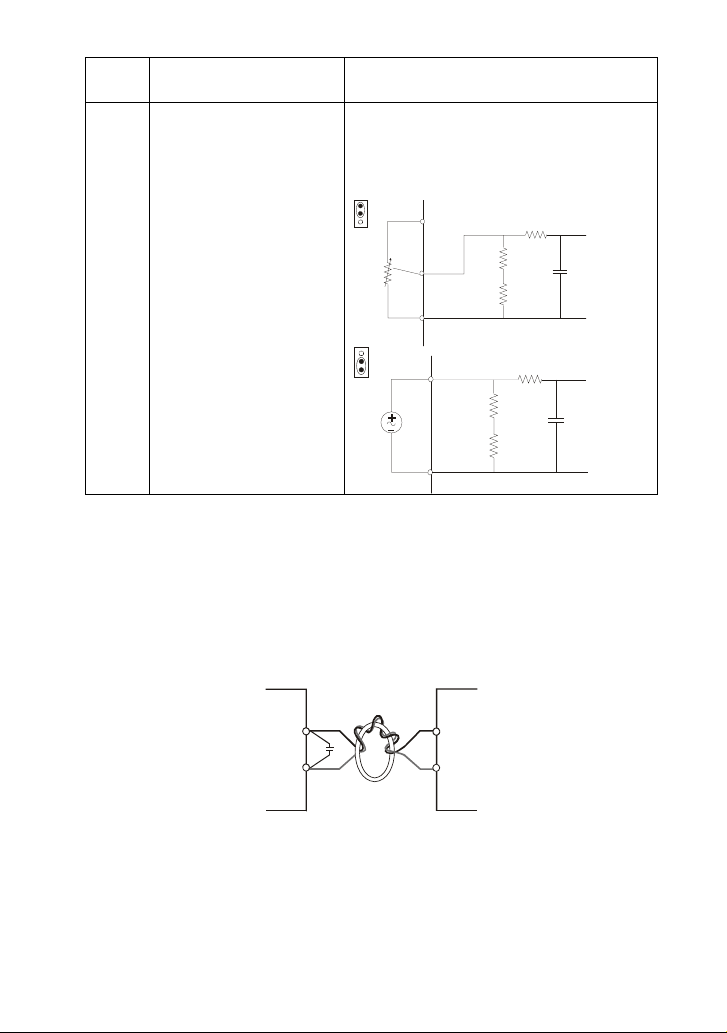

0~+10V/4-20mA corresponds to 0-max. operation frequency (Pr.01-00)

PID feedback signal AVI input impedance: 100kohm ACI input impedance: 250kohm

AVI ACI

+10V

AVI circuit

Analog voltage Input (AVI/ACI)

AVI

AVI ACI

GND

ACI

GND

Control signal wiring size: 18 AWG (0.75 mm2) with shielded wire.

Analog input terminals (AVI, GND)

Analog input signals are easily affected by external noise. Use shielded wiring and keep



it as short as possible (<20m) with proper grounding. If the noise is inductive, connecting the shield to terminal GND can bring improvement. If the analog input signals are affected by noise from the AC motor drive, please connect



a capacitor (0.1μF and above) and ferrite core as indicated in the following diagrams:

ferrite core

wind each wires 3 times or more ar ound the cor e

Digital inputs (M0~M5, GND)

When using contacts or switches to control the digital inputs, please use high quality



components to avoid contact bounce.

Internal Circuit

ACI circuit

Internal Circuit

AVI

GND

2-26 Revision August 2006, SE08, SW V2.61

Digital outputs (MO1, MCM)

Make sure to connect the digital outputs to the right polarity, see wiring diagrams.



When connecting a relay to the digital outputs, connect a surge absorber or fly-back



diode across the coil and check the polarity.

General

Keep control wiring as far as possible from the power wiring and in separate conduits to



avoid interference. If necessary let them cross only at 90º angle. The AC motor drive control wiring should be properly installed and not touch any live



power wiring or terminals.

NOTE

If a filter is required for reducing EMI (Electro Magnetic Interference), install it as close as



possible to AC drive. EMI can also be reduced by lowering the Carrier Frequency. When using a GFCI (Ground Fault Circuit Interrupter), select a current sensor with



sensitivity of 200mA, and not less than 0.1-second detection time to avoid nuisance tripping.

Chapter 2 Installation and Wiring|VFD-S Series

DANGER!

Damaged insulation of wiring may cause personal injury or damage to circuits/equipment if it comes in contact with high voltage.

Revision August 2006, SE08, SW V2.61 2-27

Chapter 2 Installation and Wiring|VFD-S Series

2.4.5 Main Circuit Terminals

VFD002S11A/11B, VFD004S11A/11B

Power terminal

AC Input Line Terminal

Motor

Connection

Ground Brak ing Resistor

Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75

2-28 Revision August 2006, SE08, SW V2.61

)

Chapter 2 Installation and Wiring|VFD-S Series

VFD002S21B/23A, VFD004S21B/23A/43A/43B/43E, VFD007S21B/23A/43A/43B/43E, VFD015S23D

Power terminal

Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75

AC Input Line Ter minal

)

Motor

Connection

Brak i ng

Ground DC Reacto r

Resistor

Revision August 2006, SE08, SW V2.61 2-29

Chapter 2 Installation and Wiring|VFD-S Series

VFD002S21A/E, VFD004S21A/E, VFD007S21A/E

Power Terminal: Torque: 12 kgf-cm (10 lbf-in) Wire Gauge: 14-20 AWG (2.1-0.5mm Wire Type: Copper only, 75

)

Power terminal

AC Input Line Ter minal

Groun d

Motor

Connection

Brak ing Resistor

DC Reactor

2-30 Revision August 2006, SE08, SW V2.61

VFD007S11A/B

Chapter 2 Installation and Wiring|VFD-S Series

Power terminal

AC Input Line Terminal

Motor

Connection

Brak ing Resi storGround

Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75

Revision August 2006, SE08, SW V2.61 2-31

)

Chapter 2 Installation and Wiring|VFD-S Series

VFD015S21U/43D/43E/43U, VFD022S21U/23D/43D/43E/43U

AC Input Line Termina l

Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75

)

Power terminal

Motor

Connection

Braking Resistor

DC Reactor

Ground

2-32 Revision August 2006, SE08, SW V2.61

VFD015S21D/E, VFD022S21D/E

Power Terminal: Torque: 20 kgf-cm (17.4 lbf-in) Wire Gauge: 10-18 AWG (5.3-0.8mm Wire Type: stranded copper only, 75

Chapter 2 Installation and Wiring|VFD-S Series

Power terminal

AC Input Line Termina l

)

Braking Resistor

Motor

Connection

DC ReactorGround

Revision August 2006, SE08, SW V2.61 2-33

Chapter 2 Installation and Wiring|VFD-S Series

This page intentionally left blank

2-34 Revision August 2006, SE08, SW V2.61

3.1 Preparations before Start-up

Carefully check the following items before proceeding.

Make sure that the wiring is correct. In particular, check that the output terminals U/T1,



V/T2, W/T3 are NOT connected to power and that the drive is well grounded. Verify that there are no short-circuits between terminals and from terminals to ground or



mains power. Check for loose terminals, connectors or screws.



Verify that no other equipment is connected to the AC motor.



Make sure that all switches are OFF before applying power to ensure that the AC motor



drive doesn’t start running and there is no abnormal operation after applying power. Make sure that the front cover is correctly installed before applying power.



Do NOT operate the AC motor drive with humid hands.



Check the following items after applying power: The display without digital keypad should



be as following.

-The keypad should light up as follows (normal status with no error)

Chapter 3 Start Up

RUN FWD REV

STOP

When power is ON, LEDs “STOP” and “FWD”

STOP/RESET

MIN. MAX.

MODE

RUN

PROG

DATA

- If the drive has built-in fan, it should run.

Revision August 2006, SE08, SW V2.61 3-1

should light up. The display will show “F60.0”.

Chapter 3 Start Up| VFD-S Series

3.2 Operation Method

Refer to 4.2 How to operate the digital keypad and chapter 5 parameters for setting. Please choose a suitable method depending on application and operation rule. The operation is usually done as shown in the following table.

Operation Method Frequency Source

Keypad

MI2

Operate from

external signal

MI3 GND

AVI, ACI

Parameter

setting: 4-05=10 4-06=11

Operation Command

Source

STOP/RESET

RUN

External terminals

input: M0-GND M1-GND

3.3 Trial Run

After finishing checking the items in “3.1 preparation before start-up”, you can perform a trial run.

1. After applying power, verify that the display shows “F60.0”.

2. Setting frequency to about 5Hz by using

3. Pressing

should press

press

4. Check following items:

If the results of trial run are normal, please start the formal run.

RUN

key for forward running. And if you want to change to reverse running, you

key in page. And if you want to decelerate to stop, please

STOP/RESET

key.

 Check if the motor direction of rotation is correct.  Check if the motor runs steadily without abnormal noise and vibration.  Check if acceleration and deceleration are smooth.

key.

3-2 Revision August 2006, SE08, SW V2.61

Chapter 3 Start Up| VFD-S Series

NOTE

1. Stop running immediately if any fault occurs and refer to the troubleshooting guide for solving the problem.

2. Do NOT touch output terminals U/T1, V/T2, W/T3 when power is still applied to R/L1, S/L2, T/L3 even when the AC motor drive has stopped. The DC-link capacitors may still be charged to hazardous voltage levels, even if the power has been turned off.

3. To avoid damage to components, do not touch them or the circuit boards with metal objects or your bare hands.

Revision August 2006, SE08, SW V2.61 3-3

Chapter 3 Start Up| VFD-S Series

This page intentionally left blank

3-4 Revision August 2006, SE08, SW V2.61

Chapter 4 Digital Keypad Operation

4.1 Description of the Digital Keypad

LED indication Light during RUN, STOP , FW D and REV operation.

Potentiometer for frequenc y setti ng . Could be the Master Frequency input by setting Pr.2-00.

Mode Key Change between different display modes.

4.2 Explanation of LED Indicators

RUN FWD REV

MIN. MAX.

RUN

MODE

Stop AC drive when STOP button has been pressed.

RUN

FWD

REV

REV LED lights during reverse operation. FWD LED lights during forward operation.

RUN LED lights during RUN operation.

STOP/RESET

STOP

PROG

DATA

LED Display Indicate frequency, motor parameter setting value and alarm contents.

RUN Key Start inverter drive operation.

STOP/RESET Key Stop inverter drive operation and reset the inverter after faults occurred.

PROG/DATA Key Set the different parameters and enter information.

UP and DOWN Key Sets the parameter number or changes the numerical data such as the freq. reference.

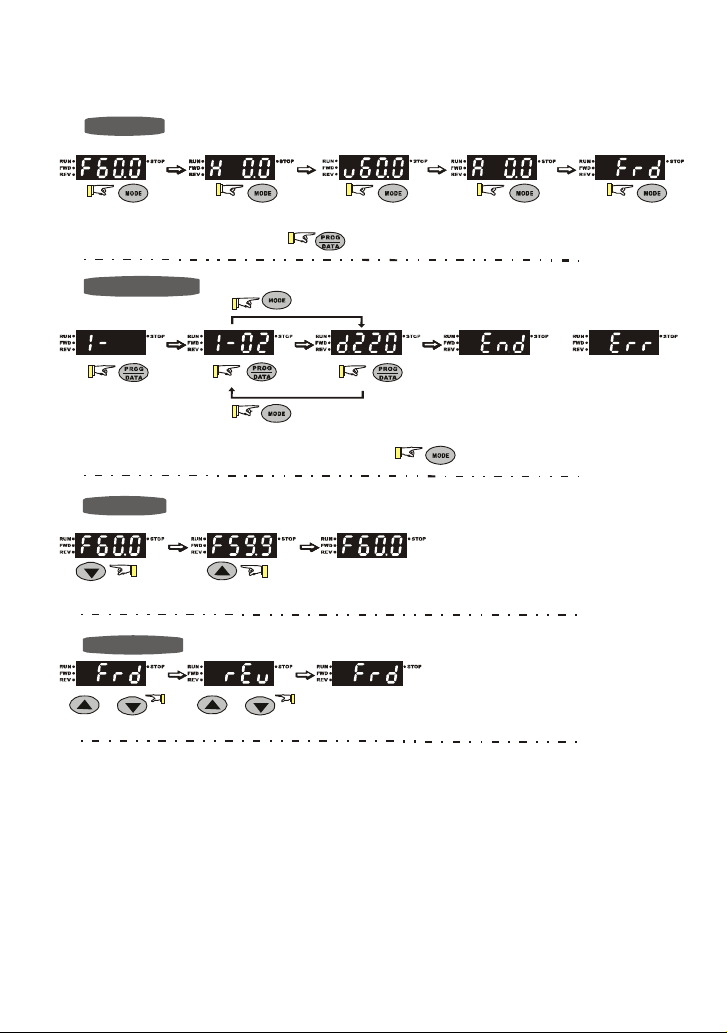

4.3 Explanations of Display Messages

Display Message Descriptions

Displays the AC drive Master Frequency.

Displays the actual output frequency at terminals U/T1, V/T2, and W/T3.

User defined unit (where U = F x Pr.00.05)

Displays the output current at terminals U/T1, V/T2, and W/T3.

Revision August 2006, SE08, SW V2.61 4-1

Chapter 4 Digital Keypad Operation|VFD-S Series

Display Message Descriptions

The internal PLC process step currently being performed.

Displays the DC-BUS voltage

Displays the output voltage

Displays the AC motor drive forward run status.

Displays the AC motor drive reverse run status.

The counter value (C).

Displays the selected group.

Displays the selected parameter.

Displays the actual stored value of the selected parameter.

Display “End” for approximately 0.5 second if input has been. After a parameter value has been set, the new value is automatically stored in

memory. To modify an entry, use the

Display “Err”, if the input is invalid.

keys.

4-2 Revision August 2006, SE08, SW V2.61

4.4 How to Operate the Digital Keypad

Setting Mode

START

Chapter 4 Digital Keypad Operation|VFD-S Series

In the selection mode, press

Note

：

Setting parameters

NOTE

：

In the parameter setting mode, you can p re ss

To shift data

START

Setting direction

(When operation source is digital keypad)

to set the parameters.

move down to the previous display

Success to set parameter.

move up to the previous display

to return the selecting mode.

GO START

Input da ta error

Revision August 2006, SE08, SW V2.61 4-3

Chapter 4 Digital Keypad Operation|VFD-S Series

This page intentionally left blank

4-4 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters

The VFD-S parameters are divided into 11 groups by property for easy setting. In most applications, the user can finish all parameter settings before start-up without the need for re-adjustment during operation.

The 11 groups are as follows:

Group 0: User Parameters Group 1: Basic Parameters Group 2: Operation Method Parameters Group 3: Output Function Parameters Group 4: Input Function Parameters Group 5: Multi-Step Speed and PLC Parameters Group 6: Protection Parameters Group 7: Motor Parameters Group 8: Special Parameters Group 9: Communication Parameters Group A: PID Parameters

Revision August 2006, SE08, SW V2.61 5-1

Chapter 5 Parameters|VFD-S Series

5.1 Summary of Parameter Settings

: The parameter can be set during operation.

Group 0 User Parameters

Factory

Pr. Explanation Settings

0-00 Identity Code of the AC Motor Drive Read-only d # 0-01 Rated Current Display of the AC

Read-only d##.#

Motor Drive

0-02 Parameter Reset d09: All parameters are reset to

factory settings (50Hz, 220V/380V)

d10: All parameters are reset to

factory settings (60Hz, 220V/440V)

d0: Display the frequency command

value (LED F)

d1: Display the actual output

frequency (LED H)

0-03 Start-up Display Selection

d2: Multifunction display, see Pr.00-

04 d3: Display output current (LED A) d4: Display forward/reverse

command (Frd/rEv) d0: Display User-Defined Unit (u) d1: Display Counter Value (C)

0-04 Content of Multi-Function Display

d2: Display Process Operation (1.tt) d3: Display DC-BUS Voltage ( d4: Display output voltage (E)

)

d5: Display frequency commands of

PID (P) d6: Display analog feedback signal

value (b) (%)

0-05 User-Defined Coefficient K d0.1 to d160 d1.0

0-06 Software Version Read-only d#.# 0-07 Password Input d0 to d999 d0 0-08 Password Set d0 to d999 d0

0-09 Memory Mode Selections d0 to d63 d8

NOTE

Setting

Group 1 Basic Parameters

Factory

Pr. Explanation Settings

1-00 Maximum Output Frequency (Fmax) d50.0 to d400 Hz d60.0

Setting

NOTE

1-01 Maximum Voltage Frequency (Fbase) d10.0 to d400 Hz d60.0 1-02 Maximum Output Voltage (Vmax)

230V series: d2.0V to d255V d220 460V series: d4.0V to d510V d440

1-03 Mid-Point Frequency (Fmid) d1.0 to d400 Hz d1.0 1-04 Mid-Point Voltage (Vmid) 230V series: d2.0V to d255V d12

5-2 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Factory

Pr. Explanation Settings

Setting

NOTE

460V series: d4.0V to d510V d24

1-05 Minimum Output Frequency (Fmin) d1.0 to d60.0 Hz d1.0

Minimum Output Voltage (Vmin)

1-06

230V series: d2.0V to d255V d12.0 460V series: d4.0V to d510V d24.0

1-07 Output Frequency Upper Limit d1 to d110% d100 1-08 Output Frequency Lower Limit d0 to d100% d0

1-09 Accel Time 1 d0.1 to d600 Sec d10.0 1-10 Decel Time 1 d0.1 to d600 Sec d10.0 1-11 Accel Time 2 d0.1 to d600 Sec d10.0 1-12 Decel Time 2 d0.1 to d600 Sec d10.0 1-13 Jog Acceleration / Deceleration Time d0.1 to d600 Sec d10.0 1-14 Jog Frequency d1.0 Hz to d400 Hz d6.0

d0: Linear Accel/Decel d1: Auto Accel, Linear Decel d2: Linear Accel, Auto Decel

Auto acceleration / deceleration (refer

1-15

to Accel/Decel time setting)

d3: Auto Accel/Decel (Set by load) d4: Linear Accel; Auto Decel, Stall

Prevention during Decel

d5: Auto Accel/Decel, Stall

Prevention during Decel

1-16 Acceleration S-Curve d0 to d7 d0 1-17 Deceleration S-Curve d0 to d7 d0

d0.0 Jog Decelerating Time

1-18 Jog Decelerating Time

Determined by Pr.1-13

d0.0

d0.1 to d600

Group 2 Operation Method Parameters

Factory

Pr. Explanation Settings

Setting

NOTE

d0: Master Frequency input

determined by digital keypad. (record the frequency of power loss and it can do analog overlap plus)

d1: Master Frequency determined

by analog signal DC 0V-10V (external terminal AVI). (won’t record the frequency of power loss and it can’t do analog

Source of Master Frequency

2-00

Command

overlap plus)

d2: Master Frequency determined

by analog signal DC 4mA 20mA (external terminal AVI). (won’t record the frequency of power loss and it can’t do analog overlap plus)

d3: Master Frequency determined

by Potentiometer on the digital keypad. (won’t record the frequency of power loss and it can do analog overlap plus)

Revision August 2006, SE08, SW V2.61 5-3

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

d4: Master Frequency operated by

RS-485 serial communication interface and record frequency of power loss. (record the frequency of power loss and it

Source of Master Frequency

2-00

Command

can do analog overlap plus)

d5: Master Frequency operated by

RS-485 serial communication interface and won’t record frequency before power loss. (won’t record the frequency of power loss and it can do analog

overlap plus) d0: Digital Keypad d1: External terminals. Keypad

STOP/RESET enabled. d2: External terminals. Keypad

Source of Operation

2-01

Command

STOP/RESET disabled. d3: RS-485 serial communication

(RJ-11) .Keypad STOP/RESET

enabled. d4: RS-485 serial communication

(RJ-11). Keypad STOP/RESET

disabled. d0: STOP: ramp to stop; E.F.: coast

2-02 Stop Method

to stop d1: STOP: coast to stop; E.F.: coast

to stop d3: 3KHz d4: 4KHz d5: 5KHz

2-03 PW M Carrier Frequency Selections

d6: 6KHz d7: 7KHz d8: 8KHz d9: 9KHz d10: 10KHz

d0: Enable forward/reverse

2-04 Motor Direction Control

operation d1: Disable reverse operation d0: Decelerate to 0 Hz

2-05 Loss of ACI Signal

d1: Coast to stop and display “EF” d2: Continue operation by last

frequency command d0: Disable

2-06 Analog Auxiliary Frequency Operation

d1: Enable + AVI d2: Enable + ACI

Group 3 Output Function Parameters

Factory

Setting

d10

NOTE

5-4 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Factory

Pr. Explanation Settings

3-00 Analog Output Signal

d0: analog frequency meter d1: analog current meter

Setting

NOTE

3-01 Analog Output Gain d1 to d200% d100

3-02 Desired Frequency Attained d1.0 to d400 Hz d1.0

3-03 Terminal Count Value d0 to d999 d0 3-04 Preliminary Count Value d0 to d999 d0

Multi-Function Output Terminal 1

3-05

(Photocoupler Output)

d0: No Function d1 d1: AC Drive Operational

d2: Master Frequency Attained d3: Zero Speed d4: Over Torque Detection d5: Base-Block (B.B.) Indication d6: Low-Voltage Indication d7: Operation Mode Indication d8: Fault Indication

Multi-Function Output Terminal 2

3-06

(Relay Output)

d9: Desired Frequency Attained d10: PLC Program Running d11: PLC Program Step Completed

d12: PLC Program Completed d13: PLC Program Operation

Paused d14: Terminal Count Value Attained d15: Preliminary Count Value

Attained d16: AC Motor Drive Ready d17: FWD command Indication d18: REV command Indication

Group 4 Input Function Parameters

Factory

Pr. Explanation Settings

Setting

NOTE

4-00 Potentiometer Bias Frequency d 0.0 to d 100.0% d0.0

Potentiometer Bias

4-01

Polarity Potentiometer

4-02

Frequency Gain Potentiometer Reverse

4-03

Motion Enable

d0: Positive Bias d1: Negative Bias

d1 to d200 % d100 d0: Forward Motion Only

d1: Reverse Motion enabled

d0: No Function d1: FWD/STOP, REV/STOP d2: FWD/REV, RUN/STOP d3: 3-wire Operation Control Mode

Multi-Function Input Terminal 1 (M0,

4-04

M1)

d4: E.F. External Fault Input (N.O.) d5: E.F. External Fault Input (N.C.)

d6: Reset d7: Multi-Step Speed Command 1 d8: Multi-Step Speed Command 2 d9: Multi-Step Speed Command 3

Revision August 2006, SE08, SW V2.61 5-5

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

Multi-Function Input Terminal 2 (M2) d10: Jog Operation

4-05

d11: Accel/decel Inhibit

Factory

Setting

Multi-Function Input Terminal 3 (M3) d12: First or Second

Acceleration/deceleration Time

4-06

Selection

d7 d13: External base block (N.O.) d14: External base block (N.C.)

Multi-Function Input Terminal 4 (M4) d15: Up: Increment master

frequency

4-07

d16: Down: Decrement master

frequency

d8 d17: Run PLC Program

d18: Pause PLC Program d19: Counter Trigger Signal d20: Counter Reset d21: Select ACI / Deselect AVI d22: PID Function Disabled d23: JOG FWD d24: JOG REV d25: The source of master

4-08 Multi-Function Input Terminal 5(M5)

frequency is AVI.

d26: The source of master

frequency is ACI.

d27: Press UP/DOWN key to switch

forward/reverse (N.O.) motion

d28: Press UP/DOWN key to switch

forward/reverse (N.C.) motion

d29: M0: 0: RUN 1: STOP, M1: no

function, Direction is controlled by keypad

4-09 Line Start Lockout

d0: Disable d1: Enable

d0 d0: Based on accel/decel time

d1: Up frequency according to

constant speed, down frequency

4-10 Up/Down Mode

according to deceleration time

d2: Up frequency according to

acceleration time, down frequenc according to constant speed

d3: Constant speed

Accel/Decel Rate of Change of

4-11

UP/DOWN Operation with Constant

0~1000, unit: 5 Hz/sec d1

Speed

Group 5 Multi-Step Speed and PLC Parameters

Pr. Explanation Settings

Factory

Setting

5-00 1st Step Speed Freq. d0.0 to d400 Hz d0.0 5-01 2nd Step Speed Freq. d0.0 to d400 Hz d0.0

NOTE

5-6 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

Factory

Setting

5-02 3rd Step Speed Freq. d0.0 to d400 Hz d0.0 5-03 4th Step Speed Freq. d0.0 to d400 Hz d0.0 5-04 5th Step Speed Freq. d0.0 to d400 Hz d0.0 5-05 6th Step Speed Freq. d0.0 to d400 Hz d0.0 5-06 7th Step Speed Freq. d0.0 to d400 Hz d0.0

d0: Disable PLC Operation d1: Execute one program cycle d2: Continuously execute program

cycles

d3: Execute one program cycle step

5-07 PLC Mode

by step

d4: Continuously execute one

program cycle step by step

d5: Disable PLC operation, but can

set direction of 1st speed to 7th

speed 5-08 PLC Forward/ Reverse Motion d0 to d255 (0: FWD 1: REV) d0 5-09 Time Duration of Zero Step Speed d0 to d65500 Sec d0 5-10 Time Duration of 1st Step Speed d0 to d65500 Sec d0 5-11 Time Duration of 2nd Step Speed d0 to d65500 Sec d0 5-12 Time Duration of 3rd Step Speed d0 to d65500 Sec d0 5-13 Time Duration of 4th Step Speed d0 to d65500 Sec d0 5-14 Time Duration of 5th Step Speed d0 to d65500 Sec d0 5-15 Time Duration of 6th Step Speed d0 to d65500 Sec d0 5-16 Time Duration of 7th Step Speed d0 to d65500 Sec d0

Group 6 Protection Parameters

Pr. Explanation Settings

6-00 Over-Voltage Stall Prevention

Over-Voltage Stall Prevention Level

6-01

d0: Disable d1: Enable 115V/230V series: d350 to d410V d390 460V series: d700 to d820V d780

Factory

Setting

6-02 Over-Current Stall Prevention Level d20 to d150% d130

d0: Disabled d1: Enabled during constant speed

operation. After the over-torque is detected, keep running until OL1 or OL occurs.

d2: Enabled during constant speed

6-03 Over-Torque Detection Mode

operation. After the over-torque is detected, stop running.

d3: Enabled during running and

continues before Continuous Output Time Limit (Pr.6-05) is reached

d4: Enabled during running. After

the over-torque is detected, stop running.

6-04 Over-Torque Detection Level d30 to d200% d150

NOTE

Revision August 2006, SE08, SW V2.61 5-7

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

Factory

Setting

6-05 Over-Torque Detection Time d0.1 to d10.0 Sec d0.1

Electronic Thermal Overload Relay

6-06

Selection Electronic Thermal

6-07

Characteristic Present Fault Record

6-08

d0 to d2 d2 d30 to d600 Sec d60

d0: No fault d1: Over current (oc) d2: Over voltage (ov) d3: Over heat (oH) d4: Over load (oL)

6-09 Second Most Recent Fault Record

d5: Over load (oL1) d6: External fault (EF) d7: Reserved d8: Reserved

d9: Excess current during

acceleration (ocA)

6-10 Third Most Recent Fault Record

d10: Excess current during

deceleration (ocd)

d11: Excess current during steady

state (ocn)

d13: Reserved

d12: Ground fault (GF)

d14: Low voltage (Lv) d15: CPU failure 1 (cF1) d16: CPU failure 2 (cF2) d17: Base block (b.b.) d18: Overload (oL2) d19: Auto acceleration/deceleration

failure (cFA)

d20: Software protection enable

(codE) d21: Reserved d22: CPU failure (cF3.1) d23: CPU failure (cF3.2) d24: CPU failure (cF3.3) d25: CPU failure (cF3.4) d26: CPU failure (cF3.5) d27: CPU failure (cF3.6) d28: CPU failure (cF3.7) d29: Hardware protection failure

(HPF.1) d30: Hardware protection failure

(HPF.2) d31: Hardware protection failure

(HPF.3) d32: Communication time-out

(CE10) d33: Reserved

d34: Software error (SErr) d35: Reserved d36: PID error (Pld)

d0 d37: Reserved d38: Phase loss (PHL)

NOTE

5-8 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Group 7 Motor Parameters

Factory

Pr. Explanation Settings

Setting

NOTE

7-00 Motor Rated Current d30 to d120% d85

Motor No-Load Current

7-01

Torque Compensation

7-02

d0 to d90% d50

d0 to d10 d1

7-03 Slip Compensation d0.0 to d10.0 d0.0

Group 8 Special Parameters

Factory

Pr. Explanation Settings

Setting

NOTE

8-00 DC Braking Voltage Level d0 to d30% d0 8-01 DC Braking Time during Start-Up d0.0 to d60.0 Sec d0.0 8-02 DC Braking time during Stopping d0.0 to d60.0 Sec d0.0 8-03 Start-Point for DC Braking d0.0 to d400 Hz d0.0

d0: Operation stops after

Momentary Power Loss

d1: Operation continues after

Momentary Power Loss Operation

8-04

Selection

momentary power loss, speed search starts with the Master Frequency reference value

d0 d2: Operation continues after

momentary power loss, speed search starts with the minimum

frequency 8-05 Maximum Allowable Power Loss Time d0.3 to d5.0 Sec d2.0 8-06 B.B. Time for Speed Search d0.3 to d5.0 Sec d0.5 8-07 Current Limit for Speed Search d30 to d200% d150 8-08 Skip Frequency 1 Upper Limit d0.0 to d400 Hz d0.0 8-09 Skip Frequency 1 Lower Limit d0.0 to d400 Hz d0.0 8-10 Skip Frequency 2 Upper Limit d0.0 to d400 Hz d0.0 8-11 Skip Frequency 2 Lower Limit d0.0 to d400 Hz d0.0 8-12 Skip Frequency 3 Upper Limit d0.0 to d400 Hz d0.0 8-13 Skip Frequency 3 Lower Limit d0.0 to d400 Hz d0.0 8-14 Auto Restart After Fault d0 to d10 d0

d0: Enable

8-15 AVR Function

d1: Disable

d2: Disable when deceleration

Software Braking Level

8-16

115V/230V series: d350 to d450V d380 460V series: d700 to d900V d760

8-17 DC Braking Lower Bound Limit d0.0 to d400 Hz d0.0

Group 9 Communication Parameters

Revision August 2006, SE08, SW V2.61 5-9

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

Communication

9-00

Address

9-01 Transmission Speed

d1 to d254 d1 d0: Baud Rate 4800 bps

d1: Baud Rate 9600 bps d2: Baud Rate 19200 bps

d3: Baud Rate 38400 bps d0: Warn and Keep Operating

Transmission Fault

9-02

Treatment

d1: Warn and Ramp to Stop d2: Warn and Coast to Stop d3: Keep Operating without Warning d0: Disable

9-03 Time-out Detection

d1 to d20: time setting (1 sec

increment)

d0: 7,N,2 (Modbus, ASCII) d1: 7,E,1 (Modbus, ASCII) d2: 7,O,1 (Modbus, ASCII)

9-04

Communication Protocol

d3: 8,N,2 (Modbus, ASCII) d4: 8,E,1 (Modbus, ASCII) d5: 8,O,1 (Modbus, ASCII) d6: 8,N,2 (Modbus, RTU) d7: 8,E,1 (Modbus, RTU) d8: 8,O,1 (Modbus, RTU)

Group A PID Parameters

Pr. Explanation Settings

d0: Disable PID function d1: Negative PID feedback from

external terminal (AVI) 0 to +10V

d2: Negative PID feedback from

A-00 Input terminal for PID Feedback

external terminal (ACI) 4 to 20mA

d3: Positive PID feedback from

external terminal (AVI) 0 to +10V

d4: Positive PID feedback from

external terminal (ACI) 4 to 20mA

A-01 Gain over PID Detection value d0 to d999 d100 A-02 Proportional Gain (P) d0 to d999 d100

A-03 Integral Time (I) d0 to d999 d100 A-04 Derivative Control (D) d0 to d100 d0

A-05 Upper Bound for Integral Control d0 to d100% d100

A-06 Primary Delay Filter Time d0 to d999 d0

Factory

Setting

Factory

Setting

NOTE

5-10 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Pr. Explanation Settings

Factory

Setting

A-07 PID Output Freq. Limit d0 to d110% d100 A-08 Feedback Signal Detection Time d0.0 to d650 seconds d0.0

Treatment of the Erroneous

A-09

Feedback Signals

d0: warn and RAMP to stop d1: warn and COAST to stop

A-10 Sleep Frequency d0.0 to d400Hz d0.0 A-11 Wakeup Frequency d0.0 to d400Hz d0.0 A-12 Sleep Period d0.0 to d650 seconds d0.0 A-13 PID User Defined d0.0 to d400 d0.0

NOTE

Revision August 2006, SE08, SW V2.61 5-11

Chapter 5 Parameters|VFD-S Series

5.2 Parameter Settings for Applications

 Speed Search

Applications Purpose Functions

Windmill, winding machine, fan and all inertia loads

 DC Br aking before Running

Applications Purpose Functions

When e.g. windmills, fans and pumps rotate freely by wind or flow without applying power

 Multi-step Operation

Applications Purpose Functions

Conveying machinery

 Switching acceleration and deceleration times

Applications Purpose Functions

Auto turntable for conveying machinery

 Oper ation Command

Applications Purpose Functions

General application

Restart freerunning motor

Keep the freerunning motor at standstill.

Cyclic operation by multi-step speeds.

Switching acceleration and deceleration times by external signal

Selecting the source of control signal

Before the free-running motor is completely stopped, it can be restarted without detection of motor speed. The AC motor drive will auto search motor speed and will accelerate when its speed is the same as the motor speed.

If the running direction of the freerunning motor is not steady, please execute DC braking before start-up.

To control 7-step speeds and duration by simple contact signals.

When an AC motor drive drives two or more motors, it can reach high-speed but still start and stop smoothly.

Selection of AC motor drive control by external terminals, digital keypad or RS485.

Parameters

8-06 8-07

Parameters

8-00 8-01 8-17

Parameters

4-04~4-08 5-00~5-06

Parameters

1-09~1-12 4-04~4-08

Parameters

2-01

4-04~4-08

5-12 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

 Two-wire/three-wire

Applications Purpose Functions

FWD/STOP

REV/STOP

M0 "Open": Stop, "Close": FWD Run

M1 "Open": Stop, "Close":REV Run

GND

M0 "Open": Stop, "Close": Run

M1 "Open": FWD, "Close":REV

REV/FWD

GND

3-wire

M0 Run command, Runs when "close" M2 Stop command, stops when "Open"

M1 REV/FWD Run selection "Open": FWD Run

RUN/FWD

"Close": REV Run GND

General application

To run, stop, forward and reverse by external terminals

RUN/STOP

STOP RUN

 Fr equency Hold

Applications Purpose Functions

General application

Acceleration/ deceleration pause

Hold output frequency during Acceleration/deceleration

 Auto Restart after Fault

Applications Purpose Functions

Air conditioners, remote pumps

For continuous and reliable operation without operator intervention

The AC motor drive can be restarted/reset automatically up to 10 times after a fault occurs.

 Emer gency Stop by DC Braking

Applications Purpose Functions

AC motor drive can use DC braking

High-speed rotors

Emergency stop without brake resistor

for emergency stop when quick stop is needed without brake resistor. When used often, take motor cooling into consideration.

Parameters

4-04~4-08

Parameters

4-04~4-08

Parameters

8-14

Parameters

8-00 8-02 8-03

Revision August 2006, SE08, SW V2.61 5-13

Chapter 5 Parameters|VFD-S Series

 Over-torque Setting

Applications Purpose Functions

The over-torque detection level can be set. Once OC stall, OV stall and overtorque occurs, the output frequency will be adjusted automatically. It is suitable for machines like fans and pumps that require continuous

Pumps, fans and extruders

To protect machines and to have continuous/ reliable operation

operation.

 Upper /Lower Limit Frequency

Applications Purpose Functions

When user cannot provide upper/lower limit, gain or bias from external signal, it can be set individually in AC motor drive.

Pump and fan

Control the motor speed within upper/lower limit

 Ski p Fr equency Setting

Applications Purpose Functions

The AC motor drive cannot run at

Pumps and fans

To prevent machine vibrations

constant speed in the skip frequency range. Three skip frequency ranges can be set.

 Car rier Frequency Setting

Applications Purpose Functions

The carrier frequency can be

General application Low noise

increased when required to reduce motor noise.

 Keep Runni ng when Frequency Command is Lost

Applications Purpose Functions

When the frequency command is lost

Air conditioners

For continuous operation

by system malfunction, the AC motor drive can still run. Suitable for intelligent air conditioners.

Parameters

6-03~6-05

Parameters

1-07 1-08

Parameters

8-08~8-13

Parameters

2-03

Parameters

2-05

5-14 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

 Output Si gnal during Running

Applications Purpose Functions

Signal available to stop braking (brake

General application

Provide a signal for running status

release) when the AC motor drive is running. (This signal will disappear when the AC motor drive is freerunning.)

 Output Si gnal in Zero Speed

Applications Purpose Functions

When the output frequency is lower

General application

Provide a signal for running status

than the min. output frequency, a signal is given for external system or control wiring.

 Output Si gnal at Desired Frequency

Applications Purpose Functions

General application

Provide a signal for running status

When the output frequency is at the desired frequency, a signal is given for external system or control wiring.

 Over-tor que Detecti on

Applications Purpose Functions

Pumps, fans and extruders

To protect machines and to have continuous/ reliable operation

The over-torque detection level can be set. Once over-torque occurs, a signal will occur to prevent the AC motor drive damage.

 Output Si gnal at Low-voltage

Applications Purpose Functions

General application

Provide a signal for running status

When the voltage between P-N is low voltage, a signal is given for external system or control wiring.

Parameters

3-05~3-06

Parameters

3-05~3-06

Parameters

3-05~3-06

Parameters

3-05~3-06

6-04 6-05

Parameters

3-05~3-06

Revision August 2006, SE08, SW V2.61 5-15

Chapter 5 Parameters|VFD-S Series

 Output Si gnal when Frequency Attained

Applications Purpose Functions

When the output frequency is at the

General application

Provide a signal for running status

desired frequency (by frequency command), a signal is given for external system or control wiring (frequency attained).

 Output Signal for Base Block

Applications Purpose Functions

General application

Provide a signal for running status

When executing Base Block, a signal is given for external system or control wiring.

 Overheat Warning for Heat Sink

Applications Purpose Functions

When heat sink is overheated, it will

General application For safety

send a signal for external system or control wiring.

 Multi-function Analog Output

Applications Purpose Functions

The value of frequency, output

General application

Display running status

current/voltage can be read by connecting a frequency meter or voltage/current meter.

Parameters

3-05~3-06

3-04 3-10

Parameters

3-05~3-06

Parameters

3-05~3-06

Parameters

3-05

5-16 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

5.3 Description of Parameter Settings

Group 0: User Parameters This parameter can be set during operation.

0-00 Identity Code of the AC Motor Drive

Settings Read Only Factory setting: d#

0-01 Rated Current Display of the AC motor drive

Settings Read Only Factory setting: d ##.#

 Pr. 0-00 displays the identity code of the AC motor drive. The capacity, rated current, rated

voltage and the max. carrier frequency relate to the identity code. Users can use the following table to check how the rated current, rated voltage and max. carrier frequency of the AC motor drive correspond to the identity code.

 Pr. 0-01 displays the rated current of the AC motor drive. By reading this parameter the user

can check if the AC motor drive is correct.

KW 0.2 0.4 0.75 1.5 2.2

HP 0.25 0.5 1.0 2.0 3.0

Pr.0-00 d0 d2 d4 d6 d8

Rated Output Current (A) 1.6 2.5 4.2 7.5 11.0

Max. Carrier Frequency 10kHz

KW 0.4 0.75 1.5 2.2

HP 0.5 1.0 2.0 3.0

Pr.0-00 d3 d5 d7 d9

Rated Output Current (A) 1.5 2.5 4.2 5.5

Max. Carrier Frequency 10kHz

0-02 Parameter Reset

Factory Setting: d0 Settings d9 All parameters are reset to factory settings (50Hz, 220V/380V) d10 All parameters are reset to factory settings (60Hz, 220V/440V)

 This setting allows the user to return all parameters to the factory default settings.

Start-up Display Selection

0-03

Factory Setting: d0 Settings d0 Display the frequency command value (LED F) d1 Display the actual output frequency (LED H) d2 Multifunction display, see Pr.0-04 d3 Display output current (LED A)

115V/230V Series

460V Series

Revision August 2006, SE08, SW V2.61 5-17

Chapter 5 Parameters|VFD-S Series

d4 Display forward/reverse command (Frd/rEv)

0-04 Content of Multi-function Display

Factory Setting: d0

Settings d0 Display the user-defined unit (u) d1 Display the counter value (C) d2 Display the content of PLC time (1.tt) d3 Display the DC BUS voltage (U) d4 Display the output voltage (E) d5 Display frequency commands of PID (P) d6 Display analog feedback signal value (b) (%)

 Display the user-defined unit, where unit = H X Pr.0-5-

0-05 User Defined Coefficient K Unit: 0. 1

Settings d0.1 to d160 Factory Setting: d1.0

 The coefficient K determines the multiplying factor for the user-defined unit.

The display value is calculated as follows: Display value = (output frequency x K)

 The display window is only capable of showing three digits, yet you could use Pr.0-05 to

create larger numbers. The display windows uses decimal points to signify numbers up to five

digits as illustrated in the following:

Display Number Represented

999 The absence of a decimal point indicates a three–digit integer.

A signal decimal point between the middle and the right-most numbers is a true

99.9 decimal point; it separates ones and tenths as in “30.5” (thirty and one-half).

A single decimal point after the right-most numbers is not a true decimal point,

999.

instead it indicates that a zero follows the right-most number. For example, the number 1230 would be displayed as “123.” Two decimal points (one between the middle and the right-most numbers, and one after the right-most number) are not true decimal points; instead they indicate

99.9. that two zeros follow the right-most number. For example, the number 34500

would be displayed as “34.5.”.

0-06 Software Version

Settings Read Only Display d #.#

5-18 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

0-07 Password Input Unit: 1

Settings d0 to d999 Factory Setting: d0

 Pr.0-07 and Pr.0-08 work together to provide data security for the AC drive. When Pr.0-08 is

set to a value other than 0, a password must be entered to alter the values of parameters. The password is the number set in Pr.0-08, which ranges from 1 to 999. Pr.0-07 is where the password is entered to allow parameter values to be altered.

 Display states:

d0: no password / correct password has been input d1: parameters are locked

Password Set Unit: 1

0-08

Settings d0 to d999 Factory Setting: d0 Display 0 No password set or successful input in Pr. 0-07 1 Password has been set

 To set a password to protect your parameter settings.

If the display shows 0, no password is set or password has been correctly entered in Pr.0-07. All parameters can then be changed, including Pr.0-08. The first time you can set a password directly. After successful setting of password the display will show 1. Be sure to record the password for later use. To cancel the parameter lock, set the parameter to 0 after inputting correct password into Pr. 0-07. The password consists of min. 1 digits and max. 3 digits.

 How to make the password valid again after decoding by Pr.0-07:

Method 1: Re-input original password into Pr.0-08 (Or you can enter a new password if you

want to use a changed or new one).

Method 2: After rebooting, password function will be recovered.

Password Decode Flow Chart

Revision August 2006, SE08, SW V2.61 5-19

Chapter 5 Parameters|VFD-S Series

0-08

0-07

Displays 0 when entering correct password into Pr.0-07.

Correct Password

END

0-08

Displays 0 when entering correc t password into Pr.0-07.

Incorrect Password

END

0-07

3 chances to enter the cor rect password. 1st time displays "d 1" if password is incorrect. 2nd time displays "d 2", if password is incorrect. 3rd time displays " codE" (blinki n g)

If the password was entered incorrectly after three tries, the keypad will be locked. Turn the power OFF/ON to re-enter the password.

Memory Mode Selections Unit: 1

0-09

Settings d0 to d63 Factory Setting: d8

 This parameter is determined to save frequency, operation direction and parameter setting

after power off or not.

 Setting method: input to this parameter after converting binary 6-bit to decimal. Refer to

following two tables for detail.

Bit 0 Reserved Bit 1 Bit 2 Reserved

Bit 3 Bit 4 Bit 5

0: save frequency 1: not save frequency

0: save direction 1: not save direction 0: save parameters (except Pr.0-09 and Pr.0-02) 1: not save parameters 0: save Pr.0-09 1: not save Pr. 0-09

5-20 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

bit 5 bit4 Bit 3 bit 1 Setting for Pr. 0-09

0 0

 When Pr. 0-09 is set to b5=0, Pr. 0-09 setting will be saved after power on again.  When Pr. 0-02 is set to d10, all parameters (includes Pr.0-09) will be set to factory setting.

1 2 0 8 (factory setting)

1 10 0 16

1 18 0 24

1 26 0 32

1 34 0 40

1 42 0 48

1 50 0 56

1 58

Revision August 2006, SE08, SW V2.61 5-21

Chapter 5 Parameters|VFD-S Series

Group 1: Basic Parameters

Maximum Output Frequency (Fmax) Unit: 0.1

1-00

Settings d50.0 to d400 Hz Factory Setting: d60.0  This parameter determines the AC motor drive’s Maximum Output Frequency. All the AC

motor drive frequency command sources (analog inputs 0 to +10V and 4 to 20mA) are scaled to correspond to the output frequency range.

1-01 Maximum Voltage Frequency (Fbase) Unit: 0.1

Settings d10.0 to d400 Hz Factory Setting: d60.0

 This value should be set according to the rated frequency of the motor as indicated on the

motor nameplate. Maximum Voltage Frequency determines the v/f curve ratio. For example, if the drive is rated for 460 VAC output and the Maximum Voltage Frequency is set to 60Hz, the drive will maintain a constant ratio of 7.66 V/Hz (460V/60Hz=7.66V/Hz). This parameter value must be equal to or greater than the Mid-Point Frequency (Pr.1-03).

1-02 Maximum Output Voltage (Vmax) Unit: 0.1

Settings 115V/230V series d2.0 to d255V Factory Setting: 220.0 460V series d4.0 to d510V Factory Setting: 440.0

 This parameter determines the Maximum Output Voltage of the AC motor drive. The

Maximum Output Voltage setting must be smaller than or equal to the rated voltage of the motor as indicated on the motor nameplate. This parameter value must be equal to or greater than the Mid-Point Voltage (Pr.1-04).

1-03 Mid-Point Frequency (Fmid) Unit: 0.1

Settings d1.0 to d400Hz Factory Setting: d1.0

 This parameter sets the Mid-Point Frequency of the V/f curve. With this setting, the V/f ratio

between Minimum Frequency and Mid-Point frequency can be determined. This parameter must be equal to or greater than Minimum Output Frequency (Pr.1-05) and equal to or less than Maximum Voltage Frequency (Pr.1-01).

1-04 Mid-Point Voltage (Vmid) Unit: 0.1

Settings 115V/230V series d2.0 to d255V Factory Setting: d12.0 460V series d4.0 to d510V Factory Setting: d24.0

5-22 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

 This parameter sets the Mid-Point Voltage of any V/f curve. With this setting, the V/f ratio

between Minimum Frequency and Mid-Point Frequency can be determined. This parameter must be equal to or greater than Minimum Output Voltage (Pr.1-06) and equal to or less than Maximum Output Voltage (Pr.1-02).

1-05 Minimum Output Frequency (Fmin) Unit: 0.1

Settings d1.0 to d60.0Hz Factory Setting: d1.0

 This parameter sets the Minimum Output Frequency of the AC drive. This parameter must be

equal to or less than Mid-Point Frequency (Pr.1-03).

1-06 Minimum Output Voltage (Vmin) Unit: 0.1

Settings 115V/230V series d2.0 to d255V Factory Setting: d12.0 460V series d4.0 to d510V Factory Setting: d24.0

 This parameter sets Minimum Output Voltage of the AC drive. This parameter must be equal

to or less than Mid-Point Voltage (Pr.1-04).

Voltage

Pr.1-02

Pr.1-04 Pr.1-06

Pr.1-03 Pr.1-05

Standard V/F Curve

Pr.1-00 Pr.1-01

Freq.

1-07 Output Frequency Upper Limit Unit: 1

Settings d1 to d110% Factory Setting: d100

 This parameter must be equal to or greater than the Output Frequency Lower Limit (Pr.1-08).

The Maximum Output Frequency (Pr.1-00) is regarded as 100%.

 Output Frequency Upper Limit value = (Pr.1-00 * Pr.1-07)/100.

1-08

Output Frequency Lower Limit

Unit: 1

Settings d0 to d100% Factory Setting: d0

 The Upper/Lower Limit is to prevent operation error and machine damage.

Revision August 2006, SE08, SW V2.61 5-23

Chapter 5 Parameters|VFD-S Series

 If the Upper Limit of Output Frequency is 50Hz and the Maximum Output Frequency is 60Hz,

the Maximum Output Frequency will be limited to 50Hz.

 If the Lower Limit of Output Frequency is 10Hz, and the Minimum Output Frequency (Pr.1-05)

is set at 1.0Hz, then any Command Frequency between 1-10Hz will generate a 10Hz output from the drive.

 This parameter must be equal to or less than the Upper Limit of Output Frequency (Pr.1-07).

1-09 Acceleration Time 1 (Taccel 1) Unit: 0.1 1-10 Deceleration Time 1 (Tdecel 1) Unit: 0.1 1-11 Acceleration Time 2 (Taccel 2) Unit: 0.1 1-12 Deceleration Time 2 (Tdecel 2) Unit: 0.1

Settings d0.1 to d600Sec Factory Setting: d10.0

 Pr.1-9- This parameter is used to determine the time required for the AC drive to ramp from 0

Hz to its Maximum Output Frequency (Pr.1-00). The rate is linear unless S-Curve is “Enabled.”

 Pr.1-10. This parameter is used to determine the time required for the AC drive to decelerate

from the Maximum Output Frequency (Pr.1-00) down to 0 Hz. The rate is linear unless SCurve is “Enabled.”

 The acceleration/deceleration time 2 determines the time for the AC drive to

acceleration/deceleration from 0Hz to Maximum Output Frequency (Pr.1-00) (acceleration/deceleration time 1 is the default). A Multi-Function Input terminal must be programmed to select acceleration/deceleration time 2 and the terminals must be closed to select acceleration/deceleration time 2. See Pr.4-04 to Pr.4-8-

 In the diagram shown below, the acceleration/deceleration time of the AC drive is the time

between 0 Hz to Maximum Output Frequency (Pr.1-00). Suppose the Maximum Output Frequency is 60 Hz, start-up frequency (Pr.1-05) is 1.0 Hz, and acceleration/deceleration time is 10 seconds. The actual time for the AC drive to accelerate from start-up to 60 Hz is 9.83 seconds and the deceleration time is also 9.83 seconds.

1-13  Jog Acceleration/Deceleration Time Unit: 0.1Sec

Settings d0.1 to d600Sec Factory Setting: d10.0

1-14  Jog Frequency Unit: 0.1Hz

Settings d1.0 to d400Hz Factory Setting: d6.0

5-24 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

 The JOG function can be selected using Multi-function Input terminals (Pr.4-04 to Pr.4-08) if

programmed for Jog (d10). When the Jog terminal is “closed”, the AC drive will accelerate from Minimum Output Frequency (Pr.1-05) to Jog Frequency (Pr.1-14). When the Jog terminal “open”, the AC drive will decelerate from Jog Frequency to zero. The acceleration/deceleration time is decided by the Jog acceleration/deceleration time (Pr.1-13). During operation, the AC drive cannot perform Jog command. And during Jog operation, other operation commands cannot be accepted, except command of FORWARD, REVERSE

and STOP keys on the digital keypad.

Frequency

Max. Output freq. Pr.1-00

Jog Freq. Pr.1-14

Time

Pr. 1-13

Acceleration Time

Jog oper ation command

Pr. 1-13

Deceleration Time

OFF

1-15 Auto-Acceleration / Deceleration

Factory Setting: d0 Settings d0 Linear Accel/Decel d1 Auto Accel, Linear Decel d2 Linear Accel, Auto Decel d3 Auto Accel/Decel (Set by load) d4 Linear Accel; Auto Decel, Stall Prevention during Decel d5 Auto Accel/Decel, Stall Prevention during Decel

 If the auto acceleration/deceleration is selected, the AC drive will acceleration/deceleration in

the fastest and smoothest means possible by automatically adjusting the time of acceleration/deceleration.

Revision August 2006, SE08, SW V2.61 5-25

Chapter 5 Parameters|VFD-S Series

1-16 Acceleration S-Curve 1-17 Deceleration S-Curve

Settings d0 to d7 Factory Setting: d0  These two parameters allow you to configure whether the acceleration and/or deceleration

ramps are linear or S-shaped. The S-curve is enabled when set at d1-d7. Setting d1 offers the quickest S-curve and d7 offers the longest and smoothest S-curve. The AC drive will not follow the acceleration/deceleration time in Pr.1-09 to Pr.1-12. To Disable the S-curve, set Pr.1-16 and Pr.1-17 to d0.

 From the diagram shown below, the original setting acceleration/deceleration time will be for

reference when the function of the S-curve is enabled. The actual acceleration/deceleration time will be determined based on the S-curve selected (d1 to d7).

1 2

Disable S curve

cceleration/deceleration Characteristics

3 4 Enable S curve

1-18 Jog Decelerating Time Unit: 0.1Sec

Settings d0.0 to d600 Factory Setting: d0.0

 When Pr.1-18 is set to d0.0 Jog decelerating time determined by the setting of Pr.1-13 0.1 to

600 sec, Jog decelerating time can be set independently, separates from Pr.1-13.

 When Pr.1-18 is set to 0.0, Pr.1-13 determines both Jog acceleration and deceleration time.

When Pr.1-18 is set between 0.1 to 600 seconds, which will determine Jog Decelerating Time and Pr.1-13 will only determine Jog Accelerating Time.

5-26 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Group 2: Operation Method Parameters

2-00 Source of Master Frequency Command

Factory Setting: d0 Settings d0 Master Frequency input determined by digital keypad. (record the

frequency of power loss and it can do analog overlap plus)

d1 Master Frequency determined by analog signal DC 0V-10V

(external terminal AVI). (won’t record the frequency of power loss and it can’t do analog overlap plus)

d2 Master Frequency determined by analog signal DC 4mA-20mA

(external terminal AVI). (won’t record the frequency of power loss and it can’t do analog overlap plus)

d3 Master Frequency determined by Potentiometer on the digital

keypad. (won’t record the frequency of power loss and it can do analog overlap plus)

d4 Master Frequency operated by RS-485 serial communication

interface and record frequency of power loss. (record the frequency of power loss and it can do analog overlap plus)

d5 Master Frequency operated by RS-485 serial communication

interface and won’t record frequency before power loss. (won’t record the frequency of power loss and it can do analog overlap plus)

 This parameter sets the Frequency Command Source of the AC drive.  If the Frequency Command Source is external (DC 0 to +10V or 4 to 20mA), please make

sure the (AVI) terminal jumper is in the proper position as shown below.

 Position of jumper: Please open the top cover. It is at the lower-left corner of the panel. The

jumper J1 determines the type of external analog input, either DC voltage signal or current signal.

oltage signal input(0-10V)

Current signal input(4-20mA)

 When setting analog overlap plus, it needs to set Pr. 2-06 to select AVI or ACI.

Revision August 2006, SE08, SW V2.61 5-27

Chapter 5 Parameters|VFD-S Series

2-01 Source of Operation Command

Factory Setting: d0 Settings d0 Controlled by the keypad d1 External terminals. Keypad STOP/RESET enabled. d2 External terminals. Keypad STOP/RESET disabled. d3 RS-485 serial communication (RJ-11). Keypad STOP/RESET

enabled.

d4 RS-485 serial communication (RJ-11). Keypad STOP/RESET

disabled.

 When the AC drive is controlled by an external source, please refer to parameter group 4 for

detailed explanations on related parameter settings.

2-02 Stop Method

Factory Setting: d0 Settings d0 STOP: ramp to stop E.F.: coast to stop d1 STOP: coast to stop E.F.: coast to stop

 The parameter determines how the motor is stopped when the AC motor drive receives a

valid stop command or detects External Fault.

Ramp: the AC motor drive decelerates to Minimum Output Frequency (Pr.1-05)

according to the deceleration time set in Pr.1-10 or Pr.1-12 and then stops.

Coast: the AC motor drive stops the output instantly upon command, and the motor

free runs until it comes to a complete standstill. The motor stop method is usually determined by the characteristics of the motor load and how frequently it is stopped.

(1) It is recommended to use “ramp to stop” for safety of personnel or to prevent

material from being wasted in applications where the motor has to stop after the drive is stopped. The deceleration time has to be set accordingly.

(2) If motor free running is allowed or the load inertia is large, it is recommended to

select “coast to stop”. For example: blowers, punching machines, centrifuges and pumps.

5-28 Revision August 2006, SE08, SW V2.61

Frequency

output frequency

motor speed

Freque ncy

output frequency

motor speed

Chapter 5 Parameters|VFD-S Series

operation command

RUN

stops according to decel eration time

STOP

ramp t o stop an d free run to stop

Time

operation command

RUN

free run to stop

Time

STOP

2-03

PWM Carrier Frequency Selections

Unit: 1

115V/230V/460V Series

Power 0.25 to 3hp (0.2kW to 2.2kW)

Setting Range d3 to d10 kHz

Factory Setting d10 kHz

 This parameter determines the PWM carrier frequency of the AC motor drive.

Carrier Frequency

3kHz

10kHz

Acoustic

Noise

Signi f i c an t

Minimal

Elect romagneti c Noise or leakage current

Minimal

Significant

Heat Dissipatio n

Minimal

Signi f i c an t

Curre nt Wave

Minimal

Signifi can t

 From the table, we see that the PWM carrier frequency has a significant influence on the

electromagnetic noise, AC motor drive heat dissipation, and motor acoustic noise.

2-04 Motor Direction Control

Factory Setting: d0 Settings d0 Enable forward/reverse operation d1 Disable reverse operation

 The parameter determines whether the AC drive can operate in the reverse direction.

Revision August 2006, SE08, SW V2.61 5-29

Chapter 5 Parameters|VFD-S Series

2-05 Loss of ACI Signal (4-20mA)

Factory Setting: d0 Settings d0 Decelerate to 0 Hz d1 Coast to stop and display “EF” d2 Continue operation by last frequency command

 This parameter is only effective when the Source of Frequency is commanded by a 4 to

20mA signal. The ACI input is considered lost when the ACI signal falls below 2mA.

2-06 Analog Auxiliary Frequency Operation

Factory Setting: d0 Settings d0 Disable d1 Enable + AVI (0~10V) d2 Enable + ACI (4~20mA)

 This parameter is used to determinate that the analog signal to overlap is 0~10V (AVI) or

4~20mA (ACI).

 To make sure the short PIN of J1 on the panel is correct position before setting this parameter.

5-30 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Group 3: Output Function Parameters

3-00

Analog Output Signal (AFM) Factory Setting: d0 Settings d0 Analog Frequency Meter (0 to Maximum Output Frequency) d1 Analog Current Meter (0 to 250% of rated AC motor drive current)

 This parameter sets the function of the AFM output 0~+10VDC (ACM is common).  The voltage output type for this analog signal is PWM. It needs to read value by the movable

coil meter and is not suitable for A/D signal conversion.

3-01 Analog Output Gain Unit: 1

Settings d1 to d200% Factory Setting: d100

 The parameter sets the voltage range of the analog output signal at terminals AFM, that

corresponds with either the output frequency or the output current of the VFD.

AFM

GND

AFM

GND

Analog Frequency Meter

Analog Current Meter

 The analog output voltage is directly proportional to the output frequency of the AC drive. With

the factory setting of 100%, the Maximum Output Frequency (Pr.1-00) of the AC drive corresponds to +10VDC analog voltage output. (The actual voltage is about +10VDC, and can be adjusted by Pr.3-01).

 The analog output voltage is directly proportional to the output current of the AC drive. With

the factory setting of 100%, the 2.5 times rated current of the AC drive corresponds to +10VDC analog voltage output. (The actual voltage is about +10VDC, and can be adjusted by

Pr. 3-01)

NOTE

Voltmeter specification: The sourcing capability of the output is limited to 0.21mA. Sourcing voltage:

10V. Output resistance: 47kΩ. If the meter reads full scale at a voltage less than 10 volts, then Pr.3-01 should be set by the following formula: Pr.3-01 = ((meter full scale voltage)/10) ×100%

For example: When using the meter with full scale of 5 volts, adjust Pr.3-01 to 50%.

Revision August 2006, SE08, SW V2.61 5-31

Chapter 5 Parameters|VFD-S Series

3-02 Desired Frequency Attained Unit: 0.1

Settings d1.0 to d400 Hz Factory Setting: d1.0

 If a multi-function output terminal is set to function as Desired Frequency Attained (Pr.3-05 or

3-06=d9), then the output will be activated when the programmed frequency is attained.

Freq.

Max. Output Freq.

Desired Freq.

Pr.3-02

Detection range +

2Hz

Detection range

4Hz

Detec tion range

-2Hz

Preset Freq. Attained indication Pr.3-05 to 3-06

Desired Freq. Attained Indication Pr.3-05 to 3-06

OFF

Desired Freq. Attained & Preset Freq. Attained

3-03 Terminal Count Value Unit: 1

Settings d0 to d999 Factory Setting: d0

 The parameter determines the upper limit value of the internal counter. The internal counter

can be triggered by the external terminal (Pr.4-4 to Pr.4-8, d19). Upon completion of counting, the specified output terminal will be activated. (Pr.3-05, Pr.3-06, d14).

3-04 Preliminary Count Value Unit: 1

Settings d0 to d999 Factory Setting: d0

 When the counter value is counted up from “1” to the setting value of this parameter, the

corresponding multi-function output terminal which set to d15 as Preliminary Counter Value Attained will be closed. The application can be that closing the multi-function output terminal makes the AC drive operate at low speed until stop before the counting value is going to be attained.

 The timing diagram is shown below:

Time

OFF

5-32 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Display (Pr.0-04=d1)

Counter Trigger Signal Multi-function Input Terminal

Preliminary Counter Value Attained Output

(Pr. 3-04=d 3) (Pr. 3-05 to Pr. 3-06=d15)

Terminal Count Value Attained Output

(Pr.3-03=d5) (Pr.3-05 to Pr.3-06=d14)

TRG

The width of tri should not be less than 2ms(<250 Hz)

2ms

er signal

3-05

Multi-function Output Terminal 1 (Photocoupler output)

Factory Setting: d1

3-06

Multi-function Output Terminal 2 (relay output)

Factory Setting: d8 Settings d0 to d18

Setting Function Description

d0 No Function d1 AC Drive Operational the output terminal will be activated when the drive is

running.

Master Frequency Attained the output will be activated when the AC drive attains

Maximum Output Frequency.

d3 Zero Speed the output will be activated when Command Frequency

is lower than the Minimum Output Frequency.

d4 Over Torque Detection the output will be activated as long as the over-torque is

detected. Pr.6-04 determines the Over-Torque detection level.

d5 Base-Block (B.B.) Indication the output will be activated when the output of the AC

drive is shut off by external Baseblock.

d6 Low-Voltage Indication the output will be activated when low voltage is detected.

d7 Operation Mode Indication the output will be activated when the operation of the AC

drive is controlled by External Control Terminals.

d8 Fault Indication the output will be activated when faults occur (oc, ov,

oH, oL, oL1, EF, cF3, HPF, ocA, ocd, ocn, GF).

d9 Desired Frequency Attained the output will be activated when the desired frequency

(Pr.3-02)is attained.

Revision August 2006, SE08, SW V2.61 5-33

Chapter 5 Parameters|VFD-S Series

Setting Function Description

d10 PLC Program Running the output will be activated when the PLC program is

running.

d11 PLC Program Step

Completed

the output will be activated for 0.5 sec. when each multistep speed is attained.

d12 PLC Program Completed the output will be activated for 0.5 sec. when the PLC

program cycle has completed.

d13 PLC Operation Paused the output will be activated when PLC operation is

paused.

Terminal Count Value

d14

Attained Preliminary Counter Value

d15

Attained

counter reaches Terminal Count Value.

counter reaches Preliminary Count Value.

d16 AC Motor Drive Ready

d17 FWD Command Indication When AC drive receives the command of forward

running, it will output immediately no matter AC drive is in the state of run or stop.

d18 REV Command Indication When AC drive receives the command of reverse

running, it will output immediately no matter AC drive is in the state of run or stop.

5-34 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Group 4: Input Function Parameters

4-00  Potentiometer Bias Frequency Unit: 0. 1

Settings d0.0 to d100.0% Factory Setting: d0.0

4-01  Potentiometer Bias Polarity

Factory Setting: d0 Settings d0 Positive Bias d1 Negative Bias

4-02  Potentiometer Frequency Gain Unit: 1

Settings d1 to d200% Factory Setting: d100

4-03 Potentiometer Reverse Motion Enable

Factory Setting: d0 Settings d0 Forward motion only d1 Reverse motion enable (must be negative bias)

 Pr.4-00 to Pr.4-03 are used when the source of frequency command is the analog signal (0 to

+10V DC or 4 to 20 mA DC). Refer to the following examples.

Example 1:

The following is the most common method. Set parameter 2-00 to d1 (0 to +10V signal) or d2 (4 to 20mA current signal).

Example 2:

In this example with the potentiometer set to 0V the Output Frequency is 10 Hz. The mid-point of the potentiometer becomes 40 Hz. Once the Maximum Output Frequency is reached any further increase of the potentiometer will not increase output frequency.

Revision August 2006, SE08, SW V2.61 5-35

Chapter 5 Parameters|VFD-S Series

Example 3:

The example also shows the popular method. The whole scale of the potentiometer can be used as desired. In addition to signals of 0 to 10V and4 to 20mA, the popular voltage signals also include signals of 0 to 5V, 20 to 4mA or that under 10V. Regarding the setting, please refer to the following examples.

Example 4:

This example shows a potentiometer range of 0 to 5 Volts.

Example 5:

In this example a 1 volt negative bias is used. In a noise environment, it is advantageous to use negative bias to provide a noise margin (1V in this example).

5-36 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Example 6:

In this example, a negative bias is used to provide a noise margin. Also a potentiometer frequency gain is used to allow the Maximum Output Frequency to be reached.

Max. Output Freq.

Negative bias 6H

Pr.1-00

60Hz

0Hz

Gain adjustment

Factory Settings

Pr.1-00=60Hz--Max. output Freq. Pr.4-00= 10%--Potentiometer bias freq. Pr.4-01=1 -- Bias polarity Pr.4-02=111% -- Pot. freq. gain Pr.4-03=0 -- Forward motion only

Calcula tion of gai n

10V

Pr.4-02=(

)X100%=111%

It's 0Hz within this range.

Potentiometer Scale

10V

Example 7:

In this example, the potentiometer is programmed to run a motor is both forward and reverse direction. A motor will be idle when the potentiometer position is at mid-point of its scale. Using Pr.4-03 will disable the external FWD and REV controls.

Max. Output Freq.

REV

60Hz 30Hz

0Hz

Pr.1-00

FWD

5V 30Hz

60Hz

Factory Settings

Pr.1-00=60Hz--Max. output Freq. Pr.4-00=30Hz--Potentiometer bias freq.

10V

Pr.4-01=1 -- bias polarity Pr.4-02=200% -- pot. freq. gain Pr.4-03=1 -- p ot. REV motion enable

REV.

FWD.

10V

Potentiometer Scale

Example 8:

In this example, the option of anti-slope is shown. Anti-slope is used in an application where control of pressure, temperature, or flow is needed. Under a high pressure or flow situation, a sensor will generate a large signal such as 20 mA or 10V. With anti-slope enable, the large signal will slow or stop the AC drive.

Revision August 2006, SE08, SW V2.61 5-37

Chapter 5 Parameters|VFD-S Series

Max. Output Freq.

60Hz

0Hz

Pr.1-00

0V 4mA

anti-s lo p e

Factory Settings

Pr.1-00=60Hz--Ma x. output Freq. Pr.4-00=60Hz--Potentiometer bias freq. Pr.4-01=1 -- bias polarity Pr.4-02=100% -- pot. freq. gain Pr.4-03=1 -- pot. REV. moti on enable

10V 20mA

60 0V

4mA

Potentiometer Scale

10V

20mA

4-04 Multi-function Input Terminal (M0, M1)

Settings d0 to d29 Factory Setting: d1

4-05 Multi-function Input Terminal (M2)

Factory Setting: d6

4-06 Multi-function Input Terminal (M3)

Factory Setting: d7

4-07 Multi-function Input Terminal (M4)

Factory Setting: d8

4-08 Multi-function Input Terminal (M5)

Factory Setting: d9

Parameters & Functions table:

Value Function Value Function

d0 No Function d15 Up: Increment master frequency

d1 M0: FWD / STOP, M1: REV / STOP d16 Down: Decrement master frequency

d2 M0: RUN / STOP, M1: FWD / REV d17 Run PLC Program

3-Wire Operation Control mode (M0,

M1, M2) d4 External Fault (Normally Open) d19 Counter Trigger Signal d5 External Fault (Normally Closed) d20 Counter Reset

d6 External Reset d21 d7 Multi-Step Speed Command1 d22 PID function disable

d8 Multi-Step Speed Command2 d23 JOG FW D d9 Multi-Step Speed Command3 d24 JOG REV

d10 Jog operation d25

Acceleration/Deceleration Speed

d11

Inhibit

First or Second Acceleration or

d12

Deceleration Time Selection

External Base Block (N.O.)

d13

(Normally Open Contact Input)

External Base Block (N.C.)

d14

(Normally Close Contact Input)

d18 Pause PLC Program

Select ACI / Deselect AVI (the priority is higher than Pr. 2-00 and d26)

The source of master frequency is AVI. (The priority is higher than Pr. 2-00 and d26) The source of master frequency is ACI. (The

d26

priority is higher than Pr. 2-00) Press UP/DOWN

d27

forward/reverse (N.O.) motion Press UP/DOWN

d28

forward/reverse (N.C.) motion M0: 0: RUN 1: STOP, M1: no function,

d29

Direction is controlled by keypad

key to switch key to switch

5-38 Revision August 2006, SE08, SW V2.61

Chapter 5 Parameters|VFD-S Series

Explanations:

d0 Parameter Disable:

Enter value (d0) to disable any Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-

06), M4 (Pr.4-07) or M5 (Pr.4-08).

NOTE

The purpose of this function is to provide isolation for unused Multi-Function Input Terminals. Any unused terminals should be programmed to d0 to insure they have no effect on drive operation.

d1 Two wire operation: Restricted to Pr.4-04 and external terminals M0, M1.

FWD/STOP

M0 "Open": Stop, "Close": FWD Run

REV/STOP

M1 "Open": Stop, "Close":REV Run

GND

d2 Two wire operation: Restrict to Pr. 4-04 and external terminals M0, M1.

M0 "Open": Stop, "Close": Run

RUN/STOP

M1 "Open": FWD, "Close":REV

REV/FWD

GND

NOTE

Multi-function Input Terminal M0 does not have its own parameter designation. M0 must be used in conjunction with M1 to operate two and three wire control.

d3 Three Wire Control: Restricted to Pr.4-04 control terminals M0, M1, M2.

STOP RUN

M0 Run command, Runs when "close" M2 Stop command, stops when "Open"

M1 REV/FWD Run selection

RUN/FWD

"Open": FWD Run "Close": REV Run

GND

Revision August 2006, SE08, SW V2.61 5-39

Chapter 5 Parameters|VFD-S Series

NOTE

When value d3 is selected for Pr. 4-04, this will over ride any value entered in Pr.4-05, since Pr.4-05 must be used for three wire control as shown above.

d4, d5 External Faults:

Parameter values d4, d5 programs Multi-Function Input Terminals: M1 (Pr. 4-04), M2 (Pr. 4-05), M3 (Pr. 4-06), M4 (Pr. 4-07) or M5 (Pr. 4-08) to be External Fault (E.F.) inputs.

NOTE

When an External Fault input signal is received, the AC drive will stop all output and display “ E.F.” on Digital Keypad, the motor will free run. Normal operation can resume after the External Fault is cleared and the AC drive is reset.

d6 External Reset:

Parameter value d6 programs a Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-

06), M4 (Pr.4-07) or M5 (Pr.4-08) to be an External Reset.

E.F.(N. O.)

settin g by d4

E.F(N.C.)

setting by d5

RESET

setting by d6

Mx "Close": Operation available.

Mx "O pe n" :Operation a v ail ab le .

GND

Mx "Close": Operation available

GND

NOTE

the External Reset has the same function as the Reset key on the Digital keypad. After external fault such as O.H., O.C. and O.V. are clear, this input can be used to reset the drive.

d7, d8, d9 Multi-Step Speed Command:

Parameter values d7, d8, d9 programs any three of the following Multi-Function Input Terminals: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-06), M4 (Pr.4-07) or M5 (Pr.4-08) for multi-step speed command function.

5-40 Revision August 2006, SE08, SW V2.61

D7 Multi-step

Chapter 5 Parameters|VFD-S Series

Mx "Clo s e": Operation avai la bl e

D8 Multi-step 2 D9 Multi-step 3

Mx "Clo s e": Operation avai la bl e Mx "Clo s e": Operation avai la bl e

GND

These three inputs select the multi-step speeds defined by Pr.5-00 to Pr.5-06 as shown in the following diagram. Pr.5-07 to Pr.5-16 can also control output speed by programming the AC drive’s internal PLC function.

Pr.5-00

Freq.

Step 1

Pr.5-01

Step 2

Pr.5-02

Step 3

Pr.5-03

Step 4

Pr.5-04

Step 5

Pr.5-05

Step 6

Pr.5-06

Step 7

Master Freq.

Mx1-GND Mx2-GND

Mx3-GND Operation Command

ON ON

ON ON ON

ON ON

Time

OFF

d10 Jog Operation Control:

Parameter value d10 programs Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-

06), M4 (Pr.4-07) or M5 (Pr.4-08) for Jog control.

Mx "Close": Operation available

d10 jog operation command

GND

NOTE

Jog operation programmed by d10 can only be initiated while the motor is stopped. (Refer to Pr.1-13, Pr.1-14.)

d11 Acceleration/Deceleration Speed Inhibit:

Parameter value d11 programs Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-

06), M4 (Pr.4-07) or M5 (Pr.4-08) for Acceleration/deceleration Inhibit. When the command is received, acceleration and deceleration is stopped and the AC drive maintains a constant speed.

Revision August 2006, SE08, SW V2.61 5-41

Chapter 5 Parameters|VFD-S Series

Frequency

Acceleration inhibit

Master Frequency Acceleration

inhibit

Decelerat i on inhibit

Decelerat io n inhibit

Actual operation freque ncy

Time

Mx-GND

Operation command

ON ON

OFF

d12 First or Second Acceleration/Deceleration Time Selection: Parameter value d12 programs a Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3

(Pr.4-06), M4 (Pr.4-07) or M5 (Pr.4-08) to control selection of First or Second Acceleration/deceleration time. (Refer to Pr.1-09 to Pr.1-12.)

Mx "Close": 2nd Acceleration/Deceleraion

Mx set d12

"Open": 1st Acceleration/Deceleration

GND

Pr. 1-11

2nd

cceleration/

Deceleration

Pr. 1-12

Pr. 1-09

1st Acceleration

Pr. 1-12

OFF

2nd Deceleration

Time

Frequency

Master Frequency

Mx-GND

operation command

Pr. 1-09

1st

cceleration/

Deceleration

Pr. 1-10

d13, d14 External Base Block:

Parameter values d13, d14 program Multi-Function Input Terminals: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-06), M4 (Pr.4-07) or M5 (Pr.4-08) for external Base Block control. Value d13 is for normally open (N.O.) input, and value d14 is for a normally closed (N.C.) input.

5-42 Revision August 2006, SE08, SW V2.61

B.B.(N.O.)

Chapter 5 Parameters|VFD-S Series

setting by d13

Mx "C lo s e ": Operat io n availabl e .

B.B.(N.C.)

Mx "Open":Operation available.

setting by d14

GND

NOTE

When a Base-Block signal is received, the AC drive will stop all output and the motor will free run. When base block control is deactivated, the AC drive will start its speed search function and synchronize with the motor speed, and then accelerate to Master Frequency.

External base-block signal

Output frequency

Output voltage

Pr.8-04=d1

Speed sear ch starts with the reference value

Min. base-block time

Pr.8-06

Speed synchronization detection

Speed search operation

d15, d16 Increase/Decrease Master Frequency:

Parameter values d15, d16 program the Multi-Function Input Terminals: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-06), M4 (Pr.4-07) or M5 (Pr.4-08) to incrementally increase/ decrease the Master Frequency each time an input is received.

Mx "Close": Freq. will increase

setting by d15

DOWN

setting by d16

by one unit.

Mx "Close":Freq. will decrease by one unit.

GND

d17, d18 PLC Function Control:

Parameter value d17 programs Multi-Function Input Terminal: M1 (Pr.4-04), M2 (Pr.4-05), M3 (Pr.4-

06), M4 (Pr.4-07) or M5 (Pr.4-08) to enable the AC drive internal PLC program. Parameter value d18 programs an input terminal to pause the PLC program.

Revision August 2006, SE08, SW V2.61 5-43

Delta Electronics 115V, 460V, 230V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Table of Contents

Chapter 1 Introduction

1.1 Receiving and Inspection

1.1.1 Nameplate Information

1.1.2 Model Explanation

1.1.3 Series Number Explanation

1.1.4 Drive Frames

1.2 Appearances

1.3 Installation Steps

1.4 Storage

Chapter 2 Installation and Wiring

2.1 Ambient Conditions

2.2 Installation

2.3 Dimensions

2.4 Wiring

2.4.1 Basic Wiring

2.4.2 External Wiring

2.4.3 Main Terminals Connections

2.4.4 Control Terminals

2.4.5 Main Circuit Terminals

3.1 Preparations before Start-up

Chapter 3 Start Up

3.2 Operation Method

3.3 Trial Run

Chapter 4 Digital Keypad Operation

4.1 Description of the Digital Keypad

4.2 Explanation of LED Indicators

4.3 Explanations of Display Messages

4.4 How to Operate the Digital Keypad

Chapter 5 Parameters

5.1 Summary of Parameter Settings

5.2 Parameter Settings for Applications

5.3 Description of Parameter Settings
