6 Drawer Dresser
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED
Due to the presence of small parts during assembly, keep out of
reach of children until assembly is complete.
THIS PRODUCT IS NOT INTENDED FOR
INSTITUTIONAL OR COMMERCIAL USE.
Consumer Care:
www.DeltaChildren.com
Delta Children’s Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
Style #:
Lot:
Date:
___________
___________
___________
A
REV
When contacting Delta Consumer Care please reference the above information. Before contacting Delta
Consumer Care please ensure that the information above matches the information found on the label on
the Back Panel
Care.
To register your product for important safety alerts and updates to your product please visit
www.DeltaChildren.com and click on Product Registration.
April 02, 2014 24868-79706-R0 ©2014 DELTA ENTERPRISE CORP.
. please reference the information found on the product when contacting Delta Consumer
Page 2
WARNING
Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over:
.
Place heaviest items in the lowest drawers.
.
Unless specifically designed to accommodate, do not set TV’s or other heavy objects on the top of this
product.
.
Never allow children to climb or hang on drawers, doors,or shelves.
.
Never open more than one drawer at a time.
Use of tip-over restraints may only reduce, but not eliminate, the risk of tip-over.
.
Always monitor your child’s activity when in the nursery.
.
Do not allow standing in drawers.
.
Do not allow standing on top of this product.
.
Accessory Items must be securely fastened to this product according to the instructions provided with
those items.
.
To avoid head injury, do not allow children to play underneath open drawers.
.
Do not leave drawers open when not in use.
NOTES ON ASSEMBLY:
-During the assembly process whenever using screws or bolts, check each by placing the screw/bolt on the
diagram of the item which is drawn actual size and design. Be sure to use the proper size and shape specified in
the instructions.
-To assemble this unit you may be required to place the unit on it’s side and face. It is strongly recommended that
assembly is done on a soft, non-abrasive surface to avoid damaging the finish.
NOTES ON CARE AND MAINTENANCE:
- Do not scratch or chip the finish.
- Inspect the product periodically, contact delta children's products for replacement parts or questions.
- Do not store the product or any parts in extreme temperatures and conditions such as a hot attic or a damp,
cold basement. These extremes can cause a loss of structural integrity.
-To preserve the luster of the high quality finish on your product, it is recommended to place a doily or felt pad
under any items you place on the finish.
-Clean with a damp cloth, then a dry cloth to preserve the original luster and beauty of this fine finish.
-Do not use abrasive chemicals.
-Do not spray cleaners directly onto furniture.
-Lift slightly when moving on carpeting to prevent leg breakage.
-Use of a vaporizer near furniture will cause wood to swell and finish to peel.
Page 3

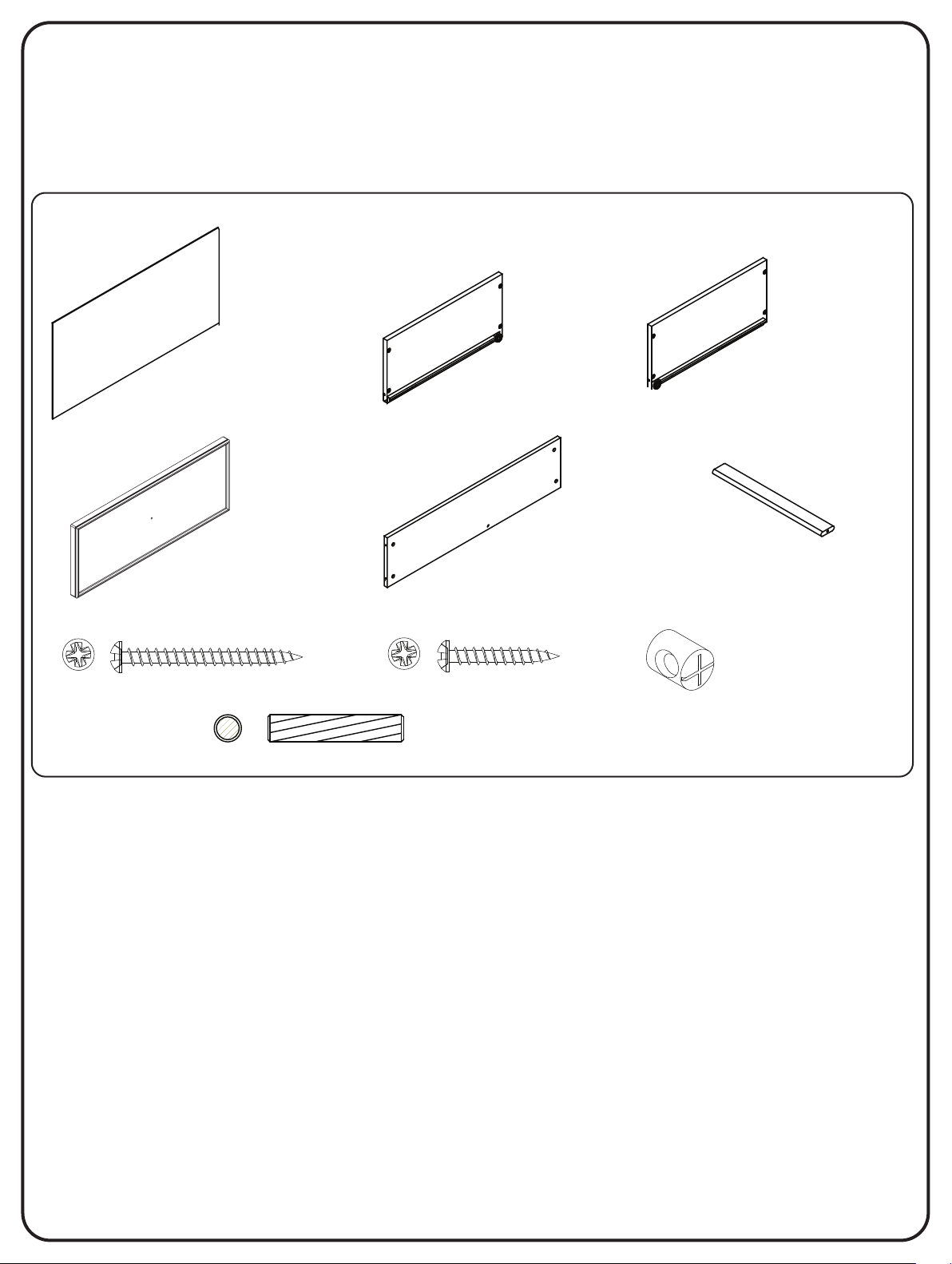

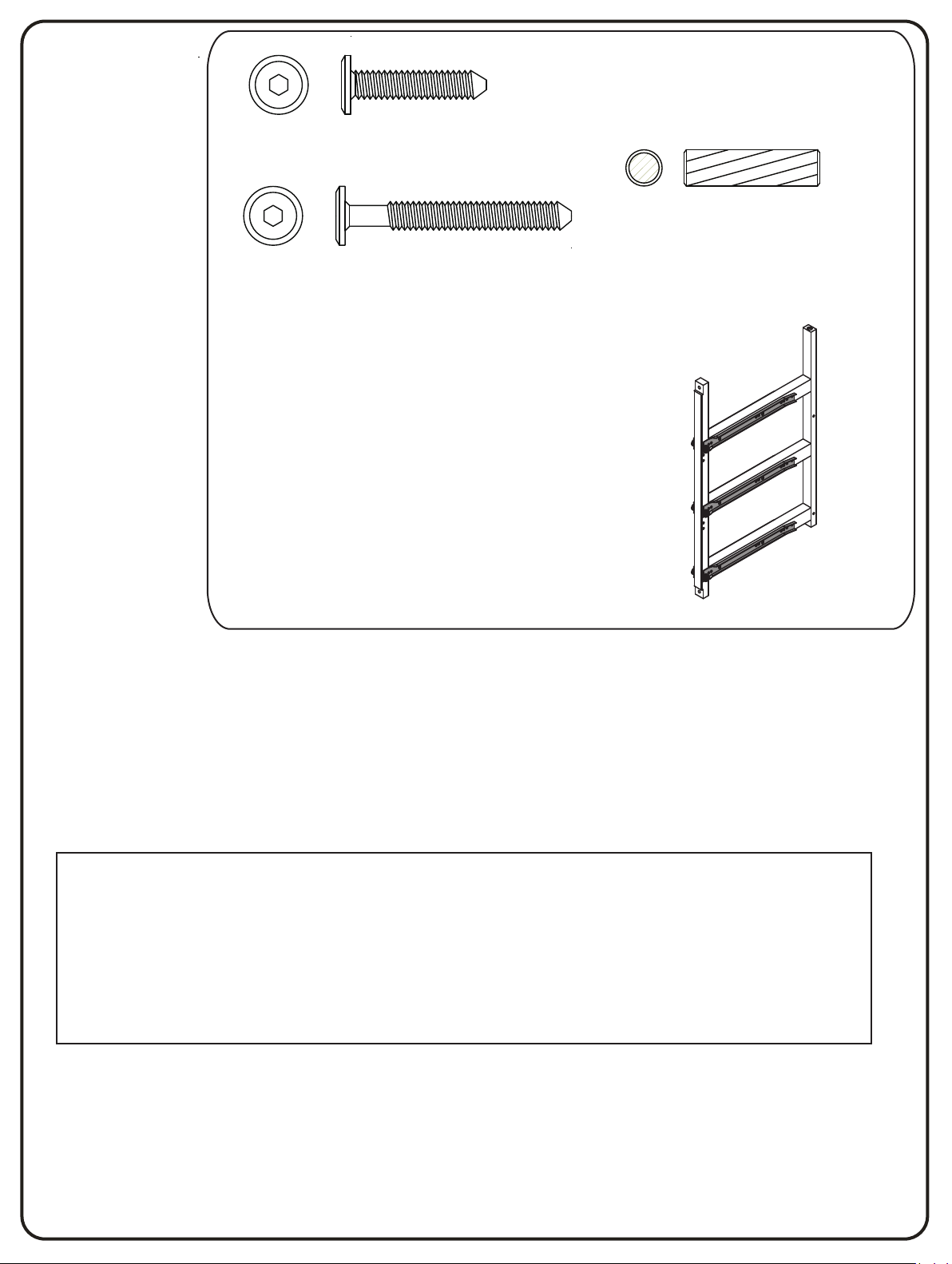

PARTS:
HARDWARE KITS PART #24868
AA. 60mm Bolt X8
CC. 50mm Bolt X9
EE. 6mm Dowel X12
HH. Plastic Barrel Nut X 30
FF. 8mm Dowel X34
JJ. Screw X25
KK. Drawer Screw X24
MM. Knob And
Screw X6
Part# 21377
BB. 30mm Bolt X7
DD. 25mm Bolt X4
GG. Plastic
Clamp X8
LL. Drawer Screw X30
4mm Hex Wrench
Included
4mm Hex Wrench
Screwdriver
Included
MM2
MM1
`
Phillips Screwdriver
Not Included
3
Page 4
PARTS: MAKE SURE THAT ALL PRE-ASSEMBLED PARTS ARE TIGHT.

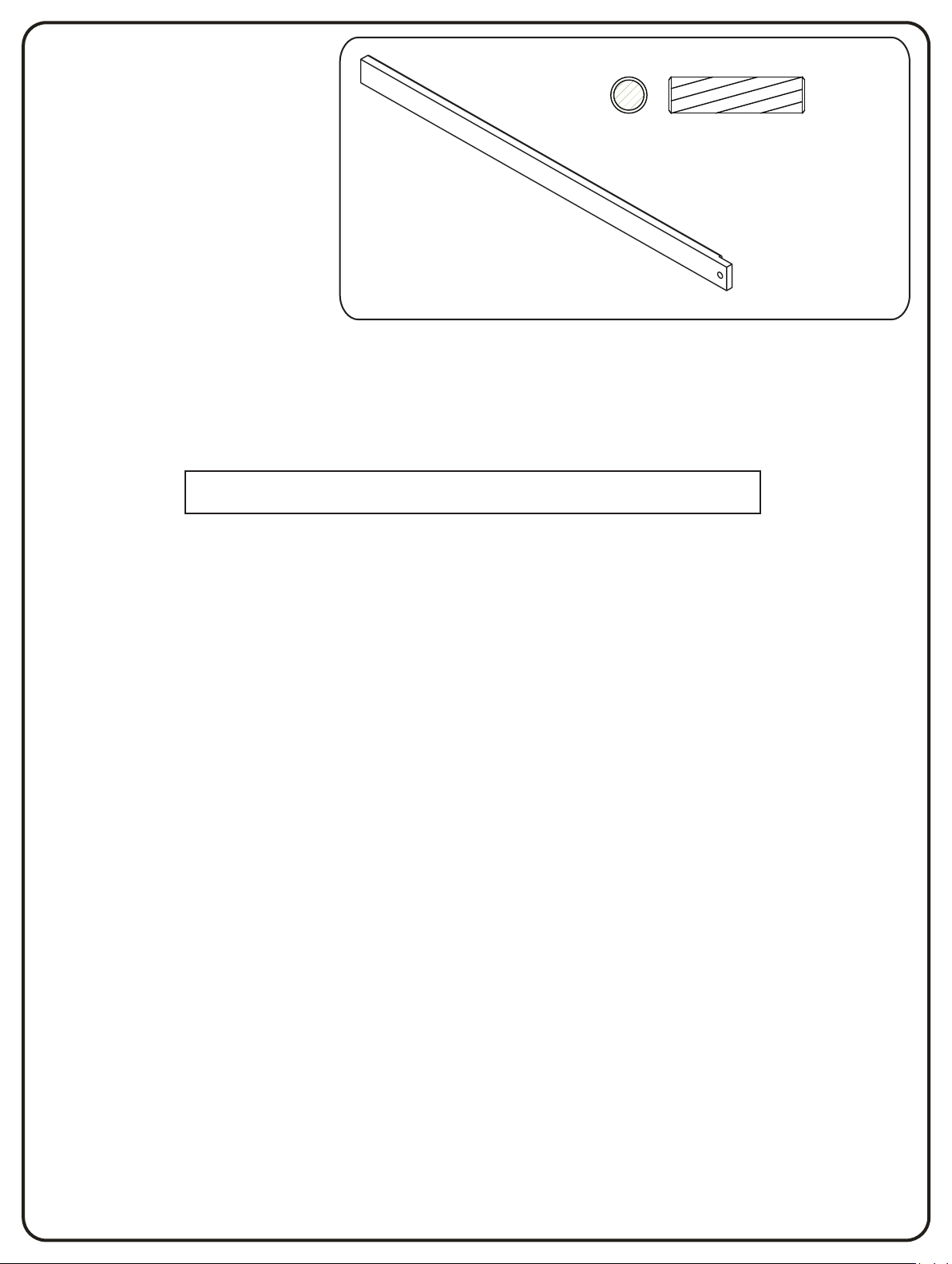

C. Middle Front Rail X4
Part# 24856
B. Right Side
A. Left Side
Part# 24849
Part# 24850
J.Top Panel X1
Part# 24859
D. Top Front Rail X1
Part# 24852
E. Bottom Front Rail X1
Part# 24854
F. Top Back Rail X1
Part# 24853
H. Divider Frame X1
Part# 24851
G. Bottom Back Rail X1
Part# 24855
K. Back Panel X1
Part# 24858
L. Back Weight x2
Part# 24857
M. Drawer Front x6
Part# 24860
N. Drawer Bottom x6
Part# 24865
T. Drawer Right
Side x6
Part# 24863
R. Drawer Back x6
Part# 24864
P. Drawer Left
Side x6
Part# 24862
S. Drawer
Support x6
Part# 24866
4
Page 5
HARDWARE SYSTEM - REVIEW BEFORE ASSEMBLY
AA. 60mm Bolt x8
GG.Plastic Crescent Washer

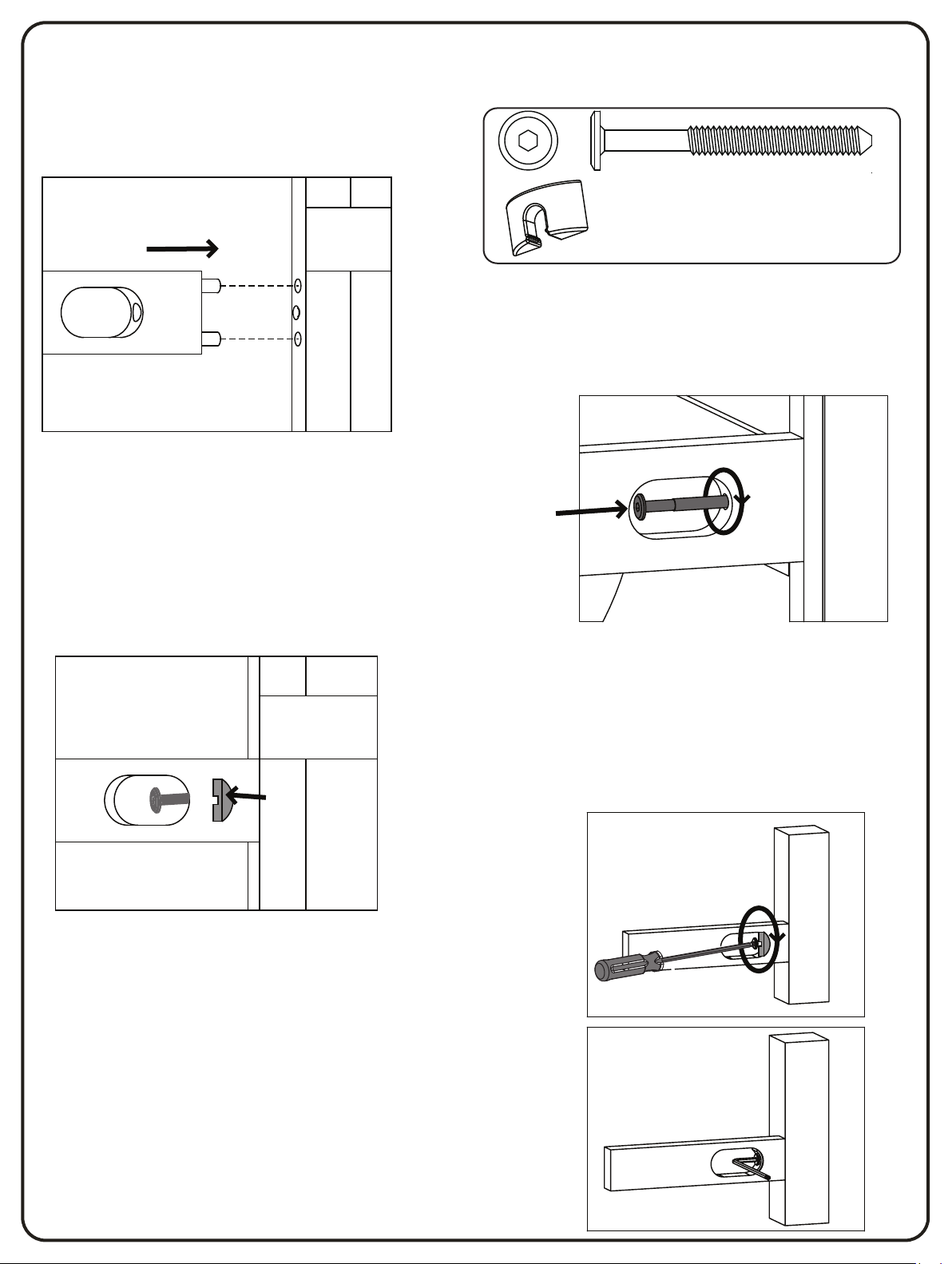

1. Insert the Dowels in the Rail into the holes in the Post.
2. Align the bolt with the hole in the end of the rail, align the
dowels in the end of the rail with the with the holes in the
post. Slide together until tight.
Install (1) bolt and (1) crescent washer at a time.
Tighten until it looks like the picture.
3. Slide the Plastic Crescent Washer over the exposed bolt,
behind the head of the bolt. Tighten the bolt with the M4 Hex
Wrench Screwdriver provided.
Using the M4 Hex Wrench
Ensure all bolts are tightened.
5
Page 6

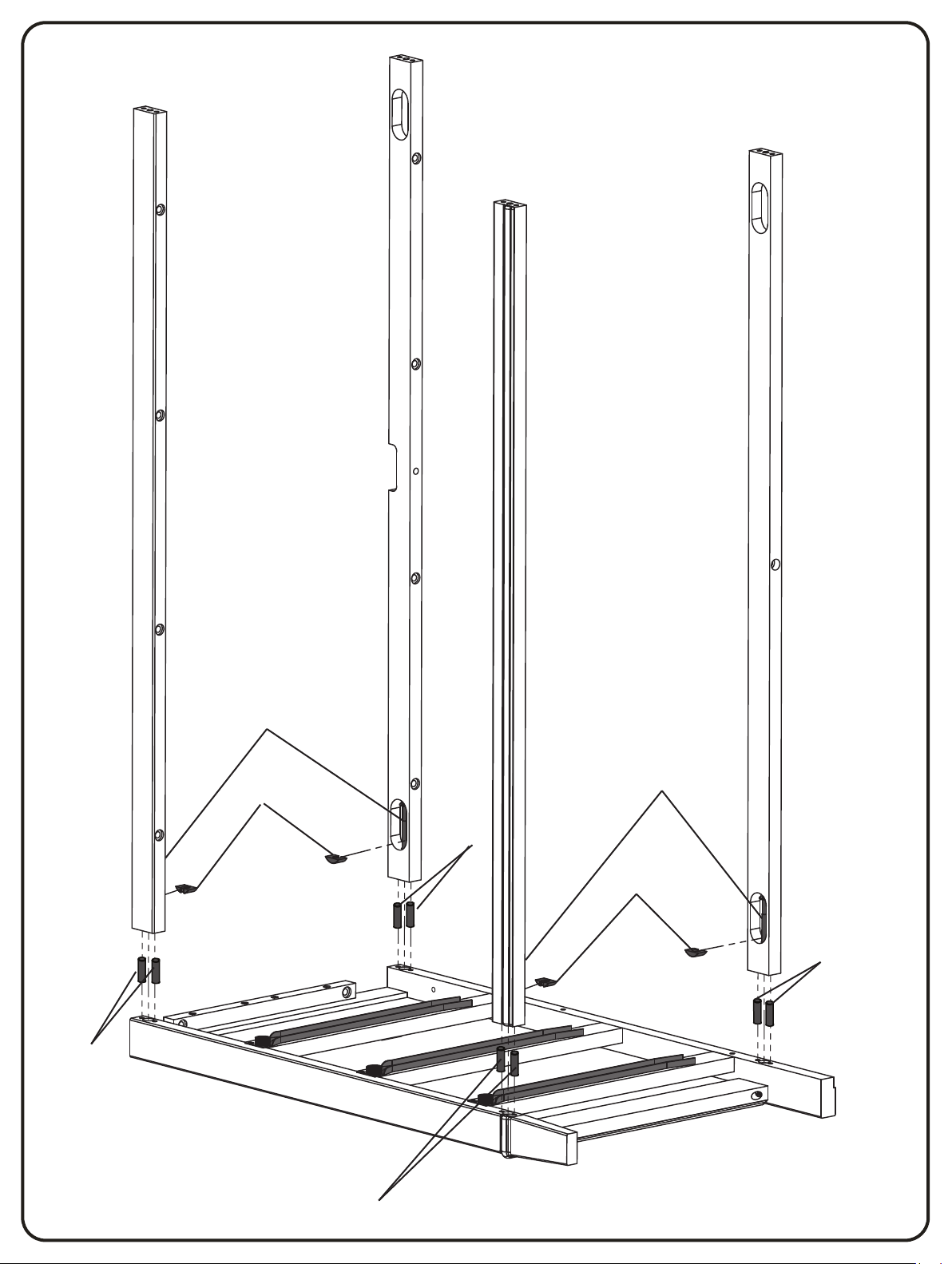

STEP 1:
AA. 60mm BOLT x4
GG. Plastic Clamp x4
FF. 8mm Wood Dowel x8
D. Top Front Rail X1
E. Bottom Front Rail X1
F. Top Back Rail X1
G. Bottom Back Rail X1
AA
GG
FF
A. Left Side
Attach Top Front Rail (Part D), Bottom Front Rail (Part E), Top Back Rail (Part F) and Bottom Back
Rail (Part G) to Left Side (Part A) using(8) 8mm Dowels (Part FF), (4) 50mm Bolts (Part CC) and
(4) Plastic Clamps (Part GG)following the direction on page 5. Ensure that the slots on the rails
face the inside.
Tighten all Bolts with the Hex Wrench.
6
Page 7
D
F
G
E
FF
AA
AA
GG
FF
GG
FF
A
FF
7
Page 8
STEP 2:
FF. 8mm Wood Dowel x2
DD. 25mm BOLT x2
C. Middle Front Rail X2
L. Back Weight x1
Install (2) Middle Front Rails (Part C) using (2) 25mm Bolts (Part DD).
Tighten all Bolts with the Hex Wrench.
Then using (2) 8mm Dowels install the Back Weight (Part L).
8
Page 9

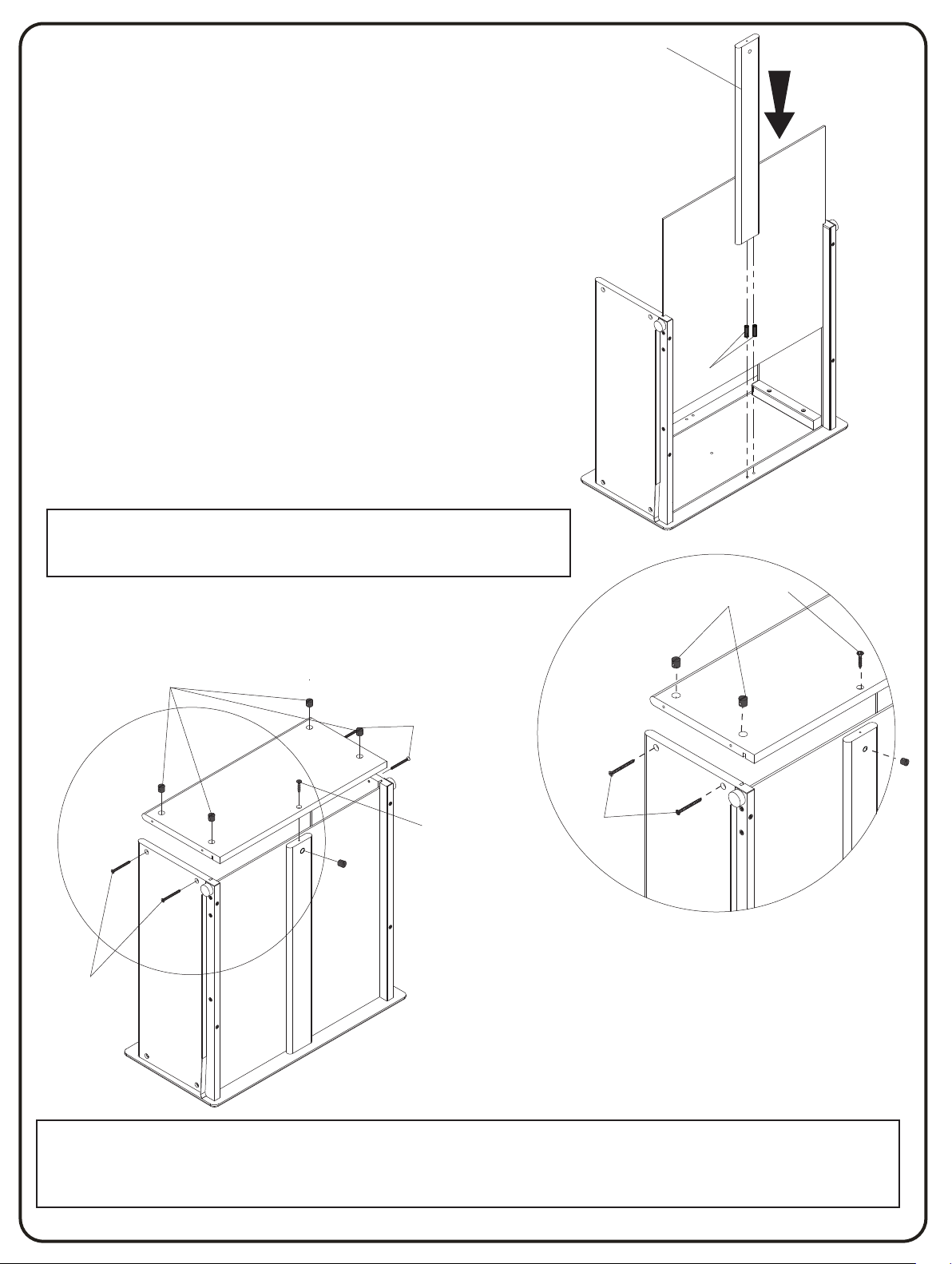

Note : The pre drill holes on the weight panel ensure face back.
C
DD
L
FF
9
Page 10

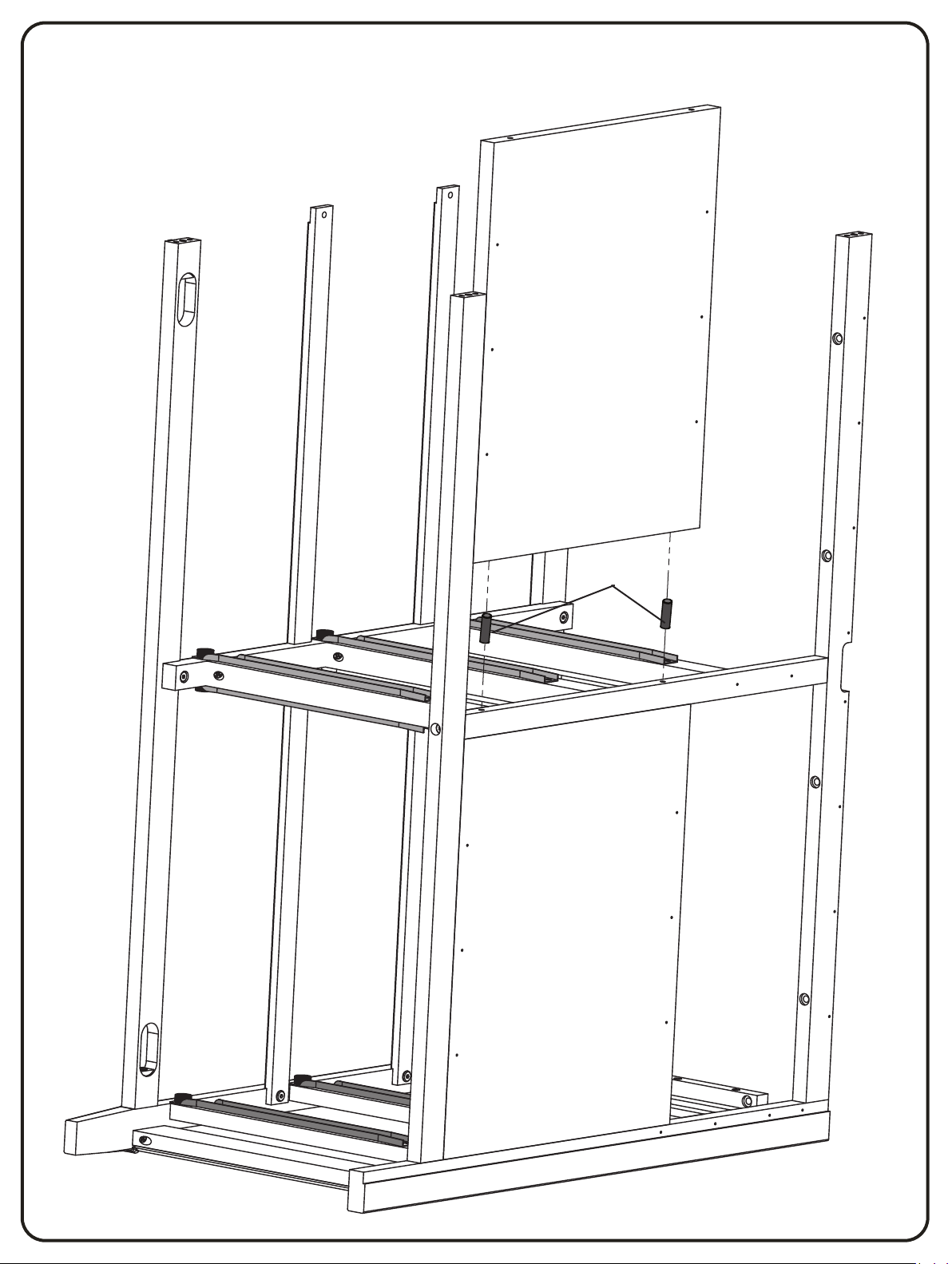

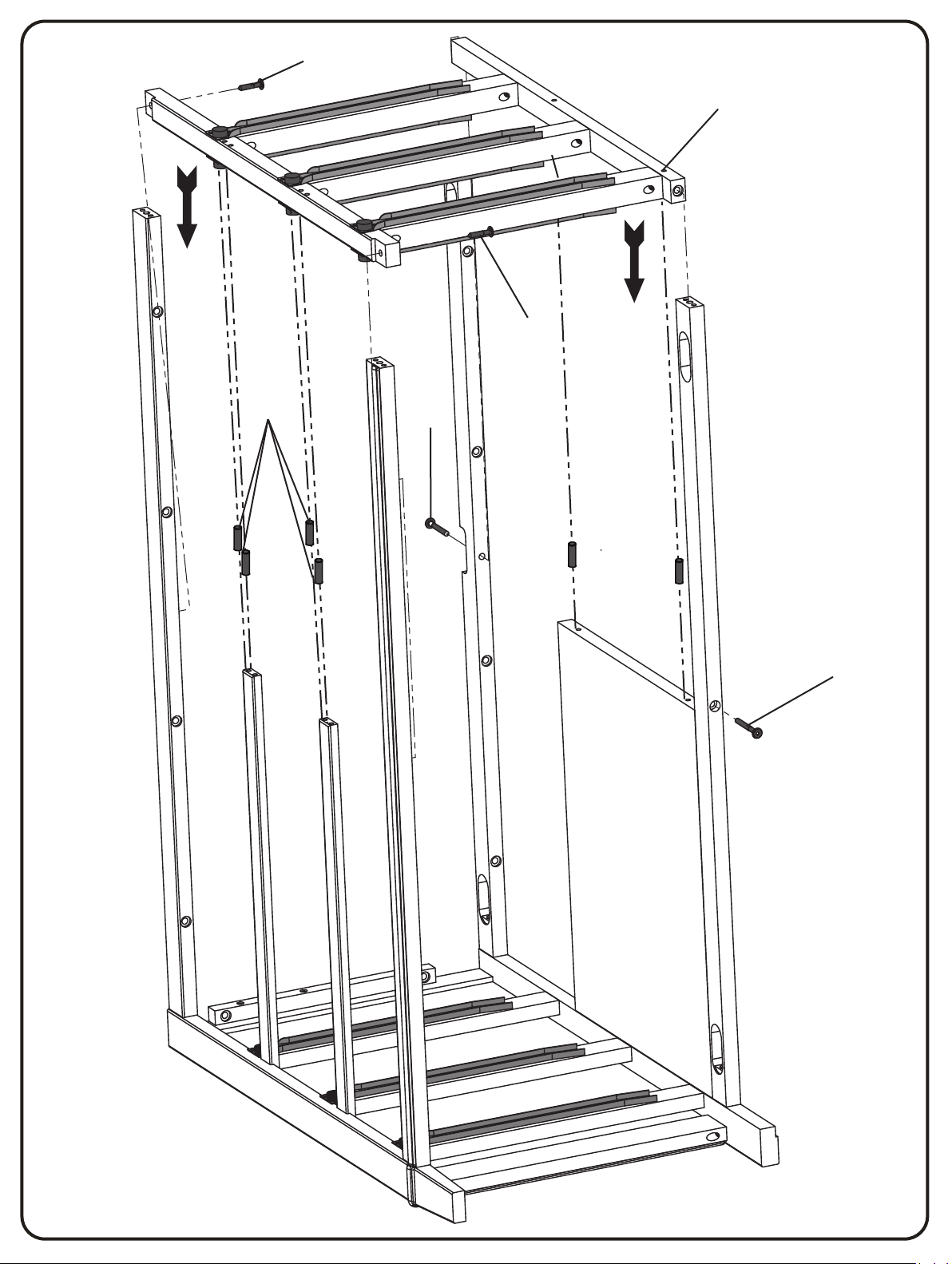

STEP 3:
BB. 30mm BOLT x3
FF. 8mm Dowel x6
CC. 50mm BOLT x1
H. Divider Frame X1
Insert the Divider Frame (Part H) into the (2) Middle Front Rails and Bottom Back Panel
using (6) 8mm Dowels (Part FF), (1) 50mm Bolt (Part CC) and (3) 30mm Bolts (Part BB).
Tighten all bolts with the Hex Wrench.
10
Page 11
FF
BB
H
BB
BB
CC
11
Page 12

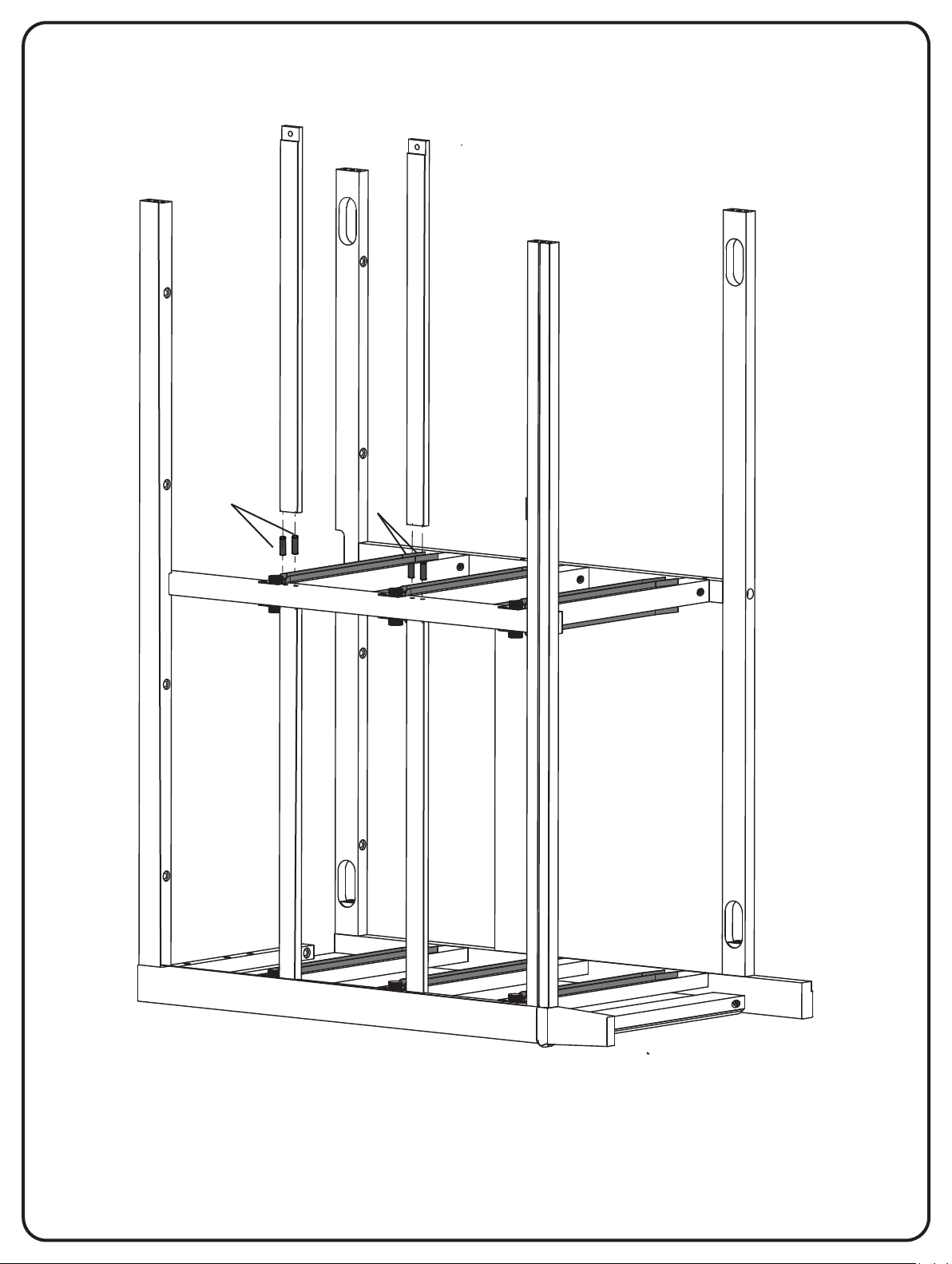

STEP 4:
FF. 8mm X 30mm Wood Dowel x4
C. Middle Front Rail X2
Install (2) Middle Front Rails (Part C) using (4) 8mm Dowels (Part FF).
12
Page 13
C
C
FF
FF
13
Page 14
STEP 5:
FF. 8mm Wood Dowel x2
L. Back Weight x1
Install (1) Back Weight (Part L) using (2) 8mm Wood Dowels (Part FF).
14
Page 15
Note : The pre drill holes on the weight panel ensure face back.
L
FF
15
Page 16
STEP 6:
FF. 8mm Wood Dowel x10
Install (10) 8mm Dowels (Part FF) into the Top Front Rail (Part D), Bottom Front Rail (Part E), Top
Back Rail (Part F), Bottom Back Rail (Part G), and the Back Weight (Part L).
16
Page 17
FF
FF
E
FF
G
L
D
FF
FF
F
17
Page 18
STEP 7:
AA. 60mm BOLT x4
GG. Plastic Clamp x4
B. Right Side x1
DD. 25mm Bolt X2
FF
GG
AA
Attach the Right Side by aligning the Right Side (Part B) with the installed Dowels from
the previous step and using (4) 60mm Bolts (Part AA), (4) Plastic Clamp (Part GG) and
(2) 25mm Bolts (Part DD) following the direction on page 5.
Tighten all bolts with the Hex Wrench.
18
Page 19
B
19
Page 20
STEP 8:
FF. 8mm X 30mm Wood Dowel x2
BB. 30mm BOLT x4
CC. 50mm BOLT x8
J.Top Panel X1
Attach the Top Panel (Part J) to the Case using (2) 8mm Dowels (Part FF) (8) 50mm Bolts
(Part CC) through the Top Front and Back Rails, then install (4) 30mm Bolts (Part BB) through the
sides. Tighten all bolts with the Hex Wrench.
20
Page 21
FF
J
BB
FF
CC
BB
CC
CC
CC
21
Page 22
STEP 9:
JJ. SCREW x25
K. Back Panel X1
Attach Back Panel (Part K) using (25) Screws (Part JJ).
Tighten with a Phillips Screwdriver.
22
Page 23
K
23
Page 24
STEP 10: Drawer Assembly
Drawer Right Side
Left Drawer
View from above of correctly assembled and installed drawers, the top and top front rail have been
removed for clarity.
Also note Drawer Fronts have a Wide Side and a Narrow Side,and also a groove on the top and
bottom for the drawer panel. Please watch as you assemble so the wide side ends up in the middle
of the case.
Drawer Left Side
Right Drawer
24
Page 25
N. Drawer Bottom x3
M. Drawer Front x3
T. Drawer Right
Side x3
R. Drawer Back x3
P. Drawer Left
Side x3
S. Drawer
Support x3
LL. 40mm Screw x15
EE. 6mm Dowel x6
KK. 25mm Screw x12
HH. Plastic Barrelx15
25
Page 26
STEP 10A:
x3Left Drawer
Wide Side
KK
T
Narrow Side
Align Grooves
M
P
KK
P
Wide Side
Attach the Right and Left Drawer Sides (Parts P And T) to the Drawer Front (Part
M) with (4) 25mm Screws (Part KK) Note: Grooves In Bottom Must Align. Loosely
Tighten With Phillips Screwdriver
M
Narrow Side
KK
26
Page 27
STEP 10B:
S
N
EE
Wide Side
Slide Drawer Bottom (Part N) into the grooves. Install the
Drawer Support (Part S) using (2) 6mm Dowels (Part EE).
HH
LL
R
LL
LL
R
P
Narrow Side
HH
LL
P
Wide Side
S
LL
P
Narrow Side
Install the Drawer Support (Part S) and Drawer Back (Part R), using (5) 40mm Screws (Part LL) and
(5) Plastic Barrel Nuts (Part HH). Note: Grooves In Bottom Must Align.
Tighten All Screws With Phillips Screwdriver.
27
Page 28
STEP 10C:
Install Left Drawers. Rearranging the Drawers may result in
a better fit or alignment.
28
Page 29
N. Drawer Bottom x3
M. Drawer Front x3
T. Drawer Right
Side x3
R. Drawer Back x3
P. Drawer Left
Side x3
S. Drawer
Support x3
LL. 40mm Screw x15
EE. 6mm Dowel x6
KK. 25mm Screw x12
HH. Plastic Barrelx15
29
Page 30
STEP 10 D:
KK
T
Right Drawer
M
Narrow Side
Align Grooves
x3
Wide Side
KK
KK
P
T
Wide Side
M
Narrow Side
Attach the Right and Left Drawer Sides (Parts P And T) to the Drawer Front (Part
M) with (4) 25mm Screws (Part KK) Note: Grooves In Bottom Must Align. Loosely
Tighten With Phillips Screwdriver
30
Page 31
STEP10E:
S
N
EE
Wide Side
T
Narrow Side
Slide Drawer Bottom (Part N) into the grooves. Install the
Drawer Support (Part S) using (2) 6mm Dowels (Part EE).
HH
LL
R
J
S
LL
LL
Wide Side
T
HH
R
LL
T
Narrow Side
Install the Drawer Support (Part S) and Drawer Back (Part R), using (5) 40mm Screws (Part LL) and
(5) Plastic Barrel Nuts (Part HH). Note: Grooves In Bottom Must Align.
Tighten All Screws With Phillips Screwdriver.
31
Page 32
Install Right Drawers. Rearranging the Drawers may result
in a better fit or alignment.
32
Page 33
STEP 11:
MM. Knob and
screw x6
MM1
6x
MM2
MM1
MM2
Attach (1) Knob (Part MM1) with (1) Knob Screw (Part MM2).
Tighten With The Phillips Screwdriver.
33
Page 34
Consumer Care:
www.DeltaChildren.com
Delta Children’s Products
114 West 26th Street
New York, NY 10001
Tele.212-645-9033
Warranty: This Delta Crib is warranted to be free from defects for a period
of 1 year from the date of purchase under normal use. This warranty extends
only to the original retail purchaser and is valid only when supplied with proof of
purchase, or if received as a gift, when the registration is on file with Delta.
To register your product for important safety alerts and updates to
your product please visit www.DeltaChildren.com
Please do not return this item to the store before contacting us
about missing parts or with any questions.
To report a problem, please log on to www.DeltaChildren.com and
click the Consumer Care Tab, or contact us by phone at
(212) 645-9033.
In the event that you need to contact our customer service
department please have the Style Number and Lot Number available.
Use the space below to make note of those numbers. They can be
found on the label on the Back Panel.
STYLE No: 79706
A
COLOR
Lot No. : _______________________
Pack Date:_____________________
Date of Purchase: _____________
(you should also keep your receipt)
REV
Loading...
