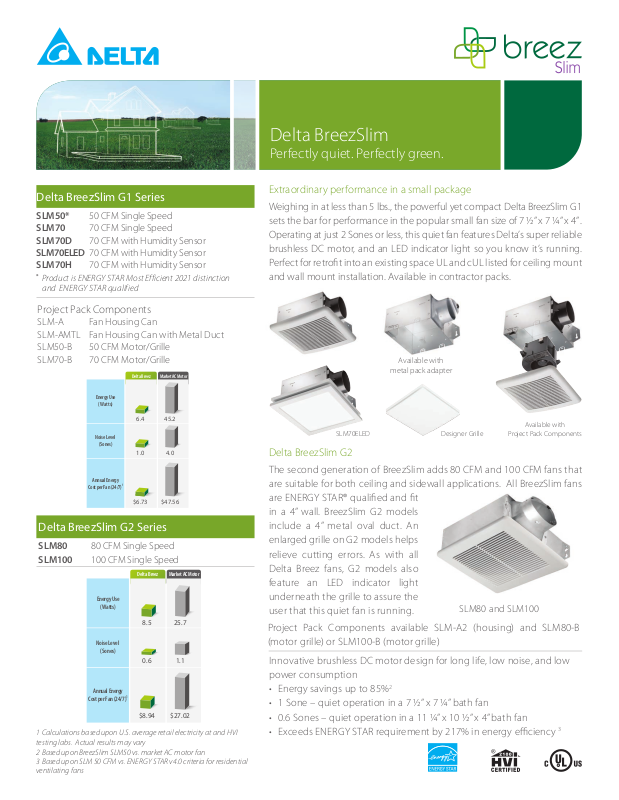

Page 1
Delta BreezSlim
Perfectly quiet. Perfectly green.
Delta BreezSlim G1 Series
SLM50* 50 CFM Single Speed
SLM70 70 CFM Single Speed
SLM70D 70 CFM with Humidity Sensor
SLM70ELED 70 CFM with Humidity Sensor
SLM70H 70 CFM with Humidity Sensor
*
Product is ENERGY STAR Most Efficient 2021 distinction
and ENERGY STAR qualified
Project Pack Components
SLM-A Fan Housing Can
SLM-AMTL Fan Housing Can with Metal Duct
SLM50-B 50 CFM Motor/Grille
SLM70-B 70 CFM Motor/Grille
Delta Breez Market AC Motor
Energy Use
(Watts)
45.2
6.4
Noise Level
(Sones)
Annual Energy
Cost per Fan (24/7)
1
$6.73
4.0
1.0
$47.56
Delta BreezSlim G2 Series
SLM80 80 CFM Single Speed
SLM100 100 CFM Single Speed
Delta Breez Market AC Motor
Energy Use
(Watts)
8.5
Noise Level
(Sones)
Annual Energy
Cost per Fan (24/7)
1 Calculations based upon U.S. average retail electricity at and HVI
testing labs. Actual results may vary
2 Based upon BreezSlim SLM50 vs. market AC motor fan
3 Based upon SLM 50 CFM vs. ENERGY STAR v4.0 criteria for residential
ventilating fans
0.6
1
$8.94
25.7
1.1
$27.02
Extraordinary performance in a small package
Weighing in at less than 5 lbs., the powerful yet compact Delta BreezSlim G1
sets the bar for performance in the popular small fan size of 7 ½” x 7 ¼” x 4” .
Operating at just 2 Sones or less, this quiet fan features Delta’s super reliable
brushless DC motor, and an LED indicator light so you know it’s running.
Perfect for retrot into an existing space UL and cUL listed for ceiling mount
and wall mount installation. Available in contractor packs.
Available with
metal pack adapter
Designer GrilleSLM70ELED
Available with
Project Pack Components
Delta BreezSlim G2
The second generation of BreezSlim adds 80 CFM and 100 CFM fans that
are suitable for both ceiling and sidewall applications. All BreezSlim fans
are ENERGY STAR® qualied and t
in a 4” wall. BreezSlim G2 models
include a 4” metal oval duct. An
enlarged grille on G2 models helps
relieve cutting errors. As with all
Delta Breez fans, G2 models also
feature an LED indicator light
underneath the grille to assure the
user that this quiet fan is running.
SLM80 and SLM100
Project Pack Components available SLM-A2 (housing) and SLM80-B
(motor grille) or SLM100-B (motor grille)
Innovative brushless DC motor design for long life, low noise, and low
power consumption
• Energy savings up to 85%
2
• 1 Sone – quiet operation in a 7 ½” x 7 ¼” bath fan
• 0.6 Sones – quiet operation in a 11 ¼” x 10 ½” x 4” bath fan
• Exceeds ENERGY STAR requirement by 217% in energy eciency
3
Page 2
Delta BreezSlim
Specications
Delta BreezSlim series ventilation fans deliver extraordinary power and performance in a compact design
that is especially suited for challenging space requirements. Can be either ceiling or wall mounted.
3"
4"
Perfectly quiet. Perfectly green.
10
11
”
¼
½
”
4”
7 ¼"
7 ½"
Fan Housing for SLM50 and SLM70
1 ¼"
9 ⁄"
10 ¾"
9 ⁄"
9 ⁄"
Fan Grille
Delta BreezSlim Series
Fan Speed Full Speed Full Speed Full Speed
Static Pressure (Inches w.g.)
Air Flow (CFM)
Sones
Power Consumption (Watts)
Energy Efficiency (CFM/Watt)
Current (Amps)
Power Rating (Volts/Hz)
LED Light (Watts)
Duct Diameter
Mounting Opening
Automatic Operation
Mounting Depth
Grille Size
Shipping Gross Weight (Lbs)
cUL Tub/Shower Enclosure
California Title 24 Compliant
Mfg in ISO 9001 Certified Factory
ENERGY STAR® Qualified
ENERGY STAR Most Efficient 2021
Warranty (Years) (Watts)
SLM50
0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
50 36 70 54 70 53 40 25 70 50 80 62 100 84
1.0 1.2 2.0 1.5 2.0 1.5 0.8 1.0 2.0 1.5 0.6 1.1 1.0 1.5
6.4 6.3 13.2 11.6 13.2 11.6 5.0 6.0 13.2 11.6 8.5 10.9 14.5 17.7
11.6 7.4 5.8 5.0 6.0 5.4 12.9 6.3 7.1 6.2 9.4 5.6 6.8 4.7
0.18 Max 0.29 Max 0.29 Max 0.29 Max 0.26 Max 0.30 Max
120/60 120/60 120/60 120/60 120/60 120/60
3" 3" 3" 3" 4” Oval 4” Oval
7.25” x 7.5” 7.25” x 7.5” 7.25” x 7.5” 7.25” x 7.5” 11.25” x 10.5” 11.25” x 10.5”
4" 4" 4" 4" 4” 4”
9.375” x 10.75” 9.375” x 10.75” 9.875” x 9.875” 9.375” x 10.75” 13”x13” 13”x13”
5 5 5 5 9.4 9.4
Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes
Yes Yes Yes Yes Yes Yes
Yes
3 3 3 3 3 3
SLM70 /
SLM70H
SLM70H
Yes (humidity)
SLM70ELED SLM70D
13.0
4” Oval duct
Fan Housing for SLM80 and SLM100
13”
Fan Grille
SLM80 SLM100
4” Oval Duct 4” Oval Duct
Continous
Low Speed
Full Speed Full Speed Full Speed
13”
46101 Fremont Blvd., Fremont, CA 94538
tel 1.888.979.9889 | www.deltabreez.com
Design and specifications subject to change without notice.
Delta BreezSlim Series - 02/2021
