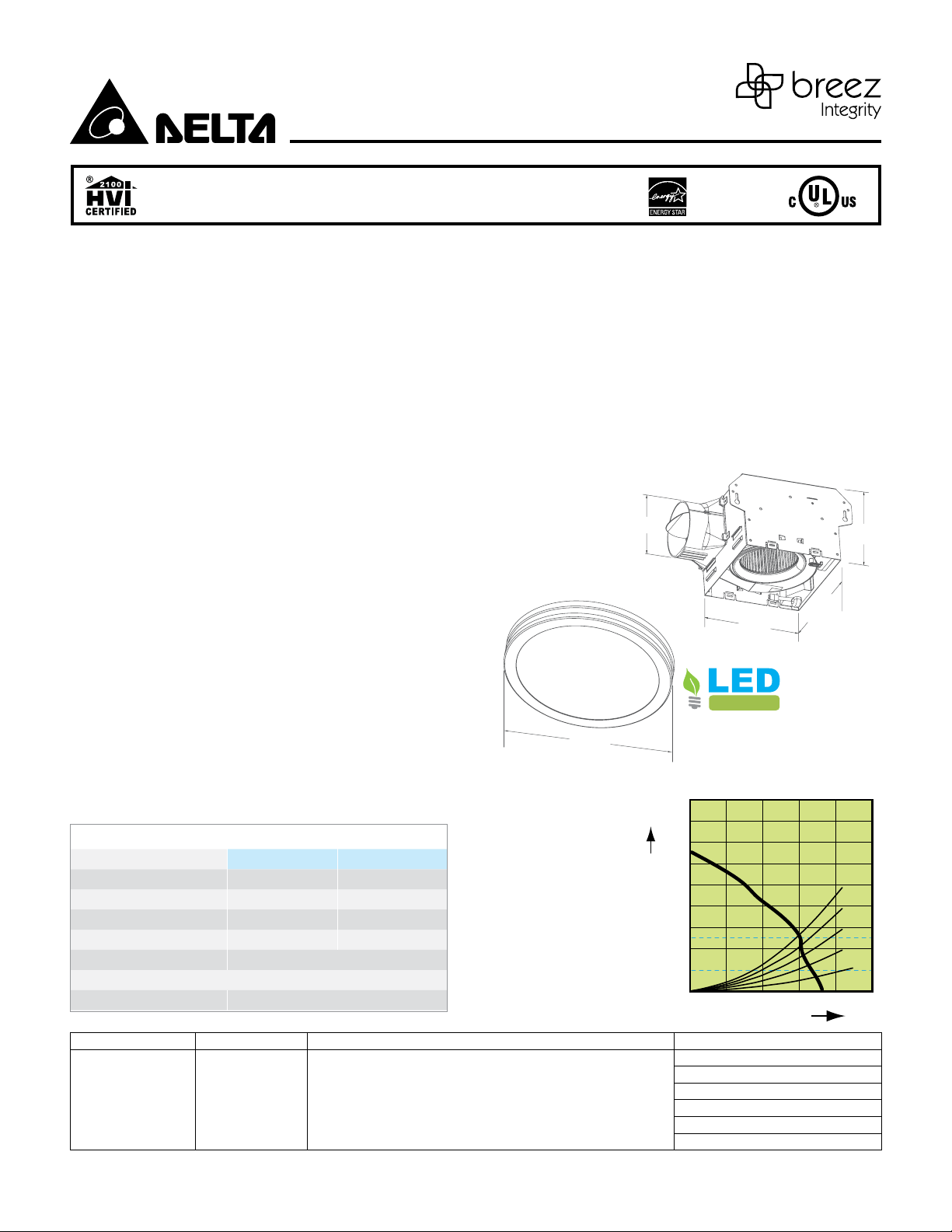

Delta Breez ITG100RLED Submittal Sheet

4” Duct (Standard):

Air Pressure (IN H

100 CFM/1.5 Sones @ 0.1” SP, 17.0 Watts
85 CFM/2.0 Sones @ 0.25” SP, 21.0 Watts

MODEL ITG100RLED

(Fan/LED Edge-Lit, Flat Round Panel - 100 CFM)

Description

Low noise ceiling mount ventilating Fan/LED Edge-Lit, Flat Round
Panel rated for continuous running. Fan has been awarded
ENERGY STAR® qualied. It is HVI, UL and cUL certied, and can
be used to comply with ASHRAE 62.2 (intermittent operation).

DC Motor/Blower

• Power rating of 120 volts/60Hz

• Brushless DC motor engineered to run continuously

• Motor equipped with thermal cuto fuse

• Removable with permanently lubricated plug-in motor

• Built-in soft start function to increase bearings’ life

• Automatically powers OFF when impeller is locked abnormally

TYPICAL SPECIFICATION

Ventilation fan shall be Breez model ITG100RLED ENERGY
STAR qualied with DC brushless motor engineered to run
continuously for a minimum 70,000 hours; airow rating
of 100 CFM and loudness rating of 1.5 Sones at 0.1 static
pressure as certied by the Home Ventilating Institute (HVI);
power consumption of 17.0 Watts with eciency rating of

7.5 CFM/Watts at 0.1” static pressure; motor lock protection
and selfcompensating motor speed for intended airow
when static pressure is encountered. UL and cUL listed for
tub/shower enclosure when used with GFCI-protected
branch circuit wiring.

• Self-compensating motor speed for intended airow
when static pressure is encountered

Housing

4"

• Galvanized steel body

• Detachable 4” diameter plastic duct adapter

• Built-in backdraft damper

• Easy installation

Grille

• Attractive design integrating with LED lighting

• Attaches directly to housing with torsion springs

Light

• 13-Watt integrated dimmable LED light lasts up to 30,000
hours

• Light output 1000 Lumens, 3000K

• Dimmable Lighting (dimmer switch not included)

Warranty

• 3-Year limited warranty

BreezIntegrity ITG100RLED 4” Duct (Standard)

Static Pressure (Inches w.g.) 0.1 0.25

Air Flow (CFM) 100 85

Sones 1.5 2.0

Power Consumption (Watts) 17.0 21.0

Energy Eciency (CFM/Watts) 7.5 5.9

Current (Amps) 0.47 Max

Power Rating (V/Hz) 120/60

LED Light (Watt) 13.0

Model Quantity Comments Project:

46101 Fremont Blvd. Fremont, CA 94538 | tel [phone] | www.deltabreez.com

11 4/5

"

ITG100RLED Fan Curve

0.90

0.80

0.70

0.60

O)

2

0.50

0.40

0.30

0.25

0.20

0.10

0

0 30.0 60.0 90.0 120.0 150.0

Location:
Architect:
Engineer:
Contractor:
Submitted by:
Date:

7 ¼

DIMMABLE

Air Flow (CFM)

5¾"

"

"

7 ½

50ft

40ft

30ft

20ft

10ft
