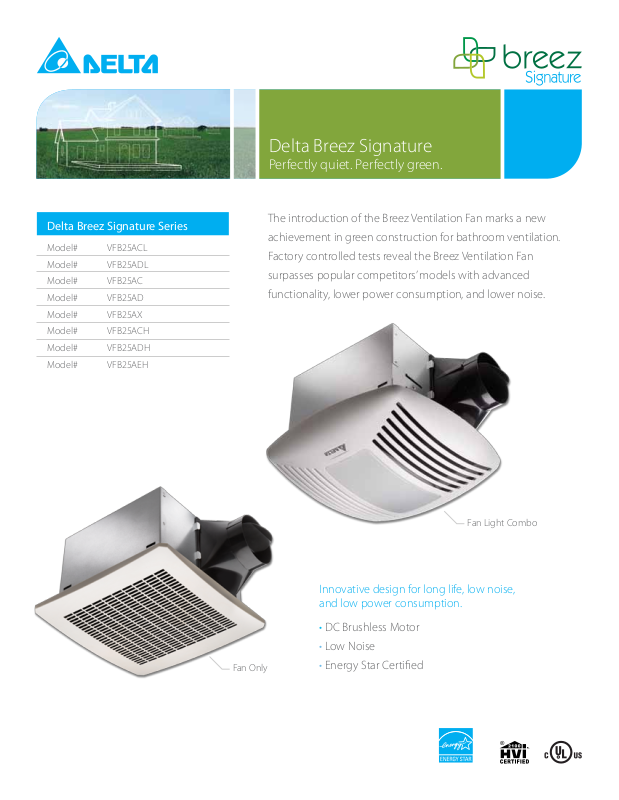

Delta Breez Signature
Perfectly quiet. Perfectly green.
Delta Breez Signature Series
Model# VFB25ACL
Model# VFB25ADL
Model# VFB25AC
Model# VFB25AD
Model# VFB25AX
Model# VFB25ACH
Model# VFB25ADH
Model# VFB25AEH
The introduction of the Breez Ventilation Fan marks a new
achievement in green construction for bathroom ventilation.
Factory controlled tests reveal the Breez Ventilation Fan
surpasses popular competitors’ models with advanced
functionality, lower power consumption, and lower noise.
Fan Only
Fan Light Combo
Innovative design for long life, low noise,
and low power consumption.
• DC Brushless Motor
• Low Noise
• Energy Star Certied
Page 2
Signature Series
The Breez Ventilation Fan is easy to install in new construction
or an existing bathroom to deliver an unobtrusive appliance
with aesthetically pleasing results.
9
8
.6
9
.0
4
.68
.9
7
Delta BreezSignature
Perfectly quiet. Perfectly green
12.36
12.36
8
Delta Breez Signature
Perfectly quiet. Perfectly green.
14
.0
4
1
.0
Delta Breez Signature Series VFB25ACL VFB25ADL VFB25AC VFB25AD VFB25AX VFB25ACH VFB25ADH VFB25AEH
Static Pressure (Inches w.g.) 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25 0.1 0.25
Air Flow (CFM) 80 49 110 89 80 52 110 79 80 53 110 89 80 52 110 79 130 107
Sones 0.6 1.0 1.1 1.4 <0.3 N/A 1.1 2.0 0.5 N/A 1.0 N/A <0.3 N/A 1.1 2.0 1.3 N/A
Power Consumption (Watts) 9.6 10.0 15.4 17.2 7.1 8.3 15.3 14.5 7.7 8.7 16.0 18.1 7.1 8.3 15.3 14.5 19.1 18.8
Energy Eciency (CFM/Watts) 8.5 5.0 7.1 5.2 11.7 6.5 7.3 5.5 10.4 6.1 7.0 5.0 11.7 6.5 7.3 5.5 7.1 5.9
Speed (RPM) 904 1095 1037 1213 876 1111 1010 1146 890 1082 1015 1189 876 1111 1010 1146 1083 1219
Dual Speed N/A N/A N/A N/A low high N/A N/A N/A
Current (Amps) 0.15 @ 120 Vac 0.26 @ 120 Vac 0.12 @ 110 Vac 0.22 @ 110 Vac 0.12 @ 110 Vac 0.22 @ 110 Vac 0.12 @ 110 Vac 0.22 @ 110 Vac 0.36 @ 110 Vac
Power Rating (V/Hz) 120/60 120/60 110~220/50~60 110~220/50~60 110~220/50~60 110~220/50~60 110~220/50~60 110~220/50~60 110~220/50~60
Duct Diameter (Inches) 4 4 4 4 4 4 4 4
Humidity Sensor N/A N/A N/A N/A N/A Ye s Yes Yes
Mounting Opening (Inches) 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98 9.68 x 9.98
Mounting Depth (Inches) 7.98 7.98 7.98 7.98 7.98 7.98 7.98 7.98
Grill Size (Inches Sq) 14.0 x 14.0 14.0 x 14.0 12.36 x 12.36 12.36 x 12.36 12.36 x 12.36 12.36 x 12.36 12.36 x 12.36 12.36 x 12.36
Light (Watts) 26 26 N/A N/A N/A N/A N/A N/A
Lamp Model# GU24 GU24 N/A N/A N/A N/A N/A N/A
Night-Light (Watts) 4 4 N/A N/A N/A N/A N/A N/A
Shipping Gross Weight (Lbs) 11.73 11.73 9.81 9.81 9.81 9.81 9.81 9.81
cUL Tub/Shower Enclosure Yes Yes Yes Yes Yes Yes Yes Yes
Washington State VIAQ Code Yes Yes Yes Yes Yes Yes Yes Yes
California Title 24 Compliant Yes Yes Yes Yes Yes Yes Yes Yes
Mfg in ISO 9001 Certied Factory Ye s Ye s Ye s Yes Yes Yes Yes Yes
Energy Star Certied Yes Ye s Ye s Ye s Yes Yes Yes Yes
Warranty (Years) 3 3 3 3 3 3 3 3
Design and specications subject to change without notice.
tel 1.888.979.9889 | www.deltabreez.com
Delta Breez Signature Series - 01/114405 Cushing Parkway | Fremont, CA 94538
