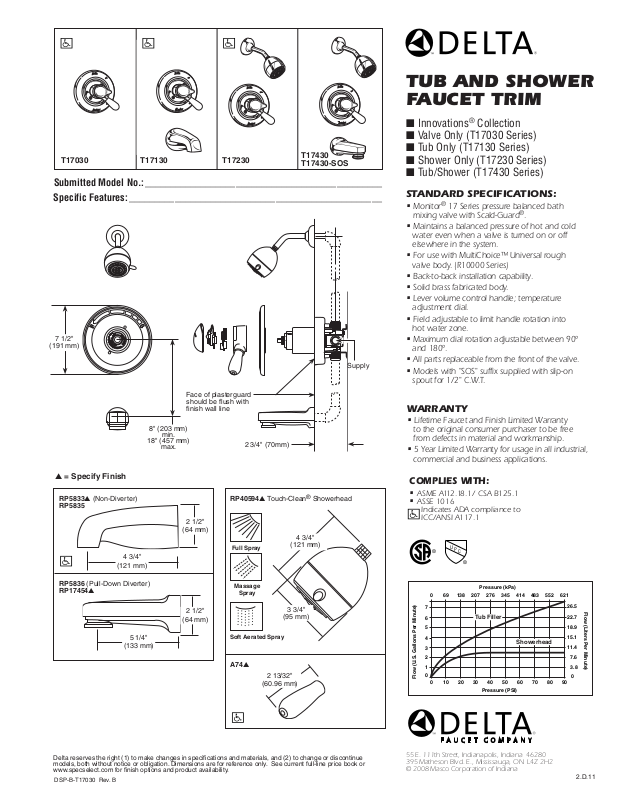

Delta T17030, T17130, T17230, T17430, T17430-SOS User Manual

T17030 T17130 T17230

0

1

2

3

4

5

0102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

6

069 138 207 276 345 414 483 552 621

0

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Minute)

Showerhead

7

26.5

Tub Filler

®

®

U

P

C

T17430
T17430-SOS

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

7 1/2"

(191 mm)

Supply

Face of plasterguard
should be flush with
finish wall line

8" (203 mm)

min.

▲ = Specify Finish

RP5833▲ (Non-Diverter)
RP5835

(121 mm)

4 3/4"

18" (457 mm)

max.

2 1/2"

(64 mm)

2 3/4" (70mm)

RP40594▲ Touch-Clean® Showerhead

4 3/4"

Full Spray

(121 mm)

Tub AND SHOWER
FAuCET TRIM

■ Innovations® Collection

■ Valve Only (T17030 Series)

■ Tub Only (T17130 Series)

■ Shower Only (T17230 Series)

■ Tub/Shower (T17430 Series)

STANDARD SPECIFICATIONS:

•

Monitor® 17 Series pressure balanced bath

mixing valve with Scald-Guard®.

•

Maintains a balanced pressure of hot and cold
water even when a valve is turned on or off
elsewhere in the system.

•

For use with MultiChoice™ Universal rough
valve body. (R10000 Series)

•

Back-to-back installation capability.

•

Solid brass fabricated body.

•

Lever volume control handle; temperature
adjustment dial.

•

Field adjustable to limit handle rotation into
hot water zone.

•

Maximum dial rotation adjustable between 90º
and 180º.

•

All parts replaceable from the front of the valve.

•

Models with "SOS" suffix supplied with slip-on
spout for 1/2" C.W.T.

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty
to the original consumer purchaser to be free
from defects in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial,
commercial and business applications.

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1

•

ASSE 1016

Indicates ADA compliance to
ICC/ANSI A117.1

RP5836 (Pull-Down Diverter)
RP17454▲

(133 mm)

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.

DSP-B-T17030 Rev. B

5 1/4"

2 1/2"

(64 mm)

Massage

Spray

Soft Aerated Spray

A74▲

2 13/32"

(60.96 mm)

3 3/4"

(95 mm)

55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana

2.D.11
