OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
1 Revision: S2
12/26/2006
www.deltaww.com
2.488Gbps Downstream/1.244Gbps Upstream
GPON ONU Transceiver
FEATURES
RoHS compliant
2x5 pin SFF package with SC/APC pigtail
fiber
Supports asymmetrical 2488 Mbps
downstream and 1244 Mbps upstream
1310nm Transmitter, 1490nm Receiver
Integrated with WDM filter to cut 1550nm and
1650nm optical signal off for Voice/Data FTTx
ONT/ONU applications
Single +3.3V power supply
LVPECL electrical signal interface, LVTTL
shutdown input and alarm output
Bellcore GR-468 compliant
Laser class 1 product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Description
DELTA’s high capacity GPON ONU transceiver
module is designed for Passive Optical Network
(PON) application, 2.488Gbps downstream and
1.244Gbps upstream. It is compliant with ITU-T
G.984.2 standard.
The GPON ONU transceiver is provided with SC
pigtail connector complied with SC connector
industry standard.
The module consists 1310nm un-cool DFB laser,
InGaAs/InP APD, Preamplifier and WDM filter in a
high-integrated optical sub-assembly, and it
receives up to 2.488Gbps of continuous data at
1490nm, and transmits 1.244Gbps of burst-mode
data at 1310nm.
Application
ITU-T G.984.2 compliant
GPON ONU Class B+
Burst mode application
FTTx WDM Broadband Access
Performance
OPGP-34-A4B3RA data link up to 20km in
9/125um single mode fiber.
The pre-bias time is less than 16bits.
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
2 Revision: S2
12/26/2006
www.deltaww.com
1. Absolute Maximum Ratings
Parameter Symbol Min. Typ. Max. Unit Note
Storage Temperature Ts -40 85 ºC
Storage Ambient Humidity HA 5 95 %
Power Supply Voltage VCC 0 5 V
Signal Input Voltage -0.3 Vcc+0.3 V
Optical Input Power (Peak) 7 dBm
Lead Soldering Temperature T
SOLD
260 ºC
Lead Soldering Time t
SOLD
10 sec
2. Recommended Operating Conditions
Parameter Symbol Min. Typ. Max. Unit Note
Operating Ambient Temperature TA -5 70 ºC
Ambient Humidity HA 5 90 %
Non-condensing
Power Supply Voltage VCC 3.13 3.3 3.47 V
Power Supply Current ICC 350 mA
Power Supply Noise Rejection 100 mVp-p
100Hz to 1MHz
Data Rate of Transmitter 1244.16 Mbps
Data Rate of Receiver 2488.32 Mbps
Line Code Scrambled NRZ
Transmission Distance 20 km
3. Specification of Transmitter
Parameter Symbol Min. Ty p. Max. Unit Note
+1 +5 dBm
B.O.L -Note (1)
Average Launched Power PO
+0.5 +5 dBm
E.O.L -Note (1)
Optical Extinction Ratio ER 10 dB
Center Wavelength
λ
C
1260 1310 1360 nm DFB Laser
-20dB Spectrum Width (RMS)
σ
0.3 1 nm
Side Mode Suppression Ratio SMSR 30 dB
Transmitter OFF Output Power P
Off
-45 dBm
Optical Rise/Fall Time tr/tf 200 ps Note (2)
Tx Enable Ton 16 bits 12.8ns
Tx Disable Toff 16 bits 12.8ns
Transmitter Reflectance -6 dB
Tolerance to the Transmitter’s
incident Light Power
-15 dB
Jitter Generation 0.33 UIp-p
4KHz~10MHz
Output Eye Mask
Compliant with ITU-T G.984.2
Note (3)
ORL of ODN at Oru and Ord 32 dB
Note (1). Launched power (avg.) is power coupled into a single mode fiber.
B.O.L = Begin of Life, E.O.L = End of Life
Note (2). These are unfiltered 20-80% values.
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
3 Revision: S2
12/26/2006
www.deltaww.com
Note (3). Transmitter eye mask definition
4. Specification of Receiver
Parameter Symbol Min. Ty p. Max. Unit Note
Input Optical Wavelength
λ
IN
1480 1500 nm APD
Receiver Sensitivity PIN
-28
dBm Note (1)
Input Saturation Power (Overload) P
SAT
-8 dBm
Signal Detect- Assert Power PA -28 dBm
Signal Detect- Deassert Power PD -38 dBm Note (2)
Signal Detect- Hysteresis PA-PD 0.5 2 4 dB
Consecutive Identical Bit Immunity 72 bits
Optical Crosstalk from Internal Laser Xopt -47 dB
Polarization Dependent Loss 0.5 dB
Tolerance to reflected optical power 10 dB
Receiver Reflectance -20 dB Note (3)
Output Data Rise/Fall time tr/tf 150 ps Note (4)
Optical Isolation of Receiver 40 dB
Note (1). Measured with 1490nm, ER=10dB; BER =<10
-10
@PRBS=223-1 NRZ without FEC
Note (2). When Signal Detect Deasserted, the data output is Low-level (fixed)
Note (3). When the terminal is viewed from the optical path, the reflection toward the optical path of the
optical signal with a central wavelength of 1480nm to 1500nm transmitted to terminal.
Note (4). These are 20%~80% values
Upstream Bit rate (Mbps) 1244.16Mbit/s
x1/x4 0.22/0.78
x2/x3 0.40/0.60
y1/y4 0.17/0.83
y2/y3 0.20/0.80
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
4 Revision: S2
12/26/2006
www.deltaww.com
5. Electrical Interface Characteristics
Parameter Symbol Min. Ty p. Max. Unit Note
Transmitter
Total Supply Current ICC A mA Note (1)
Differential line input Impedance RIN 80 100 120 Ohm
Differential Data Input Swing VDT 400 2000 mV
p-p
Data Input Voltage- High VIH-VCC -1.165 -0.880 V
Data Input Voltage- Low VIL-VCC -1.810 -1.475 V
LVPECL
BiasCNT Input Voltage- High V
BCNTH
2 VCC
BiasCNT Input Voltage- Low V
BCNTL
0 0.8
LVTTL
Receiver
Total Supply Current ICC B mA Note (1)
Differential Data Output Swing VDR 700 900 mV
p-p
Note (2)
Signal Detect Output Voltage-High V
LOSH
2 VCC+0.3 V
Signal Detect Output Voltage-Low V
LOSL
0 0.8 V
LVTTL
Note (1). A (TX)+ B (RX) = 350mA (Not include termination circuit)
Note (2). Internally AC coupled, but requires a 100Ohm differential termination at or internal to Serializer/
Deserializer.
6. Transmitter Burst Mode Timing Characteristics
VccT BiasCNT Data Input Optical Output
VccT < 3.135V X X OFF
Low X OFF
No Other
VccT > 3.135V
High
Yes Laser bias and modulation signal output
X = Don’t care
Other = Less than +8dBm (peak)
High = Logic high level, Low = logic low level
No = Data NOT Present, Yes = Data Present,
OFF = Optical Power is less than –45dBm
Preamble
Payload
To n < 1 6 b i ts
BiasCNT
TD (p)
Optical Output
Tof f < 1 6 b it s
Tx Enable
Tx Disable
Within 15% of steady state
Ton/Toff Time Definition
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
5 Revision: S2
12/26/2006
www.deltaww.com
7. Pin Description
Tx/Rx Pin No. I/O Pin Name Description
1
VeeR
Receiver Ground
2
VccR
+3.3V Receiver Power Supply
3 O
SD Normal Optical Input indicated by logic “High”, and No Optical
Input indicated by logic “Low”. (LVTTL)
4 O
RD(n)
Inverted Receiver Data Output (AC-Coupled CML output)
Rx
5 O
RD(p)
Non-Inverted Receiver Data Output (AC-Coupled CML output)
6
VccT
+3.3V Transmitter Power Supply
7
VeeT
Transmitter Ground
8 I
BiasCNT
Positive pulse which control the ONU burst mode operation
9 I
TD(p)
Non-Inverted Transmitter Data Input (DC-Coupled LVPECL input)
Tx
10 I
TD(n)
Inverted Transmitter Data Input (DC-Coupled LVPECL input)
MS
Mounting studs/ connect this pin to Chassis ground
Bottom View
MS
MS
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
6 Revision: S2
12/26/2006
www.deltaww.com
8. Recommended Interface Circuit
Transmitter
100ohm
9. TD(p)
10. TD(n)
8. BiasCNT
6. VccT
7. VeeT
Receiver
100nF
100nF
1. VeeR
5. RD(p)
4. RD(n)
3. SD
2. VccR
100nF
10uF 100nF
10uF
100nF
1uH
1uH
3.3V
Protocol IC
SerDes IC
100ohm
SD
DELTA GPON ONU Module
Z0=50ohm
Z0=50ohm
Z0=50ohm
Z0=50ohm
RES
VccR
* RES is the internal 4.7K to 10K Ohms pull-up resistor.
Laser ON_P
Laser ON_N
Z0=50ohm
Z0=50ohm
100ohm
LVPECL/LVTTL
Translator
MC100LVELT23
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
7 Revision: S2
12/26/2006
www.deltaww.com

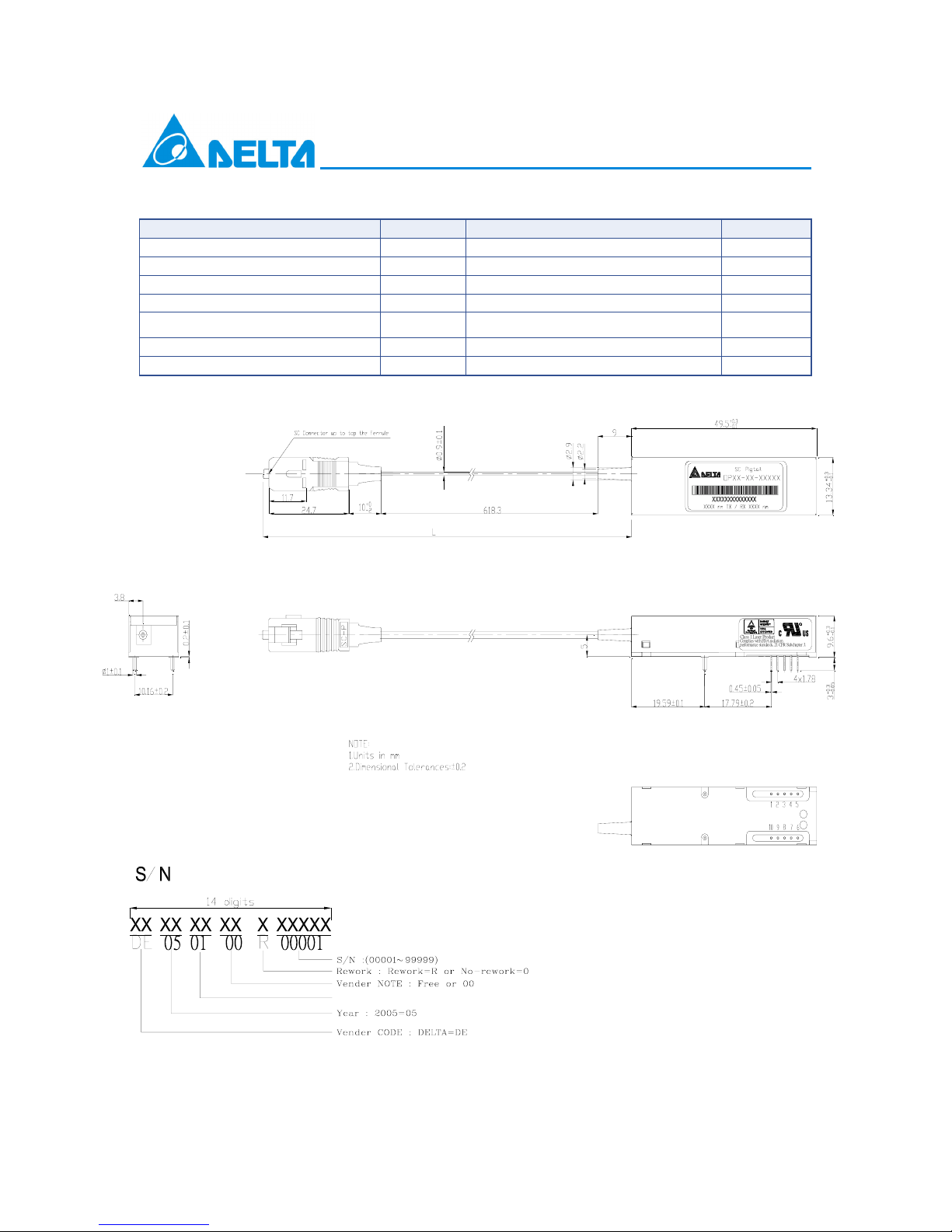

9. Outline Dimensions
Parameter Unit Description Note
Mechanical Dimensions mm 49.5x13.34x9.6
Connector Type - SC/APC Cone type connector
Minimum Fiber Bending Radius mm 20
Maximum Fiber Contact Temperature ºC 85
Tensile Force on Pigtail Kg 1
Maximum Fiber Stress Allowance kpsi 200
Fiber length (L) mm
664.3±10
Complies with FDA radiation
performance standards, 21 CFR Subchapter J.
Class 1 Laser Product
Week (52Weeks/Year) : 1月2日=01
OPGP-34-A4B3RA
DELTA ELECTRONICS, INC.
8 Revision: S2
12/26/2006
www.deltaww.com
10. Regulatory Compliance
Feature Test Meth od Reference Performance
Human Body Model
(HBM)
MIL-STD-883E Method 3015.7
EIA-JESD22-A114
Electrostatic Discharge
(ESD) to the Electrical
Pins
Machine Model (MM) EIA-JESD22-A115
Contact Discharge IEC/EN 61000-4-2 Electrostatic Discharge
(ESD) to the Simplex
Receptacle
Air Discharge
IEC/EN 61000-4-2
Radio Frequency
Electromagnetic Field
Immunity
IEC/EN 61000-4-3
Electromagnetic
Interference (EMI)
FCC Part 15 Class B
EN 55022 Class B
(CISPR 22A)
(1) Satisfied with
electrical
characteristics of
product spec.
(2) No physical damage
Laser Eye Safety
FDA/CDRH
TUV
FDA 21CFR 1040.10, 1040.11
IEC/EN 60825-1
IEC/EN 60825-2
CDRH File # 0420993
TUV Certificate #
R50032471
Component Recognition
TUV
UL/CSA
IEC/EN 60950
UL 60950
UL File # E239394
Appendix A. Document Revision
Version No. Date Description
S0 2006-06-27 Preliminary datasheet
S1 2006-09-20 Update recommended interface circuit and SD level
S2 2006-12-26 Update fiber pigtail length and product picture
