1
Doc. No. 121-OA0901001-EN00
of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
www.deltaww.com.tw

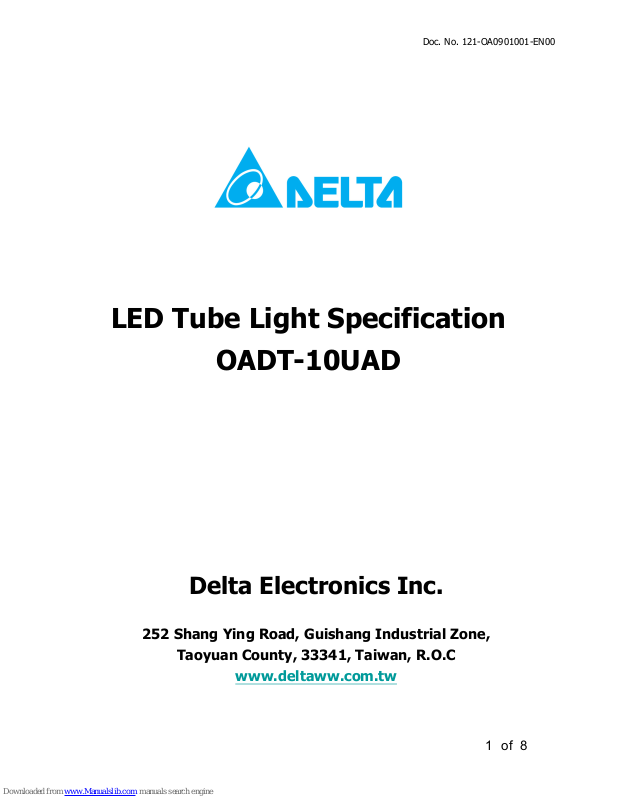

LED Tube Light Specification
OADT-10UAD
2 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
CONTENT
1. OUTLOOK
2. APPLICATION
3. FEATURES
4. OPERATION CONDITION
5. SPECIFICATION
6. PHOTOMETRY
7. PRODUCT CODE DEFINITION
8. MATERIAL FINISH
9. ASSEMBLY AND INSTALLATION
10. WARNING
11. WARRANTEE
12. ENVIRONMENTAL AND ECONOMIC
BENIFIT
3 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
OUTLOOK
3D Birdview
Top View
Side View
Bottom View
4 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
SPECIFICATION
Optical
Mechanical and Dimension
Electrical
OPERATION CONDITION
Operation ambient temperature -40oC to +50oC
Input voltage 100V~240V AC, 50/60Hz
18lux @8mAverage illumination
70CRI
Cool DaylightCCT
900 LmBrightness
300g Weight
Φ
=32.5mm L=580mmDimension
Warm white:56 lm/Watt
Neutral white: 69 lm/Watt
Luminaire Efficacy
> 0.9Power Factor
10WattPower Consumption
100V~240V AC, 50/60HzInput Voltage
APPLICATIONS
House Lighting
Office Lighting
Store Lighting
FEATURES
Easy to install on T8 fluorescence tube socket.
System design with integration of power and LED tube light
Good thermal dissipation design.
Over 70% lumen maintenance at 50,000 hours (LED life 50,000 hours) at max
acceptable ambient temperature
5 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
PHOTOMETRY
Cut-off Light Pattern(?)
Illuminance
6 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
1.SERIES CODE
OADT ： OA Lighting
2.Input Power
10 ：10W
20 ：20W
3.Input voltage
U ：100-240V AC
E ：200-240V AC
A ：100-120V AC
4. Lamp dimension
A ：60
B ：120
C ：30x60
D ：60x60
E ：30x120
F ：60x120
5.Cover type
T ：Transparent
D ：Diffuse
M ：Microlens
6.COLOR
W ：Warm white
N ：Neutral white
D ：Daylight
7.Features
P ：Premium (PFC+TRAIC Dimming)
C ：Commercial (only PFC)
S ：Step dimming
D ：TRAIC Dimming
B ：Basic (not dimmable, no PFC)
8.LED supplier
9. Binning
O A D T 1 0 A DU D X XB
12346895 7
PRODUCT CODE DEFINITION
MATERIALS AND FINISH
Ten high brightness LEDs per tube light
Anodized cast aluminum heatsink
300mA constant current driver
7 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
ASSEMBLY AND INSTALLATION
Assembly
Installation
Installation
8 of 8
Delta Electronics Inc.
252 Shang Ying Road, Guishang Industrial Zone,
Taoyuan County, 33341, Taiwan, R.O.C
Doc. No. 121-OA0901001-EN00
WARNING
Not suitable for high temperature and moisture area.
Not suitable for close system fixture.
Do not use inappropriate power supply.
WARRANTY
3 years of the entire system (power, LED tube light) with no mechanical damage
under normal operation condition
LED lumen degradation within 20% in 3 years (reference TW environment only)
ENVIRONMENTAL AND ECONOMIC BENIFIT
End of Specification
Power Consumption (W) 18 10
Power (kW) 0.018 0.01
% 100% 56%
Power Consumption Per Year kWh, 12hr/day light on 79 44
Power Saving Per Year (kWh) 35
Mone y Saving Per Yea r (USD) $0.15/kW h 5
3-Year Saving (USD) 16
3-Year Maintain Fee T8 tube $0.75(×3year s) 2.25 0
3-Year Total Money Saving (USD) 18
3-Year Total CO2 Emission S aving (Kg) 0.736Kg CO2/kWh 77
Ene r gy S aving
Energy Comparison 600mm T8 tube OADT-10AUDDB
