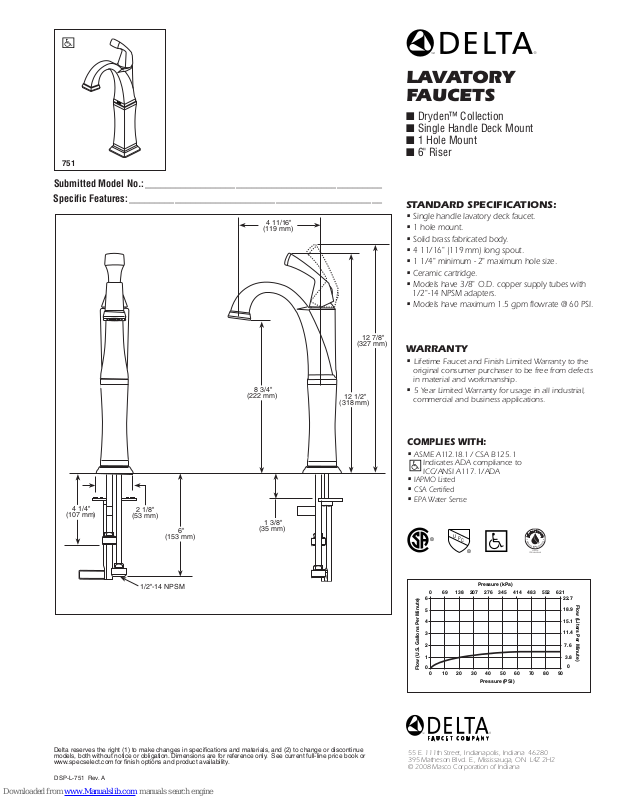

Delta Dryden 751 Specification Sheet

0

1

2

3

4

5

0102030405060708090

Pressure (PSI)

Flow (U.S. Gallons Per Minute)

6

069 138 207 276 345 414 483 552 621

0

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow (Liters Per Minute)

751

®

®

U

P

C

Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________

4 11/16"

(119 mm)

12 7/8"

(327 mm)

8 3/4"

(222 mm)

12 1/2"

(318 mm)

Lavatory
FaUCEtS

■ Dryden™ Collection

■ Single Handle Deck Mount

■ 1 Hole Mount

■ 6" Riser

STANDARD SPECIFICATIONS:

•

Single handle lavatory deck faucet.

•

1 hole mount.

•

Solid brass fabricated body.

•

4 11/16" (119 mm) long spout.

•

1 1/4" minimum - 2" maximum hole size.

•

Ceramic cartridge.

•

Models have 3/8" O.D. copper supply tubes with

1/2"-14 NPSM adapters.

•

Models have maximum 1.5 gpm flowrate @ 60 PSI.

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial,
commercial and business applications.

4 1/4"

(107 mm)

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.

DSP-L-751 Rev. A

2 1/8"

(53 mm)

1/2"-14 NPSM

6"

(153 mm)

1 3/8"

(35 mm)

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1
Indicates ADA compliance to
ICC/ANSI A117.1/ADA

•

IAPMO Listed

•

CSA Certified

•

EPA Water Sense

55 E. 111th Street, Indianapolis, Indiana 46280
395 Matheson Blvd. E., Mississauga, ON L4Z 2H2
© 2008 Masco Corporation of Indiana
