Delta DLT8141 Specifications

▲

= Adjustable H2Okinetic™ Spray (AH2O)

= Soft Full Spray (SF)

= Shampoo Rinsing Spray (SR)

= Shampoo Rinsing

Spray

w/Massage (SRM)

=

Full Spray w/Massage (FSM)

= High-Efficiency Spray (HE)

= Crossing Full Spray (CF)

= Crossing Full Spray w/Massage (CFM)

= Fast Massage (FM)

= Soft Drench w/Full Spray (SDF)

= Soft Drench Spray (SD)

= Pause (P)

= Full Body Spray (FB)

= Adjustable Full Spray (AF)

SR

CF

CFM

HE

SDF

AF

SRM

SF

FB

SD

P

FSM

FM

= Massage Spray (M)

M

= Slow Massage (SM)

SM

= H

2

Okinetic™ Spray (H2O)

H

2

O

= Soft Drench Spray w/Massage (SDM)

SDM

AH

2

O

52664
52664-▲20

Submitted Model No.:

Specic Features:

3 15/16"
(99 mm)

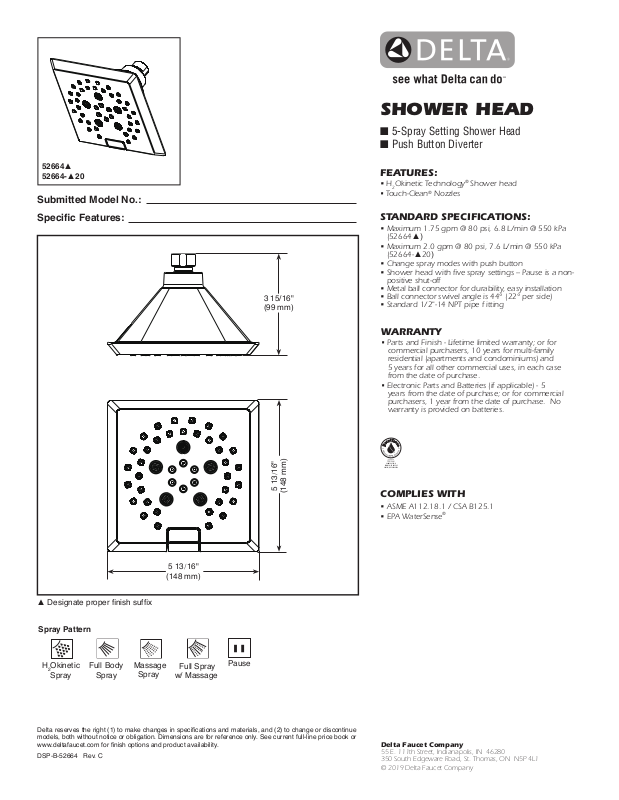

SHOWER HEAD

■ 5-Spray Setting Shower Head

■ Push Button Diverter

FEATURES:

• H2Okinetic Technology® Shower head

•

Touch-Clean® Nozzles

STANDARD SPECIFICATIONS:

• Maximum 1.75 gpm @ 80 psi, 6.8 L/min @ 550 kPa
(52664

• Maximum 2.0 gpm @ 80 psi, 7.6 L/min @ 550 kPa
(52664-▲20

• Change spray modes with push button

• Shower head with five spray settings -- Pause is a non­ positive shut-off

• Metal ball connector for durability, easy installation

• Ball connector swivel angle is 44° (22° per side)

• Standard 1/2"-14 NPT pipe f itting

WARRANTY

•
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.

•
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.

▲)

)

Parts and Finish - Lifetime limited warranty; or for

Electronic Parts and Batteries (if applicable) - 5

▲ Designate proper nish sufx

Spray Pattern

H2Okinetic

Spray

Full Body
Spray

Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.

DSP-B-52664 Rev. C

Massage

Spray

5 13/16"
(148 mm)

Full Spray
w/ Massage

16"

/

5 13

(148 mm)

Pause

SHOWER HEAD(S)

POMME(S) DE DOUCHE

CABEZA(S) DE REGADERA

COMPLIES WITH

• ASME A112.18.1 / CSA B125.1

• EPA WaterSense

Delta Faucet Company

55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1

© 2019 Delta Faucet Company

®
