51600▲
Submitted Model No.:
Specific Features:
6 5/8"
(168 mm)
3 1/2"
(89 mm)
1 5/8"
(41 mm)
2 3/16"
(54 mm)

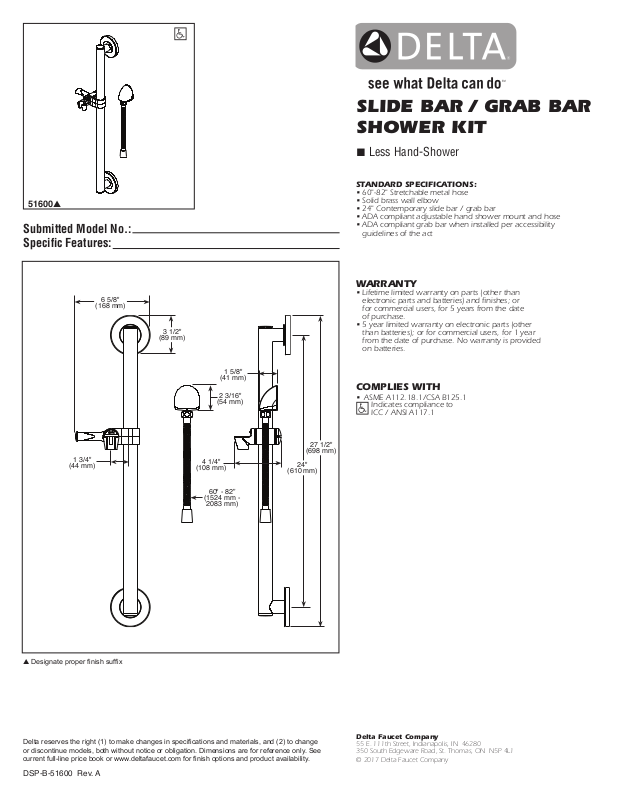

SLIDE BAR / GRAB BAR
SHOWER KIT
■ Less Hand-Shower
STANDARD SPECIFICATIONS:
• 60"-82" Stretchable metal hose
• Solid brass wall elbow
• 24" Contemporary slide bar / grab bar
• ADA compliant adjustable hand shower mount and hose
• ADA compliant grab bar when installed per accessibility
guidelines of the act
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes; or
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
COMPLIES WITH
• ASME A112.18.1/CSA B125.1
Indicates compliance to
ICC / ANSI A117.1
27 1/2"
1 3/4"
(44 mm)
▲ Designate proper nish sufx
Delta reserves the right (1) to make changes in specications and materials, and (2) to change
or discontinue models, both without notice or obligation. Dimensions are for reference only. See
current full-line price book or www.deltafaucet.com for nish options and product availability.
DSP-B-51600 Rev. A
4 1/4"
(108 mm)
60" - 82”
(1524 mm -
2083 mm)
(698 mm)
24"
(610 mm)
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Delta Faucet Company
