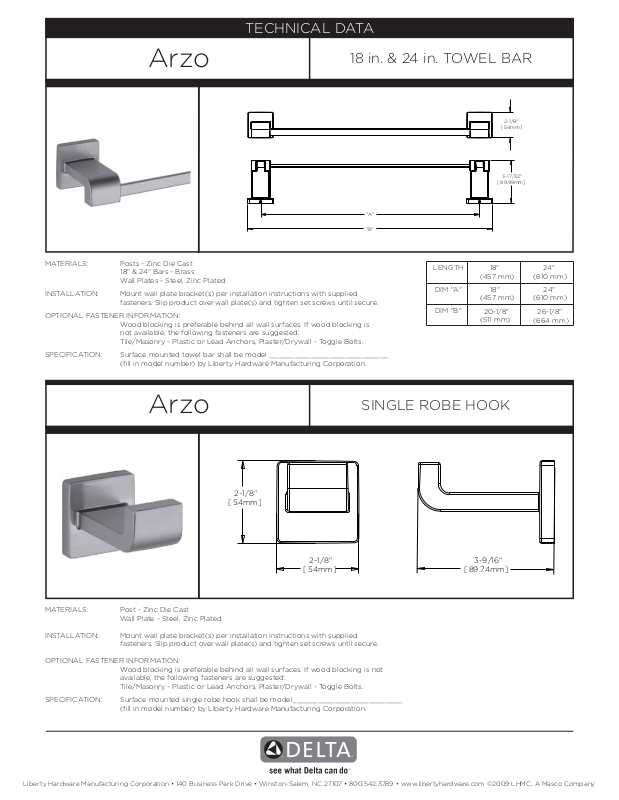

TECHNICAL DATA
Arzo
MATERIALS: Posts - Zinc Die Cast
18" & 24" Bars - Brass
Wall Plates - Steel, Zinc Plated
INSTALLATION: Mount wall plate bracket(s) per installation instructions with supplied
fasteners. Slip product over wall plate(s) and tighten set screws until secure.
OPTIONAL FASTENER INFORMATION:
Wood blocking is preferable behind all wall surfaces. If wood blocking is
not available, the following fasteners are suggested:
Tile/Masonry - Plastic or Lead Anchors, Plaster/Drywall - Toggle Bolts.
SPECIFICATION: Surface mounted towel bar shall be model ____________________________
(fill in model number) by Liberty Hardware Manufacturing Corporation.
18 in. & 24 in. TOWEL BAR
"A"
"B"
DIM "B"
2-1/8"
[ mm]54
3-17/32"
[ mm]89.99
18"LENGTH
18"DIM "A"
(457 mm)
20-1/8"
(511 mm)
24"
(610 mm)(457 mm)
24"
(610 mm)
26-1/8"
(664 mm)
