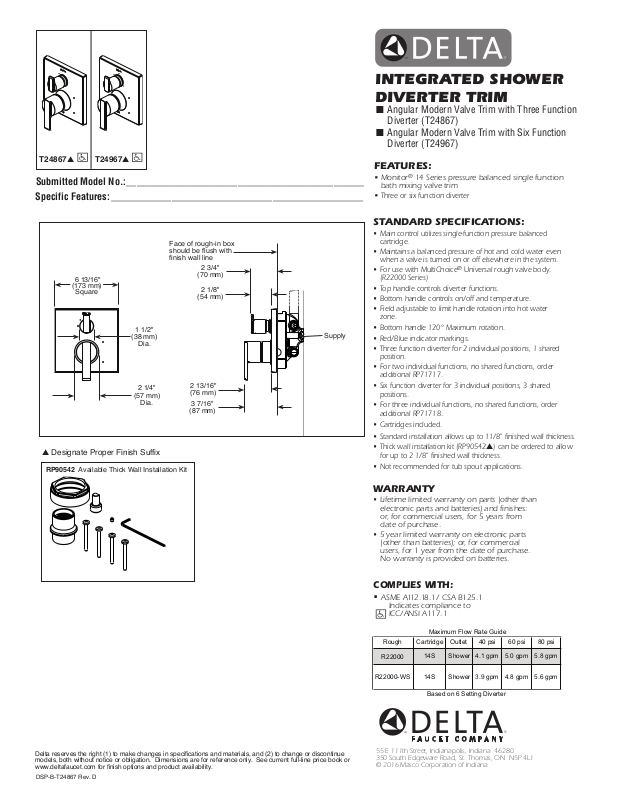

T24867▲ T24967▲
Maximum Flow Rate Guide
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Face of rough-in box
should be flush with
finish wall line
6 13/16"
(173 mm)
Square
1 1/2"
(38 mm)
Dia.
2 1/4"
(57 mm)
Dia.
▲ Designate Proper Finish Suffix
RP90542 Available Thick Wall Installation Kit
2 3/4"
(70 mm)
2 1/8"
(54 mm)
2 13/16"
(76 mm)
3 7/16"
(87 mm)
Supply
INTEGRATED SHOWER
DIVERTER TRIM
■ Angular Modern Valve Trim with Three Function
Diverter (T24867)
■ Angular Modern Valve Trim with Six Function
Diverter (T24967)
FEATURES:
• Monitor® 14 Series pressure balanced single function
bath mixing valve trim
•
Three or six function diverter
STANDARD SPECIFICATIONS:
• Main control utilizes single-function pressure balanced
cartridge.
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice
(R22000 Series)
• Top handle controls diverter functions.
• Bottom handle controls on/off and temperature.
• Field adjustable to limit handle rotation into hot water
zone.
• Bottom handle 120° Maximum rotation.
• Red/Blue indicator markings.
• Three function diverter for 2 individual positions, 1 shared
position.
• For two individual functions, no shared functions, order
additional RP71717.
• Six function diverter for 3 individual positions, 3 shared
positions.
• For three individual functions, no shared functions, order
additional RP71718.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit (RP90542
for up to 2 1/8" finished wall thickness.
• Not recommended for tub spout applications.
®
Universal rough valve body.
▲
) can be ordered to allow
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T24867 Rev. D
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
Rough Cartridge Outlet 40 psi 60 psi 80 psi
R22000
R22000-WS 14SShower 3.9 gpm 4.8 gpm 5.6 gpm
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
14SShower 4.1 gpm 5.0 gpm 5.8 gpm
Based on 6 Setting Diverter
