Flow (U.S. Gallons Per Minute)
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
T14074▲ T14274▲ T14474▲
T14274-▲LHD T14474-▲LHD
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6 9/16"
(167 mm)
8" (203 mm)
min.
18" (457 mm)
max.
▲ Designate Proper Finish Suffix
RP84412▲ (Pull-Up Diverter)
2 3/4"
(70mm)
6"
RP87251▲ (Non Diverter)
(152 mm)
6"
(152 mm)
2 3/4"
(70mm)
Face of plasterguard
should be flush with
finish wall line
52684▲ 2.0 GPM H2O Showerhead
Full Body
Spray
H2Okinetic
Spray
Pause
RP77991 Available Extension Kit
3 3/16"
(81 mm)
7 5/8"
(194 mm)
Supply
2 3/4"
(70 mm)

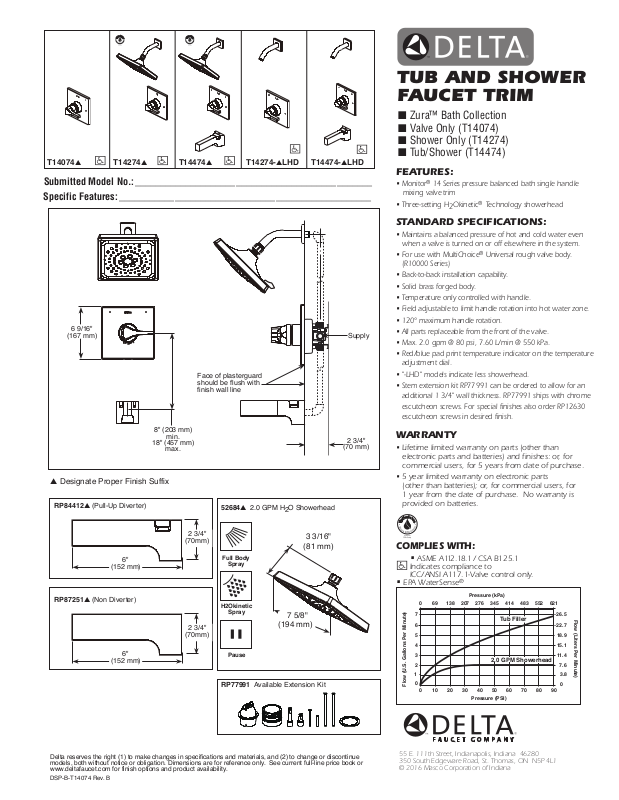

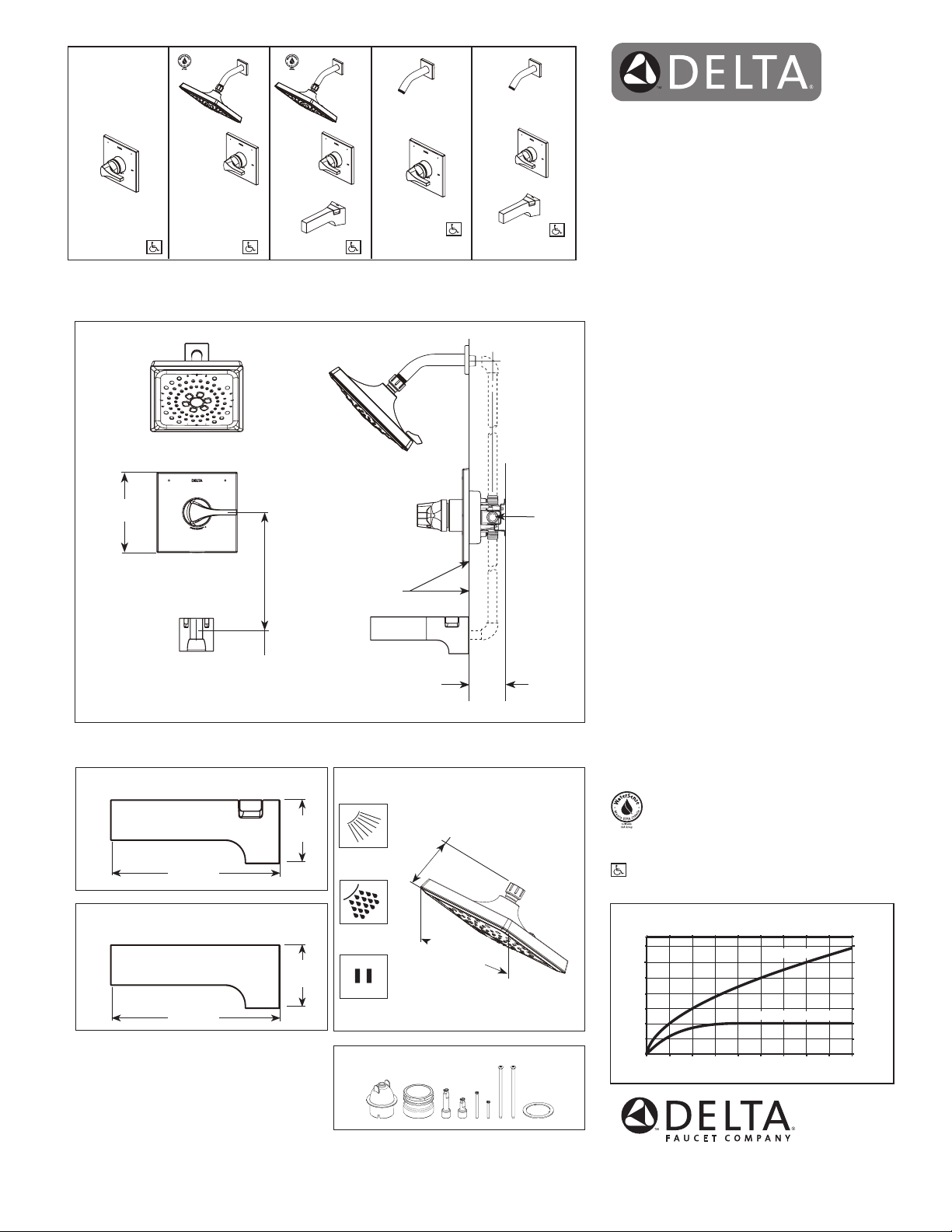

TUB AND SHOWER
FAUCET TRIM
■ Zura™ Bath Collection
■ Valve Only (T14074)
■ Shower Only (T14274)
■ Tub/Shower (T14474)
FEATURES:
• Monitor® 14 Series pressure balanced bath single handle
mixing valve trim
• Three-setting H2Okinetic
®
Technology
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice
(R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with handle.
• Field adjustable to limit handle rotation into hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
•
Max. 2.0 gpm @ 80 psi, 7.60 L/min @ 550 kPa.
• Red/blue pad print temperature indicator on the temperature
adjustment dial.
• "-LHD" models indicate less showerhead.
• Stem extension kit RP77991 can be ordered to allow for an
additional 1 3/4" wall thickness. RP77991 ships with chrome
escutcheon screws. For special finishes also order RP12630
escutcheon screws in desired finish.
®
Universal rough valve body.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes: or, for
commercial users, for 5 years from date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial users, for
1 year from the date of purchase. No warranty is
provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1-Valve control only.
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
0102030405060708090
®
Pressure (kPa)
2.0 GPM Showerhead
Pressure (PSI)
Tub Filler
showerhead
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14074 Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
