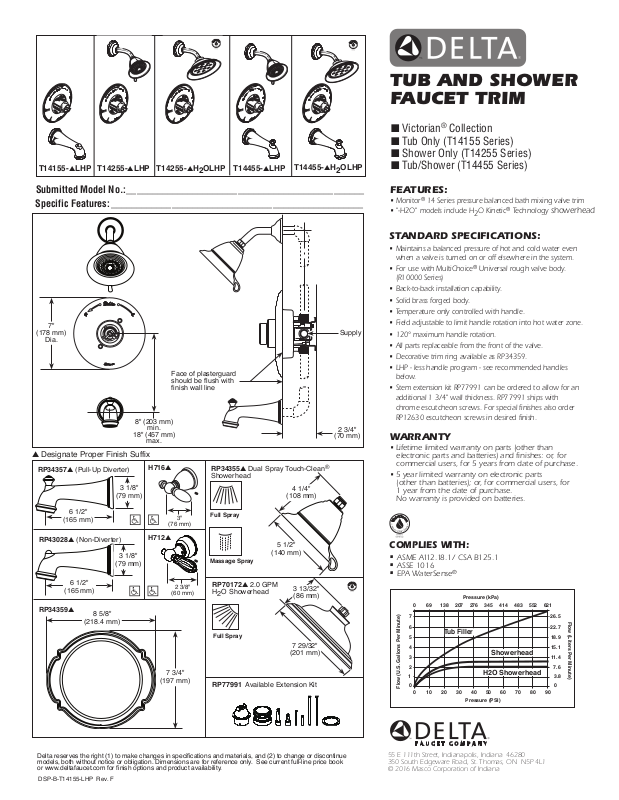

T14155-sLHP
G
T14255-sLHP T14455-sLHP
T14255-sH2OLHP
T14455-sH2OLHP
TUB AND SHOWER
FAUCET TRIM
■ Victorian® Collection
■ Tub Only (T14155 Series)
■ Shower Only (T14255 Series)
■ Tub/Shower (T14455 Series)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
7"
(178 mm)
Dia.
8" (203 mm)
18" (457 mm)
s Designate Proper Finish Suffix
RP34357s (Pull-Up Diverter)
3 1/8"
(79 mm)
6 1/2"
(165 mm)
RP43028s (Non-Diverter)
3 1/8"
(79 mm)
6 1/2"
(165 mm)
RP34359s
8 5/8"
(218.4 mm)
Face of plasterguard
should be flush with
finish wall line
min.
max.
H716s
3"
(76 mm)
H712s
2 3/8"
(60 mm)
7 3/4"
(197 mm)
RP34355s Dual Spray Touch-Clean
Showerhead
4 1/4"
(108 mm)
Full Spray
5 1/2"
Massage Spray
RP70172s 2.0 GPM
H2O Showerhead
Full Spray
RP77991 Available Extension Kit
(140 mm)
7 29/32"
(201 mm)
3 13/32"
(86 mm)
®
Supply
2 3/4"
(70 mm)
FEATURES:
• Monitor® 14 Series pressure balanced bath mixing valve trim
• "-H2O" models include H2O Kinetic
®
Technology
showerhead
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
®
• For use with MultiChoice
Universal rough valve body.
(R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with handle.
• Field adjustable to limit handle rotation into hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• Decorative trim ring available as RP34359.
• LHP - less handle program - see recommended handles
below.
• Stem extension kit RP77991 can be ordered to allow for an
additional 1 3/4" wall thickness. RP77991 ships with
chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes: or, for
commercial users, for 5 years from date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial users, for
1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
•
EPA WaterSense
0 69 138 207 276 345 414 483 552 621
7
6
5
4
allons Per Minute)
3
2
1
0
Flow (U.S.
0 10 20 30 40 50 60 70 80 90
®
Pressure (kPa)
Tub Filler
Showerhead
H2O Showerhead
Pressure (PSI)
26.5
22.7
18.9
15.1
11.4
7.6
Flow (Liters Per Minute)
3.8
0
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book
or www.deltafaucet.com for finish options and product availability.
DSP-B-T14155-LHP Rev. F
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
