T11874▲
T11974▲
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
3"
(76 mm)
5 1/4"
(133 mm)
2 13/32"
(61 mm)
2"~2 3/4"
(51~70 mm)
Supply
C/L Supply Line
2 13/32"
(61 mm)
2"~2 3/4"
(51~70 mm)
Supply
C/L Supply Line
T11874▲
T11974▲
4 1/2"
(114 mm)
Square
4 1/2"
(114 mm)
Square
5 1/4"
(133 mm)
3"
(76 mm)

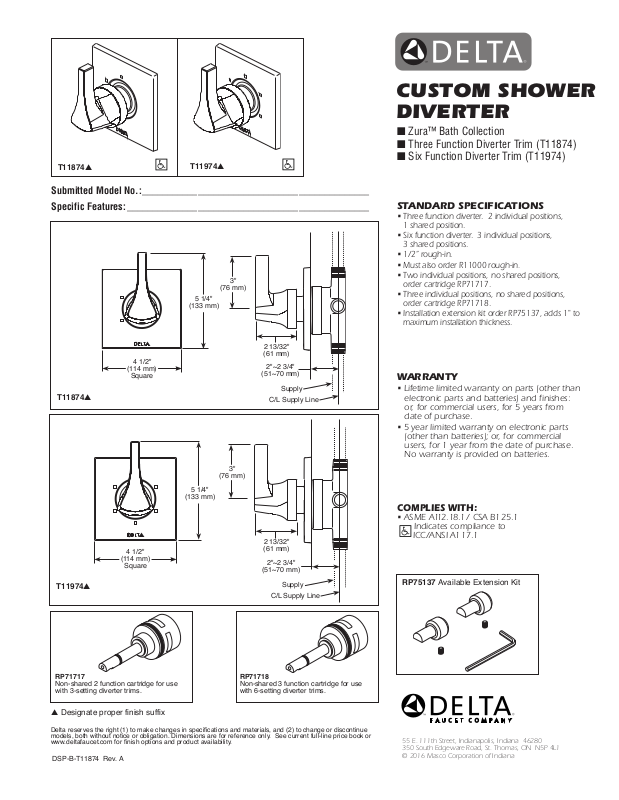

CUSTOM SHOWER
DIVERTER
■ Zura™ Bath Collection
■ Three Function Diverter Trim (T11874)
■ Six Function Diverter Trim (T11974)
STANDARD SPECIFICATIONS
• Three function diverter. 2 individual positions,
1 shared position.
• Six function diverter. 3 individual positions,
3 shared positions.
• 1/2” rough-in.
• Must also order R11000 rough-in
• Two individual positions, no shared positions,
order cartridge RP71717.
• Three individual positions, no shared positions,
order cartridge RP71718.
• Installation extension kit order RP75137, adds 1" to
maximum installation thickness.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
RP75137 Available Extension Kit
.
RP71717
Non-shared 2 function cartridge for use
with 3-setting diverter trims.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T11874 Rev. A
RP71718
Non-shared 3 function cartridge for use
with 6-setting diverter trims.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
