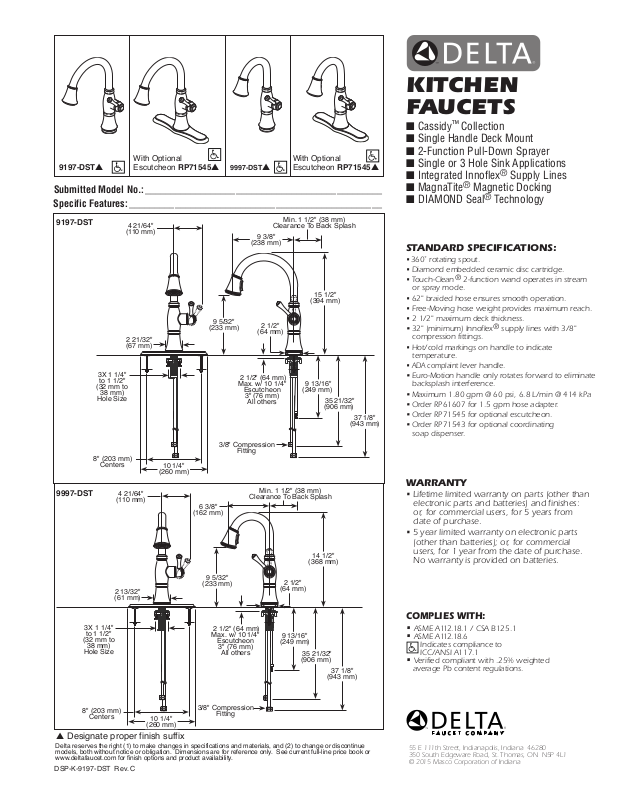

9197-DST▲
With Optional
Escutcheon RP71545▲
9997-DST▲
With Optional
Escutcheon RP71545▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
9197-DST
9997-DST
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
4 21/64"
(110 mm)
2 13/32"
(61 mm)
4 21/64"
(110 mm)
2 21/32"
(67 mm)
10 1/4"
(260 mm)
9 5/32"
(233 mm)
6 3/8"
(162 mm)
9 5/32"
(233 mm)
(238 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
Clearance To Back Splash
Min. 1 1/2" (38 mm)
Clearance To Back Splash
9 3/8"
15 1/2"
(394 mm)
2 1/2"
(64 mm)
9 13/16"
(249 mm)
Min. 1 1/2" (38 mm)
14 1/2"
(368 mm)
2 1/2"
(64 mm)
35 21/32"
(906 mm)
37 1/8"
(943 mm)
KITCHEN
FAUCETS
■ Cassidy™ Collection
■ Single Handle Deck Mount
■ 2-Function Pull-Down Sprayer
■ Single or 3 Hole Sink Applications
■ Integrated Innoflex® Supply Lines
■ MagnaTite® Magnetic Docking
■ DIAMOND Seal® Technology
STANDARD SPECIFICATIONS:
•
360˚ rotating spout.
•
Diamond embedded ceramic disc cartridge.
•
Touch-Clean® 2-function wand operates in stream
or spray mode.
•
62" braided hose ensures smooth operation.
•
Free-Moving hose weight provides maximum reach.
•
2 1/2" maximum deck thickness.
• 32" (minimum) Innoflex® supply lines with 3/8"
compression fittings.
•
Hot/cold markings on handle to indicate
temperature.
• ADA complaint
• Euro-Motion handle only rotates forward to eliminate
backsplash interference.
• Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
• Order RP61607 for 1.5 gpm hose adapter.
• Order RP71545 for optional escutcheon.
• Order RP71543 for optional coordinating
soap dispenser.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
lever handle.
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
10 1/4"
(260 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
9 13/16"
(249 mm)
35 21/32"
(906 mm)
37 1/8"
(943 mm)
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9197-DST Rev. C
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
