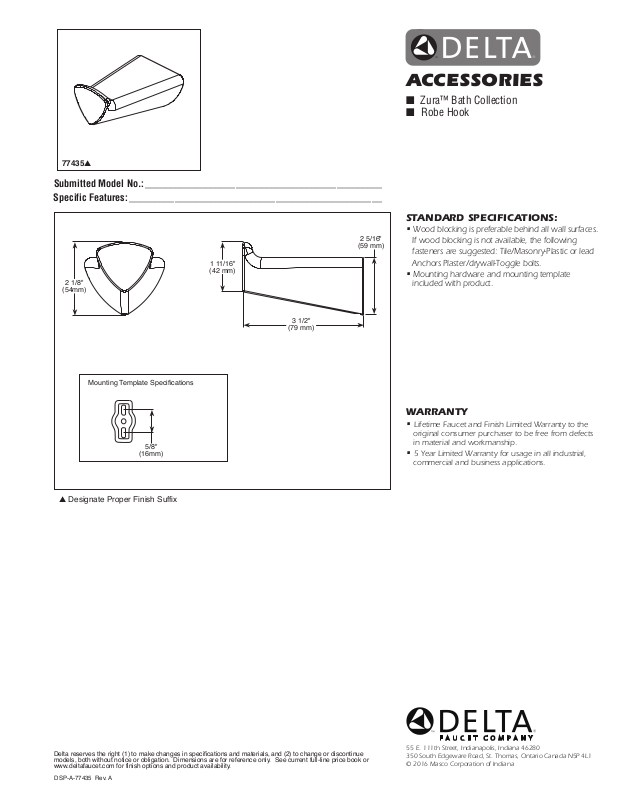

77435▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
2 5/16"
(59 mm)
1 11/16"
(42 mm)
2 1/8"
(54mm)
3 1/2"
(79 mm)
ACCESSORIES
■ Zura™ Bath Collection
■ Robe Hook
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following
fasteners are suggested: Tile/Masonry-Plastic or lead
Anchors Plaster/drywall-Toggle bolts.
•
Mounting hardware and mounting template
included with product.
Mounting Template Specifications
5/8"
(16mm)
▲ Designate Proper Finish Suffix
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-77435 Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
