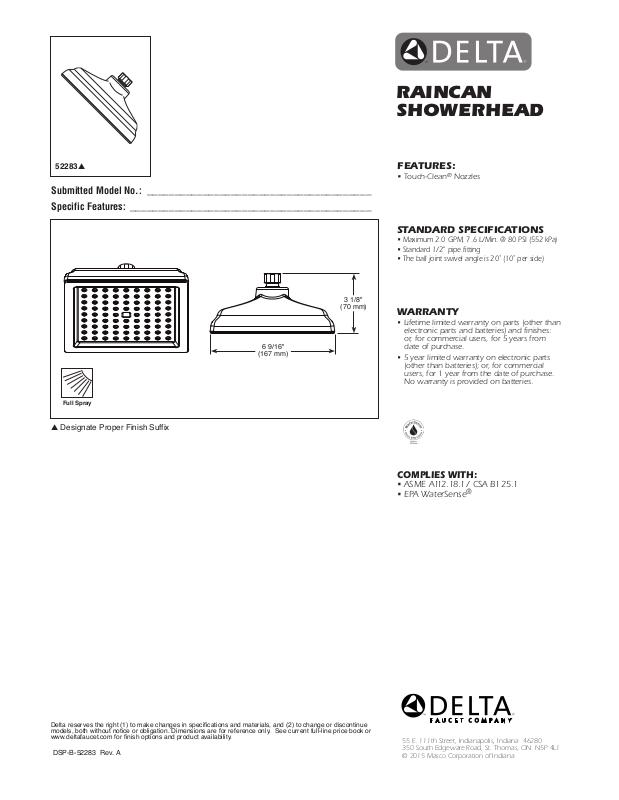

RAINCAN
SHOWERHEAD
52283▲
Submitted Model No.: ________________________________________
Specific Features: ___________________________________________
3 1/8"
(70 mm)
6 9/16"
(167 mm)
Full Spray
▲ Designate Proper Finish Suffix
FEATURES:
• Touch-Clean® Nozzles
STANDARD SPECIFICATIONS
• Maximum 2.0 GPM, 7.6 L/Min. @ 80 PSI (552 kPa)
• Standard 1/2" pipe fitting
• The ball joint swivel angle is 20˚ (10˚ per side)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-52283 Rev. A
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
EPA WaterSense
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
