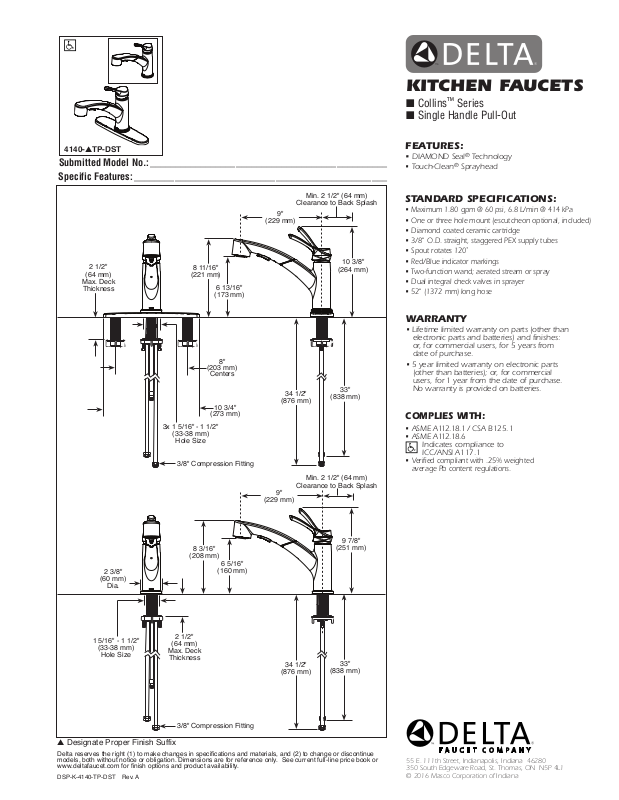

KITCHEN FAUCETS
■ Collins™ Series
■ Single Handle Pull-Out
4140-▲TP-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance to Back Splash
9"
(229 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
8 11/16"
(221 mm)
6 13/16"
(173 mm)
(203 mm)
Centers
10 3/4"
(273 mm)
3x 1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
3/8" Compression Fitting
8"
34 1/2"
(876 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
9"
(229 mm)
10 3/8"
(264 mm)
33"
(838 mm)
FEATURES:
• DIAMOND Seal® Technology
•
Touch-Clean
®
Sprayhead
STANDARD SPECIFICATIONS:
• Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa
• One or three hole mount (escutcheon optional, included)
• Diamond coated ceramic cartridge
• 3/8" O.D. straight, staggered PEX supply tubes
• Spout rotates 120˚
• Red/Blue indicator markings
• Two-function wand; aerated stream or spray
• Dual integral check valves in sprayer
• 52" (1372 mm) long hose
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
• Verified compliant with .25% weighted
average Pb content regulations.
9 7/8"
(251 mm)
33"
(838 mm)
2 3/8"
(60 mm)
Dia.
1 5/16" - 1 1/2"
(33-38 mm)
Hole Size
8 3/16"
(208 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
3/8" Compression Fitting
6 5/16"
(160 mm)
34 1/2"
(876 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-4140-TP-DST Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
