T17T061▲
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
Pressure (kPa)
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
T17T261▲
T17T461▲

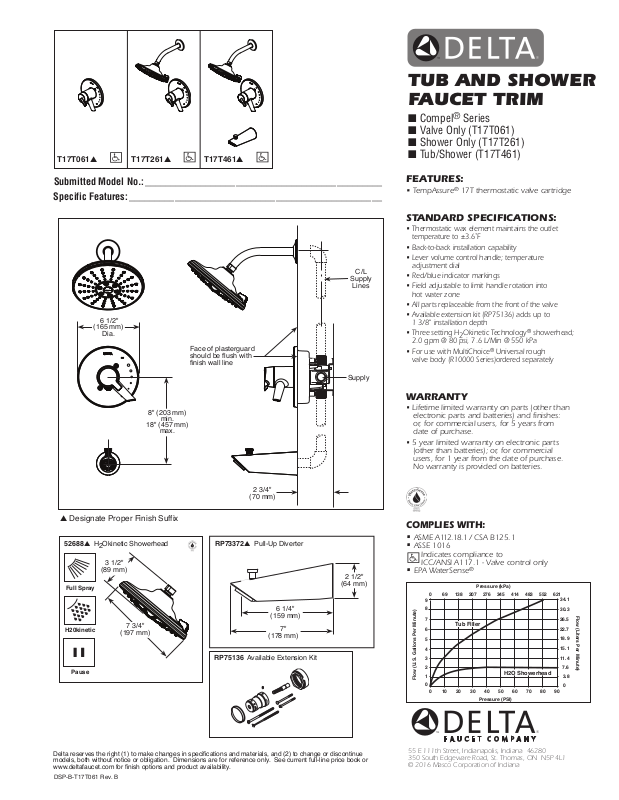

TUB AND SHOWER
FAUCET TRIM
■ Compel® Series
■ Valve Only (T17T061)
■ Shower Only (T17T261)
■ Tub/Shower (T17T461)
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6 1/2"
(165 mm)
Dia.
8" (203 mm)
min.
18" (457 mm)
max.
Face of plasterguard
should be flush with
finish wall line
C/L
Supply
Lines
Supply
FEATURES:
• TempAssure® 17T thermostatic valve cartridge
STANDARD SPECIFICATIONS:
• Thermostatic wax element maintains the outlet
temperature to ±3.6˚F
• Back-to-back installation capability
• Lever volume control handle; temperature
adjustment dial
• Red/blue indicator markings
• Field adjustable to limit handle rotation into
hot water zone
• All parts replaceable from the front of the valve
• Available extension kit (RP75136) adds up to
1 3/8" installation depth
• Three setting H2Okinetic Technology
2.0 gpm @ 80 psi, 7.6 L/Min @ 550 kPa
• For use with MultiChoice® Universal rough
valve body (R10000 Series)ordered separately
®
showerhead;
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17T061 Rev. B
▲ Designate Proper Finish Suffix
52688▲ H2Okinetic Showerhead
3 1/2"
(89 mm)
Full Spray
H20kinetic
Pause
7 3/4"
(197 mm)
2 3/4"
(70 mm)
RP73372▲ Pull-Up Diverter
6 1/4"
(159 mm)
7"
(178 mm)
RP75136 Available Extension Kit
2 1/2"
(64 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
9
8
7
6
5
4
3
2
1
0
0102030405060708090
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
®
Tub Filler
H2O Showerhead
34.1
30.3
Flow (Liters Per Minute)
26.5
22.7
18.9
15.1
11.4
7.6
3.8
0
