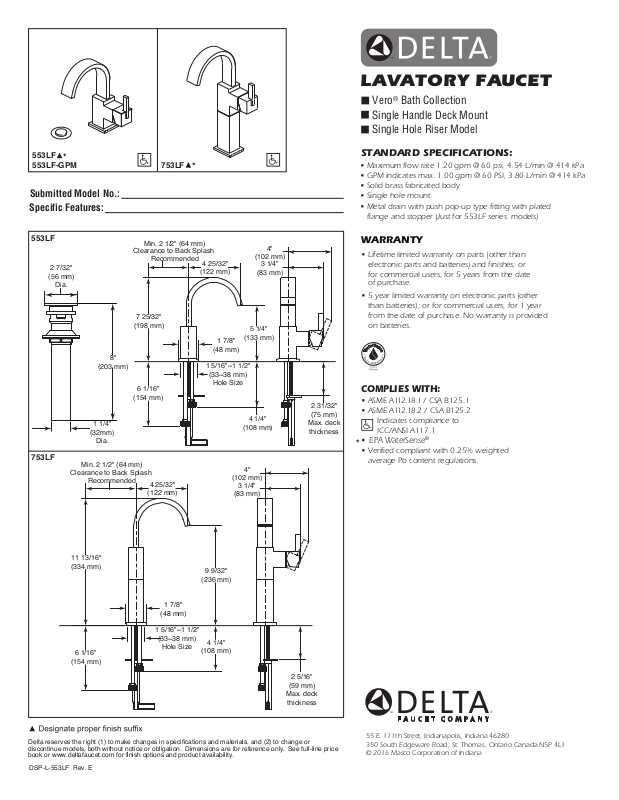

LAVATORY FAUCET
Vero® Bath Collection
Single Handle Deck Mount
Single Hole Riser Model
553LF
553LF-GPM
*
Submitted Model No.:
Specific Features:
553LF
2 7/32"
(56 mm)
Dia.
8"
(203 mm)
1 1/4"
(32mm)
Dia.
753LF
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
753LF
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended
7 25/32"
(198 mm)
6 1/16"
(154 mm)
4 25/32"
(122 mm)
*
4 25/32"
(122 mm)
1 5/16"~1 1/2"
1 7/8"
(48 mm)
(33~38 mm)
Hole Size
(102 mm)
3 1/4"
(83 mm)
(102 mm)
3 1/4"
(83 mm)
5 1/4"
(133 mm)
4 1/4"
(108 mm)
4"
STANDARD SPECIFICATIONS:
• Maximum flow rate 1.20 gpm @ 60 psi, 4.54 L/min @ 414 kPa
• GPM indicates max. 1.00 gpm @ 60 PSI, 3.80 L/min @ 414 kPa
• Solid brass fabricated body
• Single hole mount
• Metal drain with push pop-up type fitting with plated
flange and stopper (Just for 553LF series models)
WARRANTY
4"
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes; or
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
COMPLIES WITH:
2 31/32"
(75 mm)
Max. deck
thickness
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
• EPA WaterSense®
*
• Verified compliant with 0.25% weighted
average Pb content regulations.
11 13/16"
(334 mm)
1 7/8"
(48 mm)
1 5/16"~1 1/2"
(33~38 mm)
6 1/16"
(154 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or
discontinue models, both without notice or obligation. Dimensions are for reference only. See full-line price
book or www.deltafaucet.com for finish options and product availability.
DSP-L-553LF Rev. E
Hole Size
9 9/32"
(236 mm)
4 1/4"
(108 mm)
2 5/16"
(59 mm)
Max. deck
thickness
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
