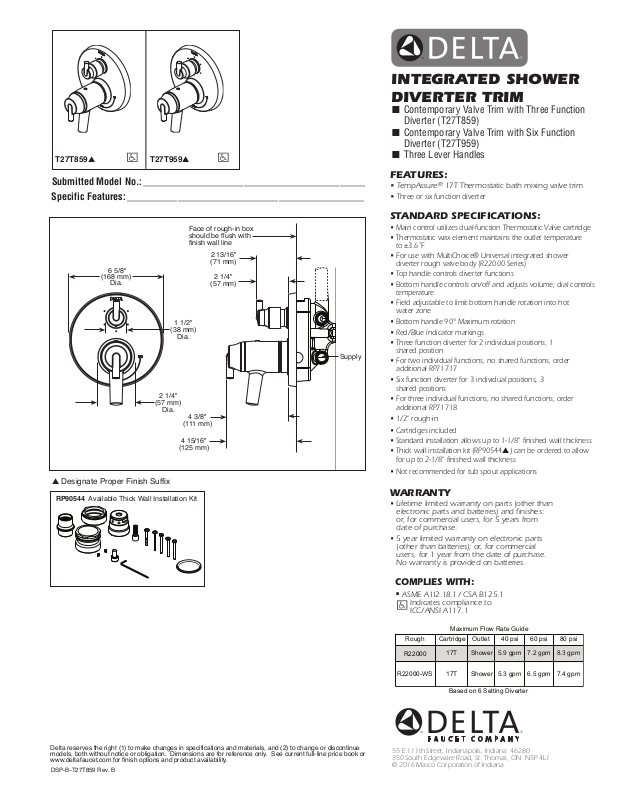

T27T859▲ T27T959▲
Maximum Flow Rate Guide
Submitted Model No.: ____________________________________________
Specific Features: _______________________________________________
Face of rough-in box
should be flush with
finish wall line
2 13/16"
4 3/8"
(111 mm)
4 15/16"
(71 mm)
2 1/4"
(57 mm)
Supply
6 5/8"
(168 mm)
Dia.
1 1/2"
(38 mm)
Dia.
2 1/4"
(57 mm)
Dia.
(125 mm)
▲ Designate Proper Finish Suffix
RP90544 Available Thick Wall Installation Kit
INTEGRATED SHOWER
DIVERTER TRIM
■ Contemporary Valve Trim with Three Function
Diverter (T27T859)
■ Contemporary Valve Trim with Six Function
Diverter (T27T959)
■ Three Lever Handles
FEATURES:
• TempAssure® 17T Thermostatic bath mixing valve trim
•
Three or six function diverter
STANDARD SPECIFICATIONS:
• Main control utilizes dual-function Thermostatic Valve cartridge
• Thermostatic wax element maintains the outlet temperature
to ±3.6˚F
• For use with MultiChoice® Universal integrated shower
diverter rough valve body (R22000 Series)
• Top handle controls diverter functions
• Bottom handle controls on/off and adjusts volume; dial controls
temperature
• Field adjustable to limit bottom handle rotation into hot
water zone
• Bottom handle 90° Maximum rotation
• Red/Blue indicator markings
• Three function diverter for 2 individual positions, 1
shared position
• For two individual functions, no shared functions, order
additional RP71717
• Six function diverter for 3 individual positions, 3
shared positions
• For three individual functions, no shared functions, order
additional RP71718
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• Thick wall installation kit (RP90544▲) can be ordered to allow
for up to 2-1/8" finished wall thickness
• Not recommended for tub spout applications
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T27T859 Rev. B
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1
Rough Cartridge Outlet 40 psi 60 psi 80 psi
R22000
R22000-WS 17TShower 5.3 gpm 6.5 gpm 7.4 gpm
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
17TShower 5.9 gpm 7.2 gpm 8.3 gpm
Based on 6 Setting Diverter
