0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
®

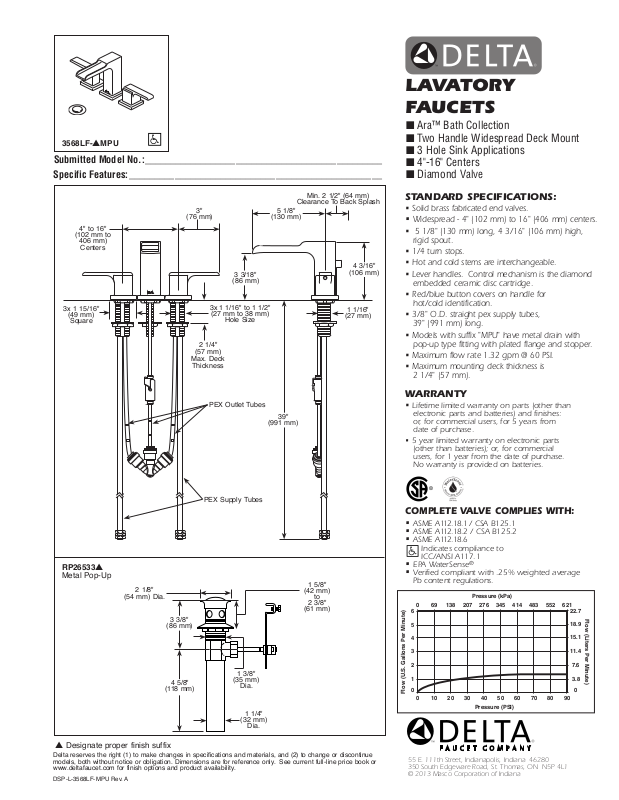

3568LF-▲MPU
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
LAVATORY
FAUCETS
■ Ara™ Bath Collection
■ Two Handle Widespread Deck Mount
■ 3 Hole Sink Applications
■ 4"-16" Centers
■ Diamond Valve

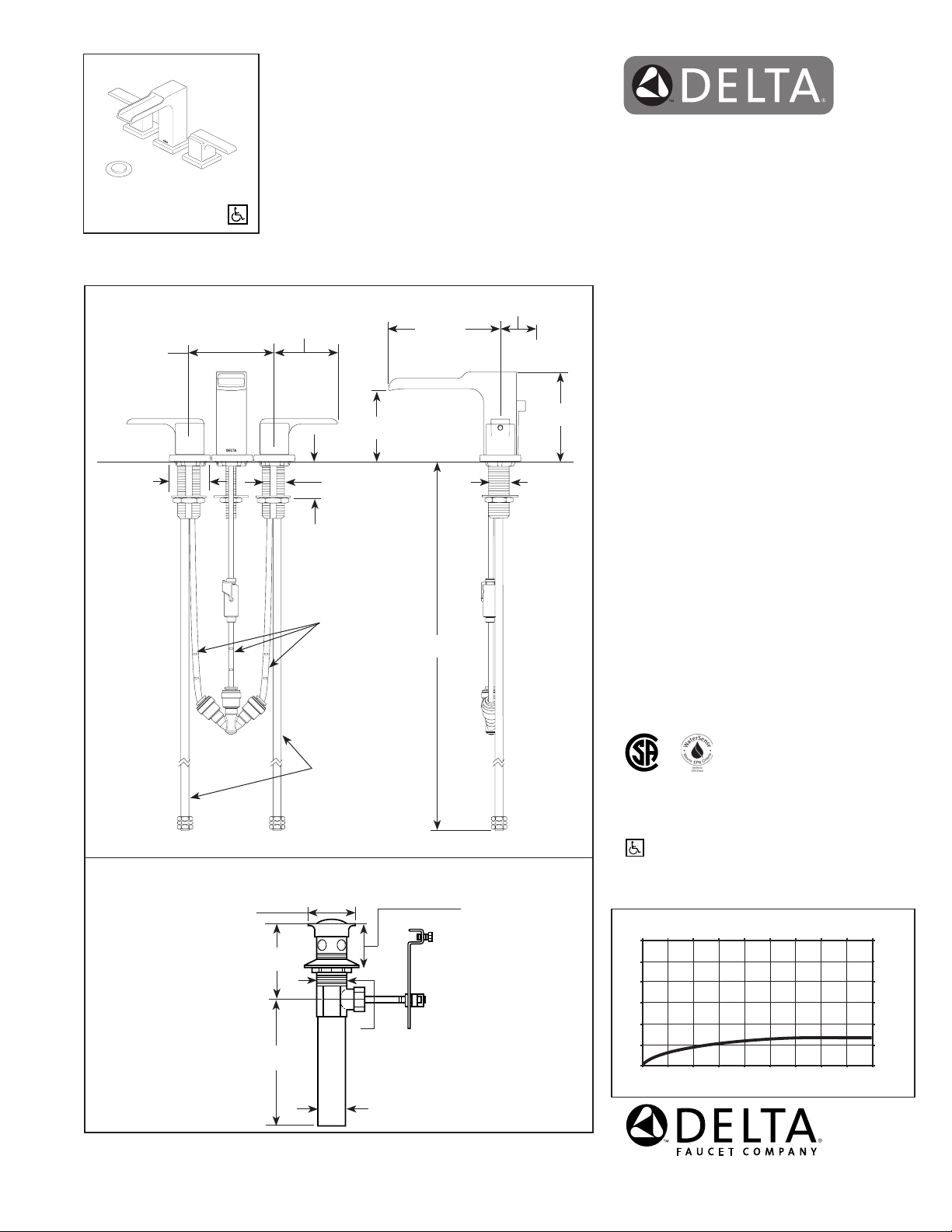

4" to 16"
(102 mm to
406 mm)
Centers
3x 1 15/16"
(49 mm)
Square
3"
(76 mm)
3x 1 1/16" to 1 1/2"
(27 mm to 38 mm)
2 1/4"
(57 mm)
Max. Deck
Thickness
PEX Outlet Tubes
3 3/18"
(86 mm)
Hole Size
Min. 2 1/2" (64 mm)
Clearance To Back Splash
5 1/8"
(130 mm)
39"
(991 mm)
4 3/16"
(106 mm)
1 1/16"
(27 mm)
STANDARD SPECIFICATIONS:
• Solid brass fabricated end valves.
•
Widespread - 4" (102 mm) to 16" (406 mm) centers.
• 5 1/8" (130 mm) long, 4 3/16" (106 mm) high,
rigid spout.
• 1/4 turn stops.
• Hot and cold stems are interchangeable.
• Lever handles. Control mechanism is the diamond
embedded ceramic disc cartridge.
• Red/blue button covers on handle for
hot/cold identification.
• 3/8" O.D. straight pex supply tubes,
39" (991 mm) long.
• Models with suffix "MPU" have metal drain with
pop-up type fitting with plated flange and stopper.
• Maximum flow rate 1.32 gpm @ 60 PSI.
• Maximum mounting deck thickness is
2 1/4" (57 mm).
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
RP26533▲
Metal Pop-Up
2 1/8"
(54 mm) Dia.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-3568LF-MPU Rev. A
3 3/8"
(86 mm)
4 5/8"
(118 mm)
PEX Supply Tubes
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
COMPLETE VALVE COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
®
