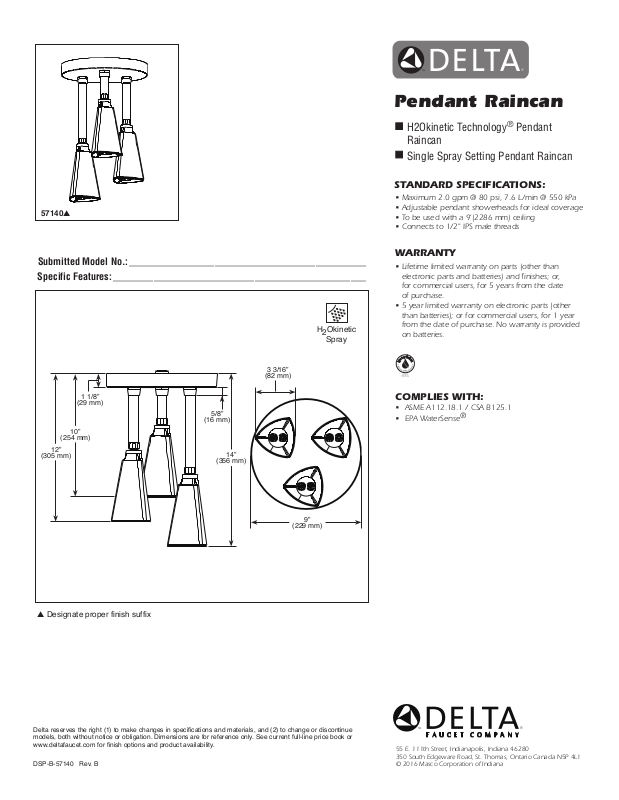

Pendant Raincan
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
57140▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1 1/8”
(29 mm)
10”
(254 mm)
12”
(305 mm)
5/8”
(16 mm)
(356 mm)
14”
3 3/16”
(82 mm)
H2Okinetic
Spray
H2Okinetic Technology
®
Pendant
Raincan
Single Spray Setting Pendant Raincan
STANDARD SPECIFICATIONS:
• Maximum 2.0 gpm @ 80 psi, 7.6 L/min @ 550 kPa
• Adjustable pendant showerheads for ideal coverage
• To be used with a 9'(2286 mm) ceiling
• Connects to 1/2" IPS male threads
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• EPA WaterSense®
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-B-57140 Rev. B
9”
(229 mm)
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
