T14094▲ T14093▲
= Pause (P)
P
T14194▲ T14293▲
T14294▲
T14494▲
T14294-
▲H2O
T14294LHD
T14494-
▲H2O
T14494LHD
T14493▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
DELTA
7" Dia.
(178 mm)
8" (203 mm)
min.
18" (457 mm)
max.
RP51305▲ 2.5 GPM Touch-Clean® Raincan
Showerhead
2 5/8"
(67 mm)
Full Spray
Face of plasterguard
should be flush with
finish wall line
RP54752▲ 1.5 GPM H2O Showerhead
Full Spray
3 7/8"
(98 mm)
Supply
2 3/4"
(70 mm)
4 1/2"
(114 mm)

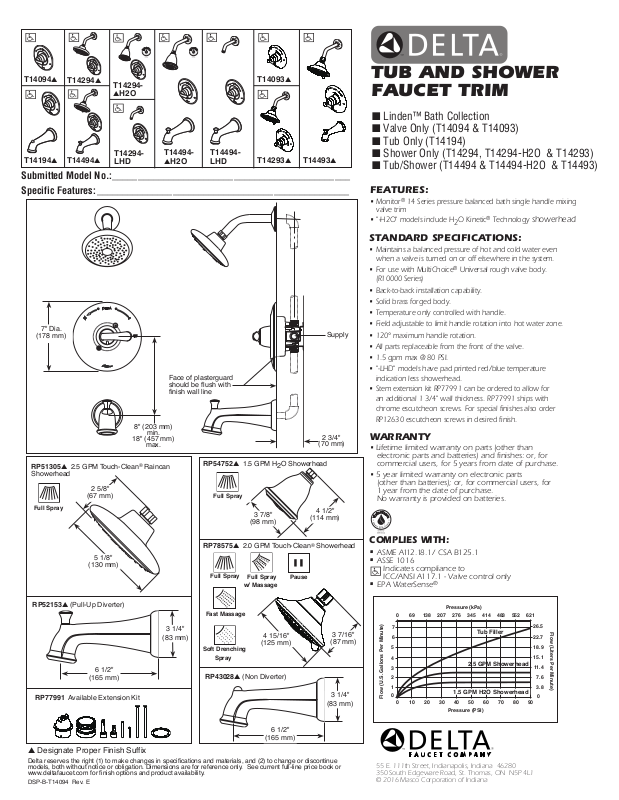

TUB AND SHOWER
FAUCET TRIM
■ Linden™ Bath Collection
■ Valve Only (T14094 & T14093)
■ Tub Only (T14194)
■ Shower Only (T14294, T14294-H2O & T14293)
■ Tub/Shower (T14494 & T14494-H2O & T14493)
FEATURES:
• Monitor® 14 Series pressure balanced bath single handle mixing
valve trim
• "-H2O" models include H2O Kinetic
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice
®
(R10000 Series)
• Back-to-back installation capability.
• Solid brass forged body.
• Temperature only controlled with handle.
• Field adjustable to limit handle rotation into hot water zone.
• 120° maximum handle rotation.
• All parts replaceable from the front of the valve.
• 1.5 gpm max @ 80 PSI.
• "-LHD" models have pad printed red/blue temperature
indication less showerhead.
• Stem extension kit RP77991 can be ordered to allow for
an additional 1 3/4" wall thickness. RP77991 ships with
chrome escutcheon screws. For special finishes also order
RP12630 escutcheon screws in desired finish.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes: or, for
commercial users, for 5 years from date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial users, for
1 year from the date of purchase.
No warranty is provided on batteries.
®
Technology
showerhead
Universal rough valve body.
RP78575▲ 2.0 GPM Touch-Clean® Showerhead
5 1/8"
(130 mm)
RP52153▲ (Pull-Up Diverter)
6 1/2"
(165 mm)
RP77991 Available Extension Kit
3 1/4"
(83 mm)
Full Spray
Fast Massage
Soft Drenching
Spray
RP43028▲ (Non Diverter)
Full Spray
w/ Massage
4 15/16"
(125 mm)
6 1/2"
(165 mm)
Pause
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T14094 Rev. E
3 7/16"
(87 mm)
3 1/4"
(83 mm)
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
®
Pressure (kPa)
Tub Filler
2.5 GPM Showerhead
1.5 GPM H2O Showerhead
Pressure (PSI)
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
