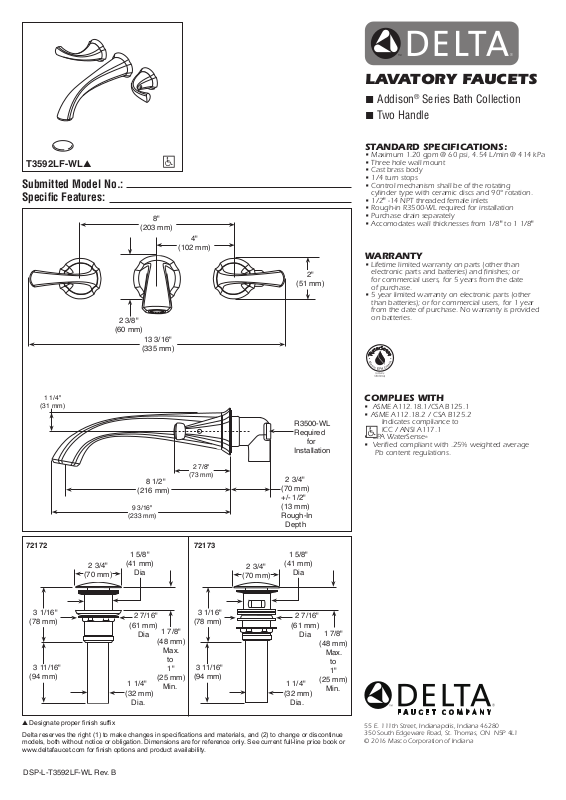

T3592LF-WL▲

Submitted Model No.: Speciﬁc Features:

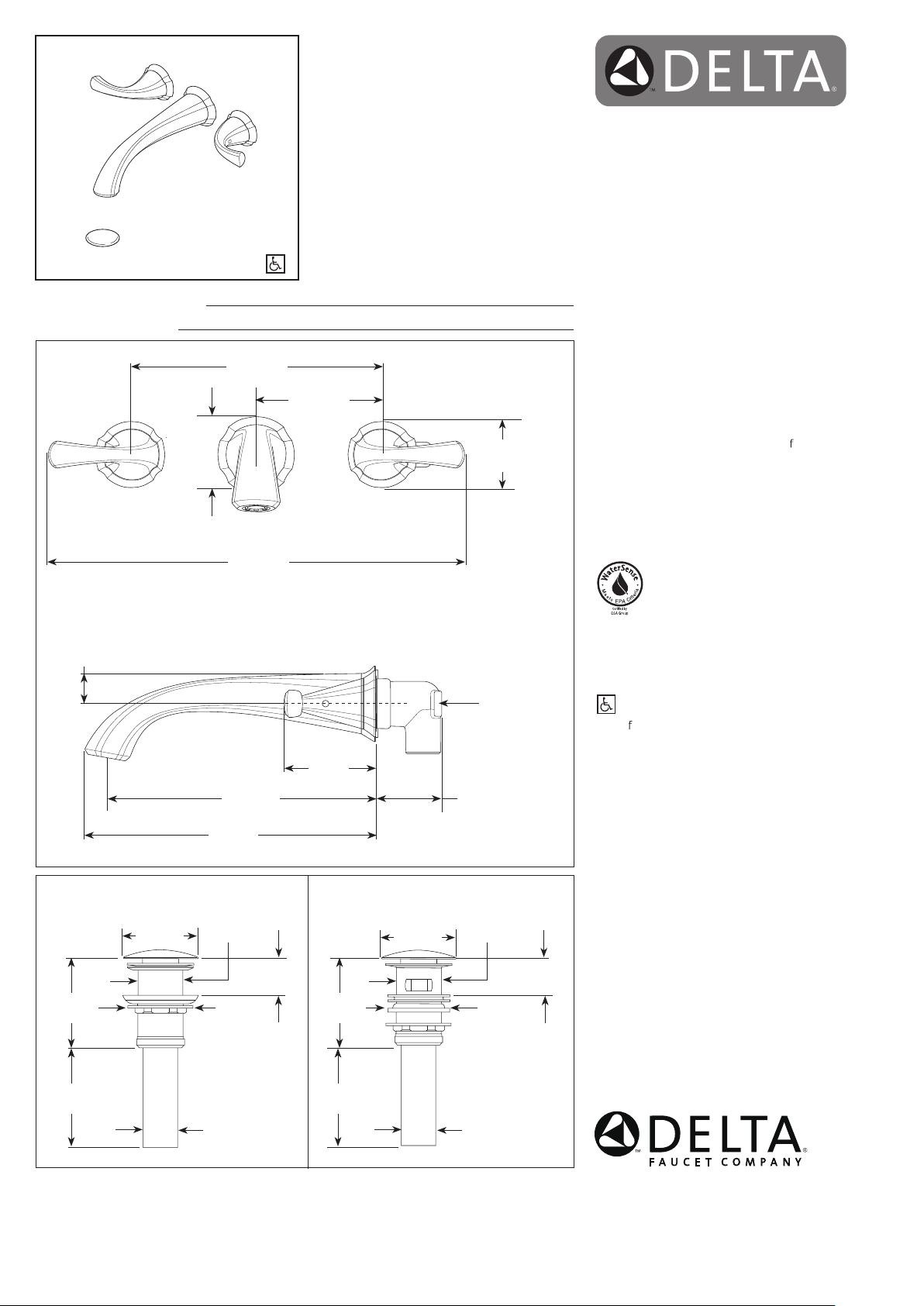

2 3/8" (60 mm)

8" (203 mm)

13 3/16" (335 mm)

4" (102 mm)

2" (51 mm)

LAVATORY FAUCETS

■ Addison

Series Bath Collection

■ Two Handle

STANDARD SPECIFICATIONS:

• Maximum 1.20 gpm @ 60 psi, 4.54 L/min @ 414 kPa

• Three hole wall mount

• Cast brass body

• 1/4 turn stops

• Control mechanism shall be of the rotating cylinder type with ceramic discs and 90° rotation.

• 1/2" -14 NPT threaded female inlets

• Rough-in R3500-WL required for installation

• Purchase drain separately

• Accomodates wall thicknesses from 1/8" to 1 1/8"

WARRANTY

• Lifetime limited warranty on parts (other than electronic parts and batteries) and inishes; or for commercial users, for 5 years from the date of purchase.

• 5 year limited warranty on electronic parts (other than batteries); or for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.

1 1/4" (31 mm)

2 7/8"

8 1/2" (216 mm)

9 3/16" (233 mm)

72172 72173

1 5/8"

2 3/4" (70 mm)

3 1/16" (78 mm)

3 11/16" (94 mm)

(41 mm) Dia

2 7/16" (61 mm) Dia

1 1/4" (32 mm) Dia.

1 7/8" (48 mm) Max. to 1" (25 mm) Min.

(73 mm)

3 1/16" (78 mm)

3 11/16" (94 mm)

2 3/4" (70 mm)

R3500-WL Required for Installation

2 3/4" (70 mm) +/- 1/2" (13 mm) Rough-In Depth

1 5/8" (41 mm) Dia

2 7/16" (61 mm) Dia

1 1/4" (32 mm) Dia.

1 7/8" (48 mm) Max. to 1" (25 mm) Min.

COMPLIES WITH

• ASME A112.18.1/CSA B125.1

• ASME A112.18.2 / CSA B125.2 Indicates compliance to ICC / ANSI A117.1

• EPA WaterSense

• Veri ied compliant with .25% weighted average Pb content regulations.

▲ Designate proper nish sufx

Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.deltafaucet.com for nish options and product availability.

DSP-L-T3592LF-WL Rev. B
