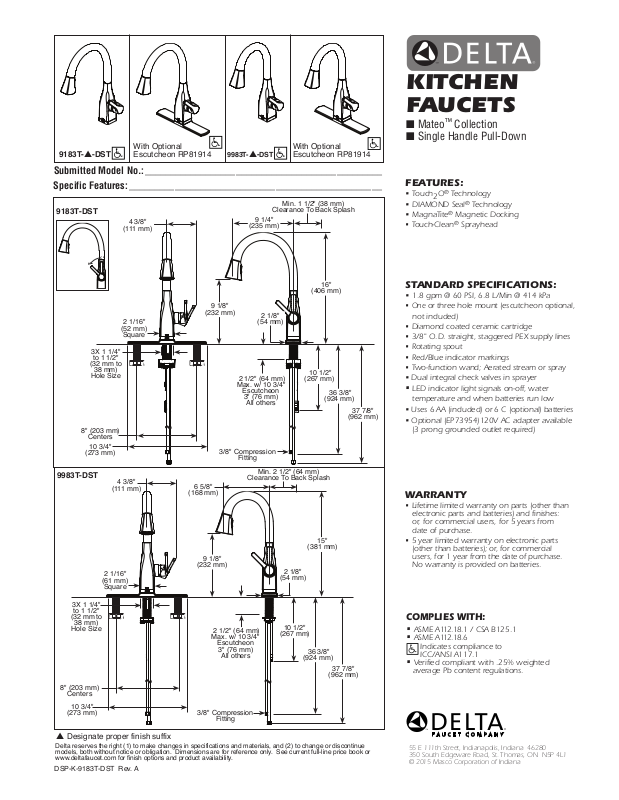

9183T-▲-DST
With Optional
Escutcheon RP81914
9983T-▲-DST
With Optional
Escutcheon RP81914
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 1 1/2" (38 mm)
9183T-DST
H
4 3/8"
(111 mm)
C
Clearance To Back Splash
9 1/4"
(235 mm)
KITCHEN
FAUCETS
■ Mateo™ Collection
■ Single Handle Pull-Down
FEATURES:
• Touch2O® Technology
• DIAMOND Seal® Technology
• MagnaTite® Magnetic Docking
•
Touch-Clean® Sprayhead
(32 mm to
8" (203 mm)
Centers
10 3/4"
(273 mm)
9983T-DST
3X 1 1/4"
to 1 1/2"
38 mm)
Hole Size
(111 mm)
2 1/16"
(61 mm)
Square
2 1/16"
(52 mm)
Square
4 3/8"
(232 mm)
6 5/8"
(168 mm)
9 1/8"
(232 mm)
9 1/8"
2 1/2" (64 mm)
Max. w/ 10 3/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
Clearance To Back Splash
2 1/8"
(54 mm)
10 1/2"
(267 mm)
Min. 2 1/2" (64 mm)
(381 mm)
2 1/8"
(54 mm)
16"
(406 mm)
36 3/8"
(924 mm)
15"
37 7/8"
(962 mm)
STANDARD SPECIFICATIONS:
• 1.8 gpm @ 60 PSI, 6.8 L/Min @ 414 kPa
• One
or three hole mount (escutcheon optional,
not included)
•
Diamond coated ceramic cartridge
•
3/8" O.D. straight, staggered PEX supply lines
•
Rotating spout
•
Red/Blue indicator markings
•
Two-function wand; Aerated stream or spray
• Dual integral check valves in sprayer
•
LED indicator light signals on-off, water
temperature and when batteries run low
• Uses 6 AA (included) or 6 C (optional) batteries
• Optional (EP73954)120V AC adapter available
(3 prong grounded outlet required)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
10 3/4"
(273 mm)
2 1/2" (64 mm)
Max. w/ 10 3/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
10 1/2"
(267 mm)
36 3/8"
(924 mm)
37 7/8"
(962 mm)
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9183T-DST Rev. A
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
55 E 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
