Flow (U.S. Gallons Per Minute)
FLOOR MOUNT
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O

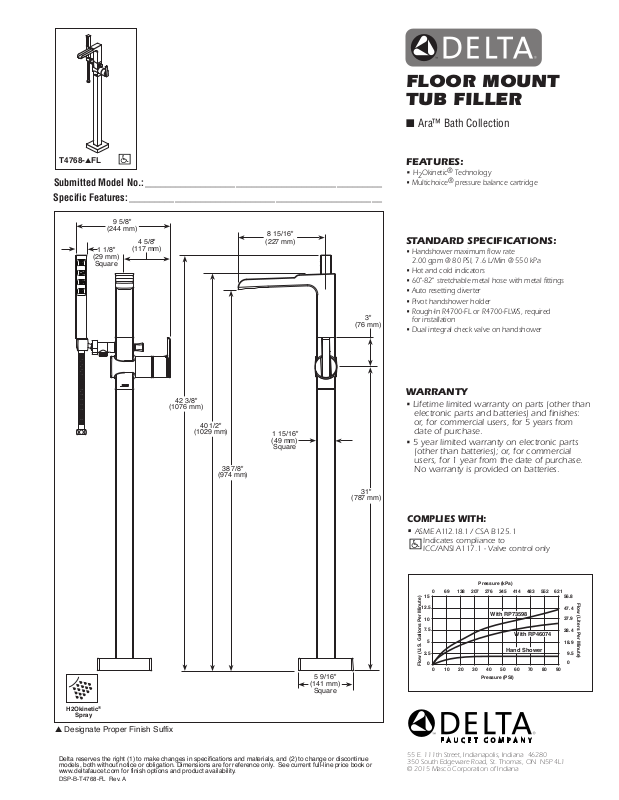

TUB FILLER
■ Ara™ Bath Collection
T4768-▲FL
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
9 5/8"
(244 mm)
4 5/8"
1 1/8"
(29 mm)
Square
(117 mm)
42 3/8"
(1076 mm)
40 1/2"
(1029 mm)
(974 mm)
38 7/8"
8 15/16"
(227 mm)
1 15/16"
(49 mm)
Square
FEATURES:
•
H2Okinetic® Technology
• Multichoice® pressure balance cartridge
STANDARD SPECIFICATIONS:
• Handshower maximum flow rate
2.00 gpm @ 80 PSI, 7.6 L/Min @ 550 kPa
• Hot and cold indicators
• 60"-82" stretchable metal hose with metal fittings
• Auto resetting diverter
• Pivot handshower holder
3"
(76 mm)
• Rough-In R4700-FL or R4700-FLWS, required
for installation
• Dual integral check valve on handshower
WARRANTY
•
Lifetime limited warranty on parts (other than
31"
(787 mm)
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
▲ Designate Proper Finish Suffix
5 9/16"
(141 mm)
Square
H2Okinetic®
Spray
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T4768-FL Rev. A
069 138 207 276 345 414 483 552 621
15
12.5
10
7.5
5
2.5
0
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
Pressure (kPa)
With RP73598
With RP46074
Hand Shower
Pressure (PSI)
56.8
Flow (Liters Per Minute)
47.4
37.9
28.4
18.9
9.5
0
