Page 1
= Pause (P)
P
T17093▲
T17094▲
T17293▲
T17294▲
T17493▲
T17494▲
T17293▲-I
T17294▲-I
T17493▲-I
T17494▲-I
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Supply
min.
3 1/4"
Face of plasterguard
should be flush with
finish wall line
2 3/4" (70mm)
RP70173▲ H2O Kinetic Technology® Raincan
Showerhead
2 5/8"
(67 mm)
Full Spray
6"
(152 mm)
RP77992 Available Extension Kit
6 3/8"
(162 mm)
Dia.
8" (203 mm)
18" (457 mm)
max.
58065▲ Touch Clean® Raincan Showerhead
5 1/2"
(140 mm)
Full Spray
11"
(279 mm)
Massage
Full Spray
w/Massage
RP52153▲ (Pull-Up Diverter)
Pause
Button
(83 mm)

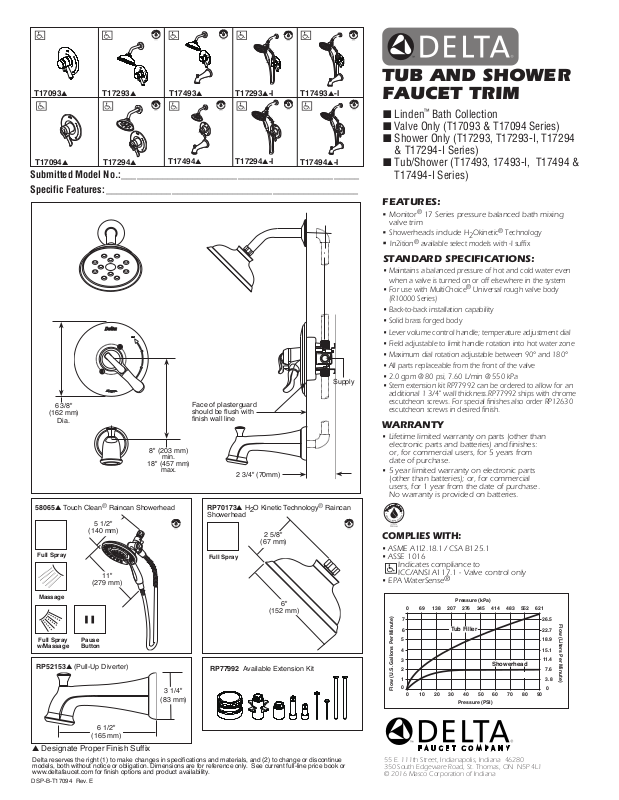

TUB AND SHOWER
FAUCET TRIM
■ Linden™ Bath Collection
■ Valve Only (T17093 & T17094 Series)
■ Shower Only (T17293, T17293-I, T17294
& T17294-I Series)
■ Tub/Shower (T17493, 17493-I, T17494 &
T17494-I Series)
FEATURES:
• Monitor® 17 Series pressure balanced bath mixing
valve trim
•
Shower
heads include
•
In2ition® available select models with -I suffix
H2Okinetic® Technology
STANDARD SPECIFICATIONS:
• Maintains a balanced pressure of hot and cold water even
when a valve is turned on or off elsewhere in the system
• For use with MultiChoice
®
Universal rough valve body
(R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• 2.0 gpm @ 80 psi, 7.60 L/min @ 550 kPa
• Stem extension kit RP77992 can be ordered to allow for an
additional 1 3/4" wall thickness.RP77992 ships with chrome
escutcheon screws. For special finishes also order RP12630
escutcheon screws in desired finish.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASSE 1016
Indicates compliance to
ICC/ANSI A117.1 - Valve control only
•
EPA WaterSense
069 138 207 276 345 414 483 552 621
7
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
®
Pressure (kPa)
Tub Filler
Showerhead
Pressure (PSI)
26.5
Flow (Liters Per Minute)
22.7
18.9
15.1
11.4
7.6
3.8
0
6 1/2"
(165 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T17094 Rev. E
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2016 Masco Corporation of Indiana
