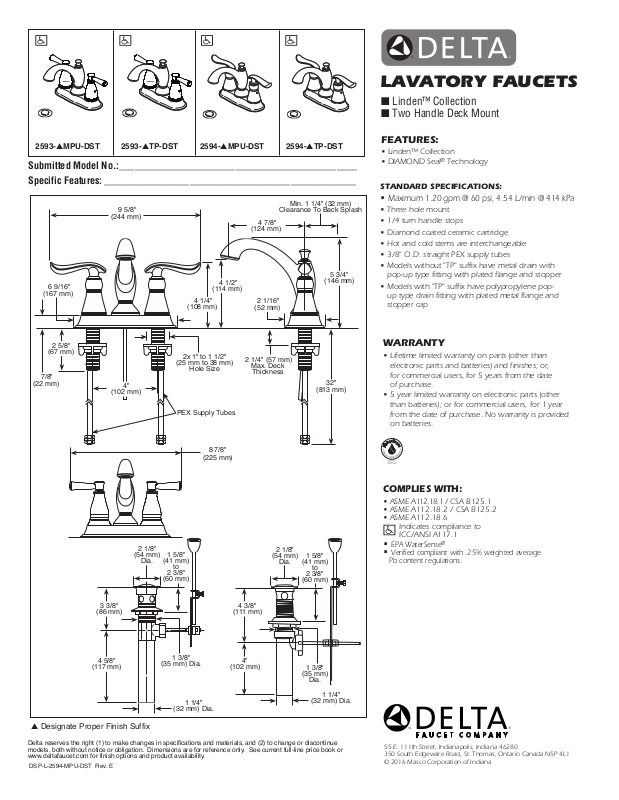

LAVATORY FAUCETS
■ Linden™ Collection
■ Two Handle Deck Mount
2594-▲MPU-DST2593-▲MPU-DST
2594-▲TP-DST2593-▲TP-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 1 1/4" (32 mm)
Clearance To Back Splash
5 3/4"
(146 mm)
32"
(813 mm)
6 9/16"
(167 mm)
(67 mm)
7/8"
(22 mm)
2 5/8"
9 5/8"
(244 mm)
4"
(102 mm)
4 1/2"
(114 mm)
4 1/4"
(108 mm)
2x 1" to 1 1/2"
(25 mm to 38 mm)
Hole Size
PEX Supply Tubes
4 7/8"
(124 mm)
2 1/16"
(52 mm)
2 1/4" (57 mm)
Max. Deck
Thickness
FEATURES:
• Linden™ Collection
• DIAMOND Seal
STANDARD SPECIFICATIONS:
•
Maximum 1.20 gpm @ 60 psi, 4.54 L/min @ 414 kPa
• Three hole mount
• 1/4 turn handle stops
• Diamond coated ceramic cartridge
• Hot and cold stems are interchangeable
• 3/8" O.D. straight PEX supply tubes
• Models without "TP" suffix have metal drain with
pop-up type fitting with plated flange and stopper
• Models with "TP" suffix have polypropylene pop-
up type drain fitting with plated metal flange and
stopper cap
®
Technology
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries.
8 7/8"
(225 mm)
3 3/8"
(86 mm)
4 5/8"
(117 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
4 3/8"
(111 mm)
4"
(102 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm) Dia.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-2594-MPU-DST Rev. E
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
• ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, Ontario Canada N5P 4L1
© 2016 Masco Corporation of Indiana
®
