0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)

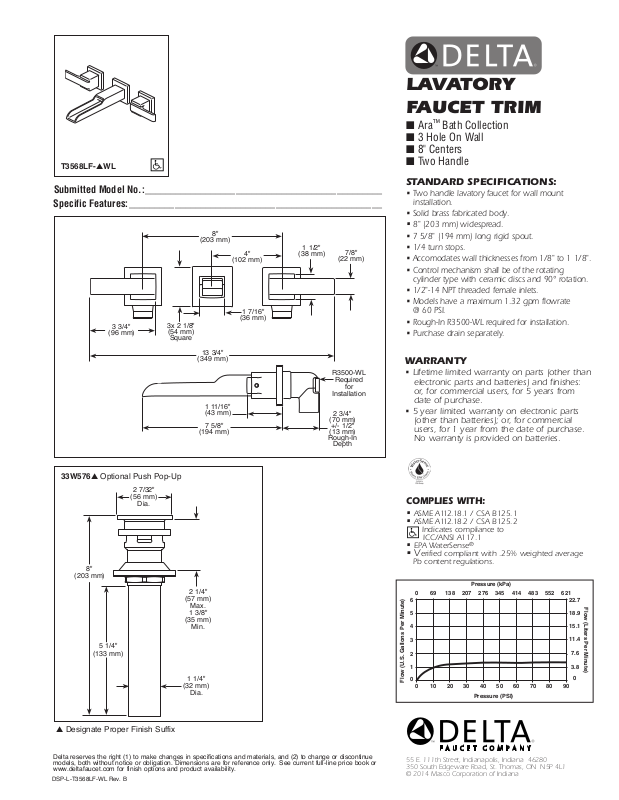

T3568LF-▲WL
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
8"
3 3/4"
(96 mm)
3x 2 1/8"
(54 mm)
Square
(203 mm)
13 3/4"
(349 mm)
1 11/16"
(43 mm)
7 5/8"
(194 mm)
4"
(102 mm)
1 7/16"
(36 mm)
1 1/2"
(38 mm)
7/8"
(22 mm)
R3500-WL
Required
for
Installation
2 3/4"
(70 mm)
+/- 1/2"
(13 mm)
Rough-In
Depth
LAVATORY
FAUCET TRIM
■ Ara™ Bath Collection
■ 3 Hole On Wall
■ 8" Centers
■ Two Handle
STANDARD SPECIFICATIONS:
• Two handle lavatory faucet for wall mount
installation.
• Solid brass fabricated body.
•
8" (203 mm) widespread.
• 7 5/8" (194 mm) long rigid spout.
• 1/4 turn stops.
• Accomodates wall thicknesses from 1/8" to 1 1/8".
• Control mechanism shall be of the rotating
cylinder type with ceramic discs and 90° rotation.
• 1/2"-14 NPT threaded female inlets.
• Models have a maximum 1.32 gpm flowrate
@ 60 PSI.
• Rough-In R3500-WL required for installation.
• Purchase drain separately.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
33W576▲ Optional Push Pop-Up
2 7/32"
(56 mm)
Dia.
8"
(203 mm)
5 1/4"
(133 mm)
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-T3568LF-WL Rev. B
2 1/4"
(57 mm)
Max.
1 3/8"
(35 mm)
Min.
1 1/4"
(32 mm)
Dia.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
®
• Verified compliant with .25% weighted average
Pb content regulations.
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2014 Masco Corporation of Indiana
