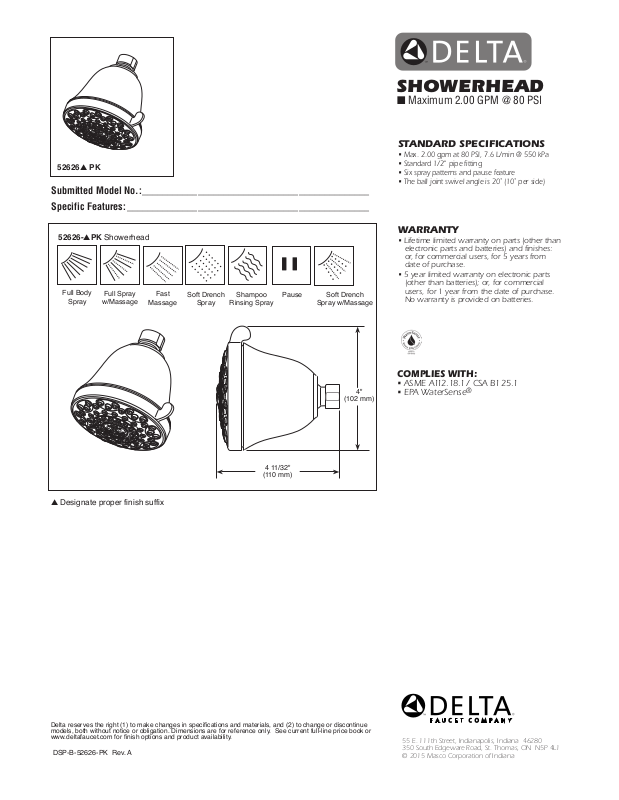

Delta DLT7709 Specifications

Page 1
52626PK
Submitted Model No.: _____________________________________________
Specific Features: ________________________________________________
SHOWERHEAD
Maximum 2.00 GPM @ 80 PSI
STANDARD SPECIFICATIONS
• Max. 2.00 gpm at 80 PSI, 7.6 L/min @ 550 kPa
• Six spray patterns and pause feature
• The ball joint swivel angle is 20˚ (10˚ per side)
52626-PK Showerhead
Full Body
Spray
Designate proper finish suffix
Full Spray
w/Massage
Fast
Massage
Soft Drench
Spray
Shampoo
Rinsing Spray
4 11/32"
(110 mm)
Pause
Soft Drench
Spray w/Massage
4"
(102 mm)
WARRANTY
Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
EPA WaterSense
®
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.deltafaucet.com for finish options and product availability.
DSP-B-52626-PK Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280 350 South Edgeware Road, St. Thomas, ON N5P 4L1 © 2015 Masco Corporation of Indiana
