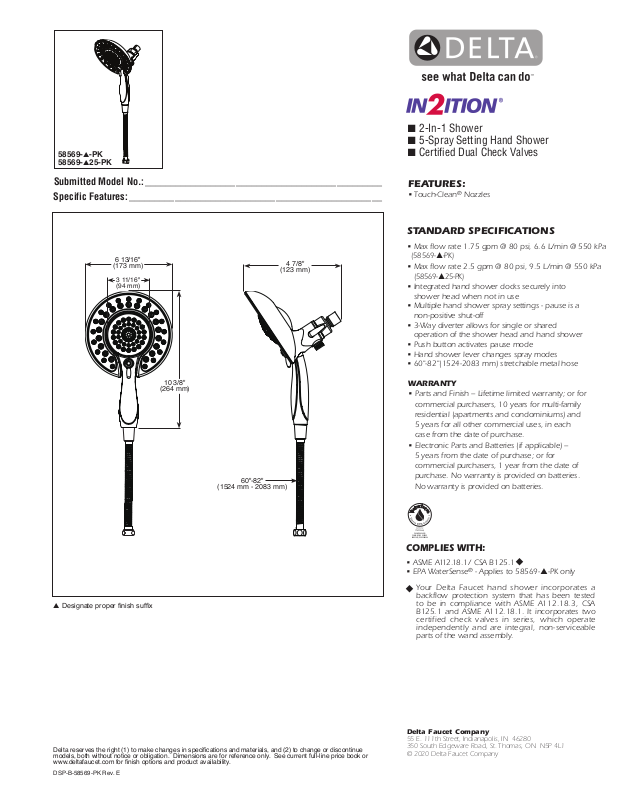

Page 1
58569-▲-PK
58569-▲25-PK
■ 2-In-1 Shower
■ 5-Spray Setting Hand Shower
■ Certified Dual Check Valves
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
6 13/16"
(173 mm)
3 11/16"
(94 mm)
10 3/8"
(264 mm)
60"-82"
(1524 mm - 2083 mm)
4 7/8"
(123 mm)
FEATURES:
• Touch-Clean® Nozzles
STANDARD SPECIFICATIONS
• Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
(58569-p-PK)
• Max flow rate 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
(58569-p25-PK)
• Integrated hand shower docks securely into
shower head when not in use
• Multiple hand shower spray settings - pause is a
non-positive shut-off
• 3-Way diverter allows for single or shared
operation of the shower head and hand shower
• Push button activates pause mode
• Hand shower lever changes spray modes
• 60"-82"(1524-2083 mm) stretchable metal hose
WARRANTY
• Parts and Finish – Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each
case from the date of purchase.
• Electronic Parts and Batteries (if applicable) –
5 years from the date of purchase; or for
commercial purchasers, 1 year from the date of
purchase. No warranty is provided on batteries.
No warranty is provided on batteries.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-58569-PK Rev. E
SHOWER HEAD(S)
POMME(S) DE DOUCHE
CABEZA(S) DE REGADERA
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1u
• EPA WaterSense® - Applies to 58569-p-PK only
Your Delta Faucet hand shower incorporates a
u
backflow protection system that has been tested
to be in compliance with ASME A112.18.3, CSA
B125.1 and ASME A112.18.1. It incorporates two
certified check valves in series, which operate
independently and are integral, non-serviceable
parts of the wand assembly.
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2020 Delta Faucet Company
