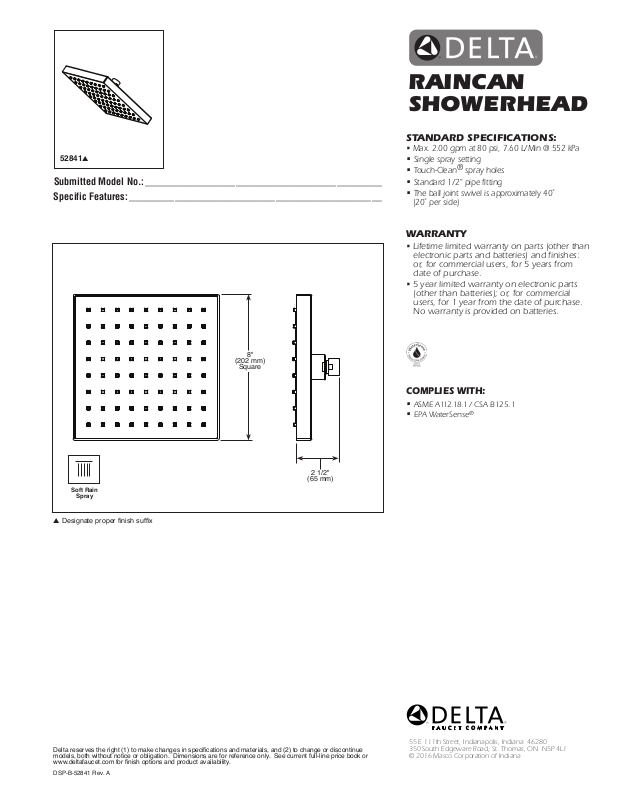

Delta DLT7707 Specifications

52841
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
= Soft Drench w/Full Spray (SDF)
= Soft Rain Spray (SRS)
= Soft Drench Spray (SD)
= Pause (P)
SR
SDF
SRM
SF
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= Soft Drench Spray w/Massage (SDM)
SDM
SRS
Submitted Model No.: _______________________________________________ Specific Features: __________________________________________________
8"
(202 mm)
Square
RAINCAN SHOWERHEAD
STANDARD SPECIFICATIONS:
• Max. 2.00 gpm at 80 psi, 7.60 L/Min @ 552 kPa
Single spray setting
Touch-Clean® spray holes
Standard 1/2" pipe fitting
The ball joint swivel is approximately 40˚
(20˚ per side)
WARRANTY
Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.
5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase. No warranty is provided on batteries.
COMPLIES WITH:
ASME A112.18.1 / CSA B125.1
EPA WaterSense
®
Soft Rain
Spray
Designate proper finish suffix
2 1/2"
(65 mm)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.deltafaucet.com for finish options and product availability.
DSP-B-52841 Rev. A
55 E 111th Street, Indianapolis, Indiana 46280 350 South Edgeware Road, St. Thomas, ON N5P 4L1 © 2016 Masco Corporation of Indiana
