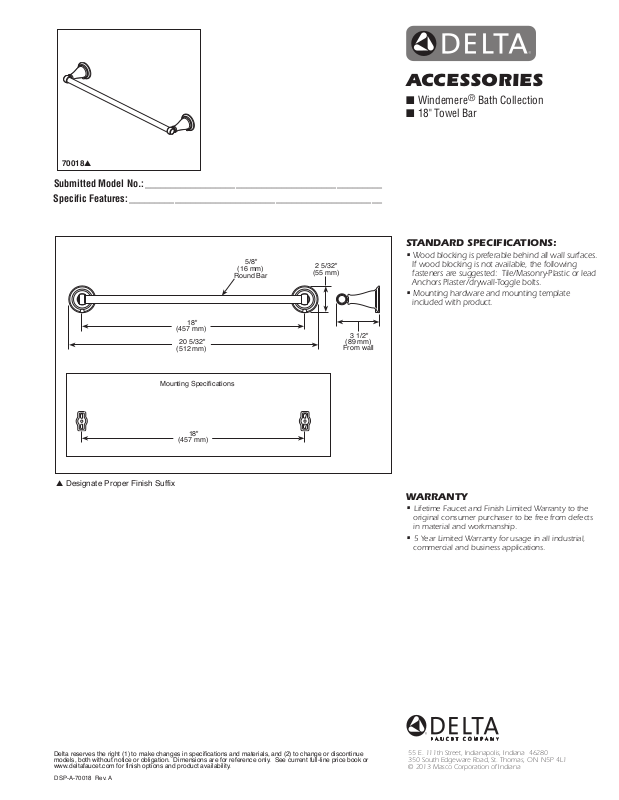

Delta DLT7688 Specifications

Page 1
70018
Submitted Model No.: _______________________________________________ Specific Features: __________________________________________________
18"
(457 mm)
20 5/32"
(512 mm)
5/8"
(16 mm)
Round Bar
2 5/32"
(55 mm)
3 1/2"
(89 mm)
From wall
ACCESSORIES
Windemere® Bath Collection
18" Towel Bar
STANDARD SPECIFICATIONS:
Wood blocking is preferable behind all wall surfaces. If wood blocking is not available, the following fasteners are suggested: Tile/Masonry-Plastic or lead Anchors Plaster/drywall-Toggle bolts.
Mounting hardware and mounting template included with product.
Mounting Specifications
Designate Proper Finish Suffix
18"
(457 mm)
WARRANTY
Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.
5 Year Limited Warranty for usage in all industrial, commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.deltafaucet.com for finish options and product availability.
DSP-A-70018 Rev. A
55 E. 111th Street, Indianapolis, Indiana 46280 350 South Edgeware Road, St. Thomas, ON N5P 4L1 © 2013 Masco Corporation of Indiana
