72045T▲
72055T▲ 72065T▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
4 3/16"
(106 mm)
3 1/4"
(83 mm)
4 2/5"
(112 mm)
2 17/64"
(58 mm)
Dia.
(83 mm)
1 1/16"
(27 mm)
Dia.
3 1/4"
4 1/8"
(105 mm)
(83 mm)
3"
(76 mm)
Max. Deck
Thickness
3 1/4"

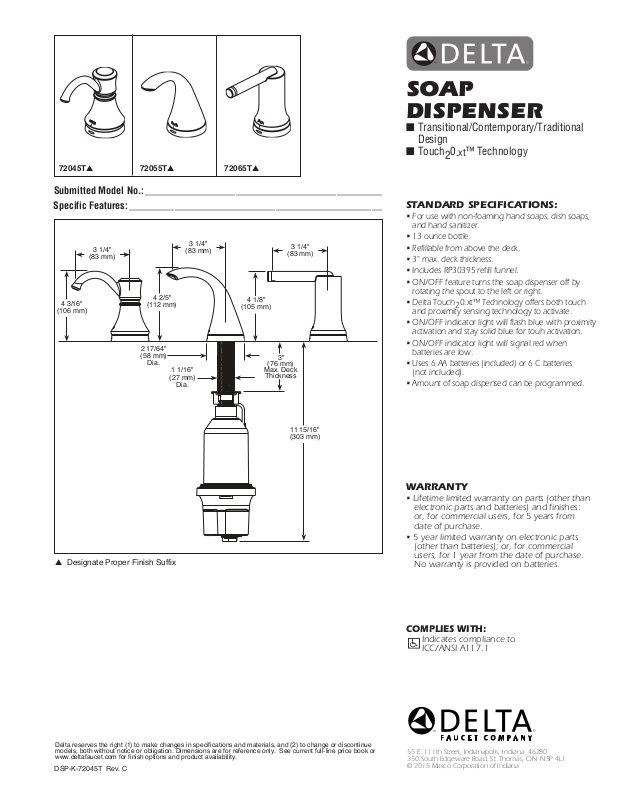

SOAP
DISPENSER
■ Transitional/Contemporary/Traditional
Design
■ Touch20
STANDARD SPECIFICATIONS:
• For use with non-foaming hand soaps, dish soaps,
and hand sanitizer.
• 13 ounce bottle.
• Refillable from above the deck.
• 3" max. deck thickness.
• Includes RP30395 refill funnel.
• ON/OFF feature turns the soap dispenser off by
rotating the spout to the left or right.
• Delta Touch
and proximity sensing technology to activate.
• ON/OFF indicator light will flash blue with proximity
activation and stay solid blue for touh activation.
• ON/OFF indicator light will signal red when
batteries are low.
• Uses 6 AA batteries (included) or 6 C batteries
(not included).
• Amount of soap dispensed can be programmed.
™ Technology
.xt
0.xt™ Technology offers both touch
2
▲ Designate Proper Finish Suffix
11 15/16"
(303 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
Indicates
complia
nce to
ICC/ANSI A117.1
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-72045T Rev. C
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
