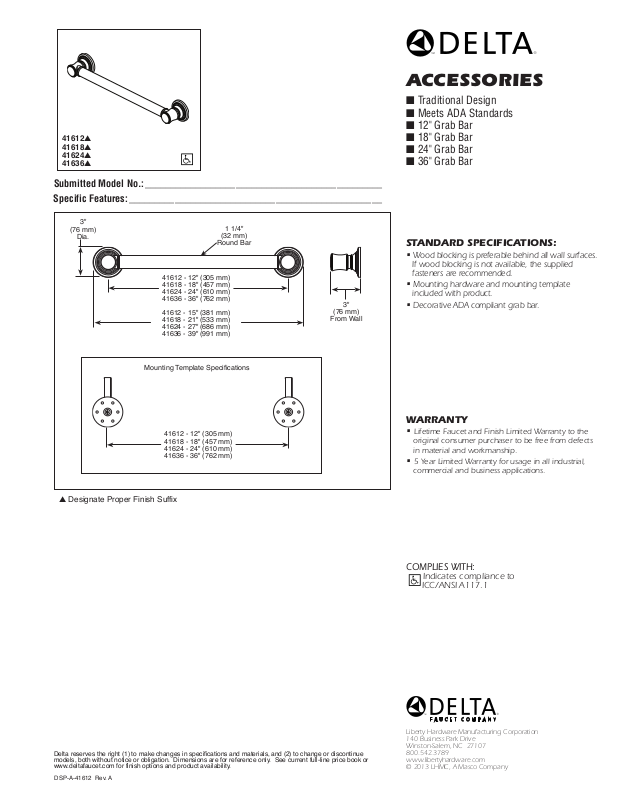

41612▲
41618▲
41624▲
41636▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
ACCESSORIES
■ Traditional Design
■ Meets ADA Standards
■ 12" Grab Bar
■ 18" Grab Bar
■ 24" Grab Bar
■ 36" Grab Bar
3"
(76 mm)
Dia.
41612 - 12" (305 mm)
41618 - 18" (457 mm)
41624 - 24" (610 mm)
41636 - 36" (762 mm)
41612 - 15" (381 mm)
41618 - 21" (533 mm)
41624 - 27" (686 mm)
41636 - 39" (991 mm)
Mounting Template Specifications
41612 - 12" (305 mm)
41618 - 18" (457 mm)
41624 - 24" (610 mm)
41636 - 36" (762 mm)
▲ Designate Proper Finish Suffix
1 1/4"
(32 mm)
Round Bar
3"
(76 mm)
From Wall
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the supplied
fasteners are recommended.
•
Mounting hardware and mounting template
included with product.
•
Decorative ADA compliant grab bar.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-41612 Rev. A
COMPLIES WITH:
Indicates compliance to
ICC/ANSI A117.1
Liberty Hardware Manufacturing Corporation
140 Business Park Drive
Winston-Salem, NC 27107
800.542.3789
www.libertyhardware.com
© 2013 LHMC, A Masco Company
