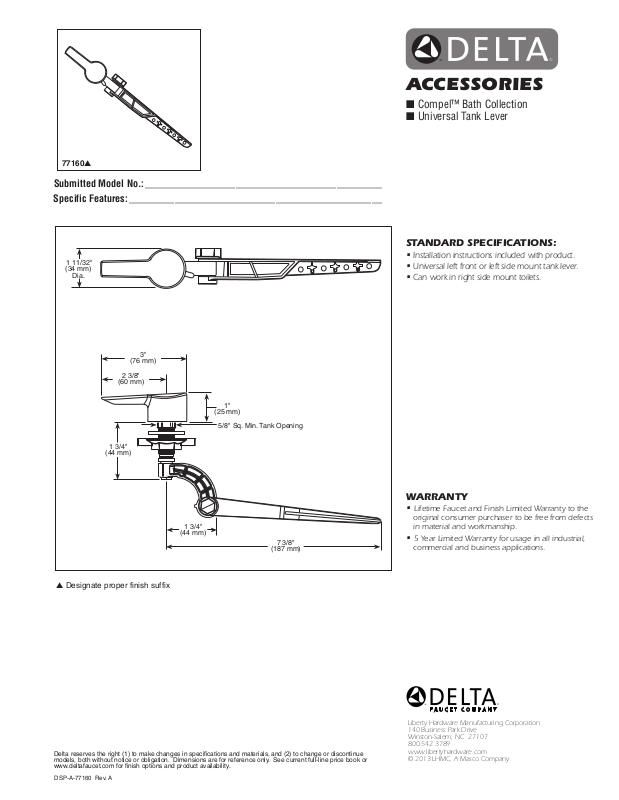

77160▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1 11/32"
(34 mm)
Dia.
3"
(76 mm)
2 3/8"
(60 mm)
ACCESSORIES
■ Compel™ Bath Collection
■ Universal Tank Lever
STANDARD SPECIFICATIONS:
•
Installation instructions included with product.
•
Universal left front or left side mount tank lever.
•
Can work in right side mount toilets.
1 3/4"
(44 mm)
▲ Designate proper finish suffix
1 3/4"
(44 mm)
1"
(25 mm)
5/8" Sq. Min. Tank Opening
7 3/8"
(187 mm)
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-77160 Rev. A
Liberty Hardware Manufacturing Corporation
140 Business Park Drive
Winston-Salem, NC 27107
800.542.3789
www.libertyhardware.com
© 2013 LHMC, A Masco Company
