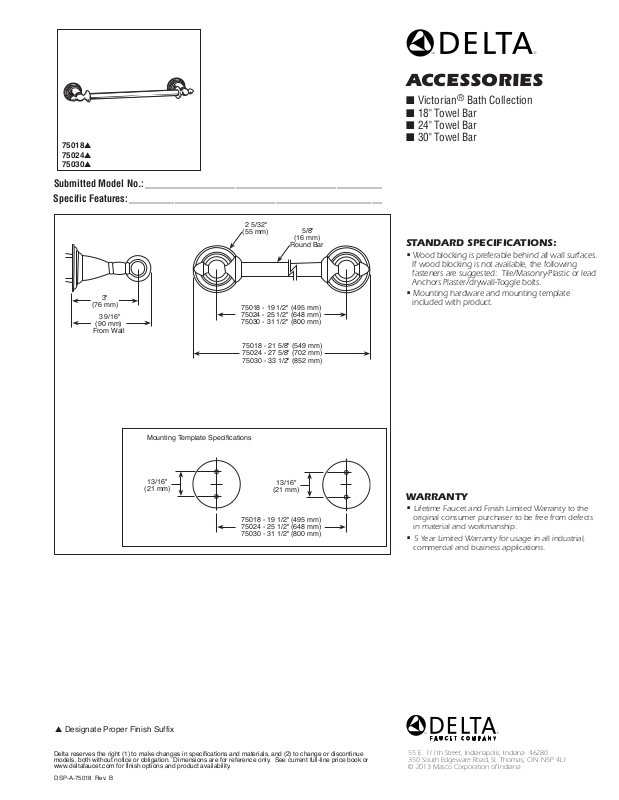

75018▲
75024▲
75030▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
ACCESSORIES
■ Victorian® Bath Collection
■ 18" Towel Bar
■ 24" Towel Bar
■ 30" Towel Bar
3"
(76 mm)
3 9/16"
(90 mm)
From Wall
2 5/32"
(55 mm)
75018 - 19 1/2" (495 mm)
75024 - 25 1/2" (648 mm)
75030 - 31 1/2" (800 mm)
75018 - 21 5/8" (549 mm)
75024 - 27 5/8" (702 mm)
75030 - 33 1/2" (852 mm)
Mounting Template Specifications
13/16"
(21 mm)
75018 - 19 1/2" (495 mm)
75024 - 25 1/2" (648 mm)
75030 - 31 1/2" (800 mm)
Round Bar
13/16"
(21 mm)
5/8"
(16 mm)
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following
fasteners are suggested: Tile/Masonry-Plastic or lead
Anchors Plaster/drywall-Toggle bolts.
•
Mounting hardware and mounting template
included with product.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-75018 Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
