79225▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
ACCESSORIES
■ Addison® Bath Collection
■ Double Towel Bar
24 3/8"
(619 mm)
26 1/4"
(667 mm)
1"
(25 mm)
▲ Designate Proper Finish Suffix

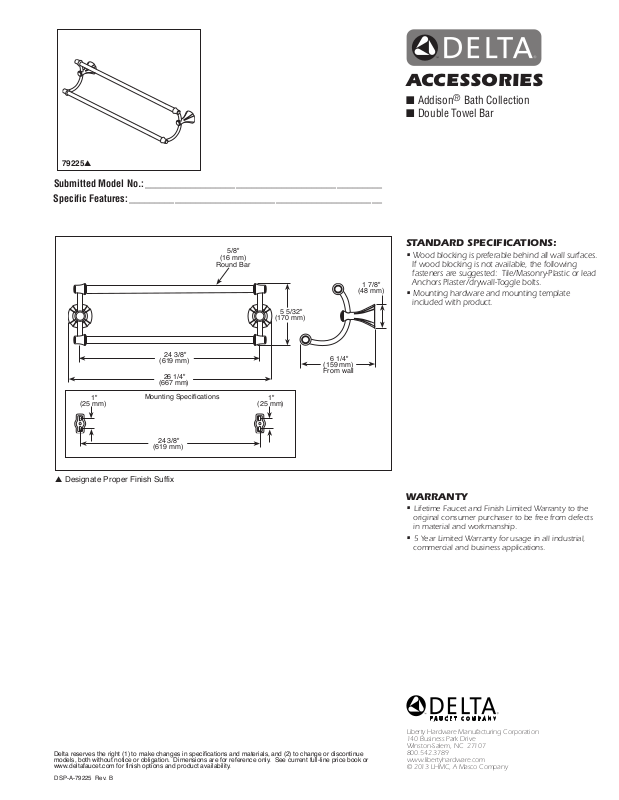

Mounting Specifications
24 3/8"
(619 mm)
5/8"
(16 mm)
Round Bar
(170 mm)
1"
(25 mm)
5 5/32"
6 1/4"
(159 mm)
From wall
1 7/8"
(48 mm)
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall surfaces.
If wood blocking is not available, the following
fasteners are suggested: Tile/Masonry-Plastic or lead
Anchors Plaster/drywall-Toggle bolts.
•
Mounting hardware and mounting template
included with product.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-79225 Rev. B
