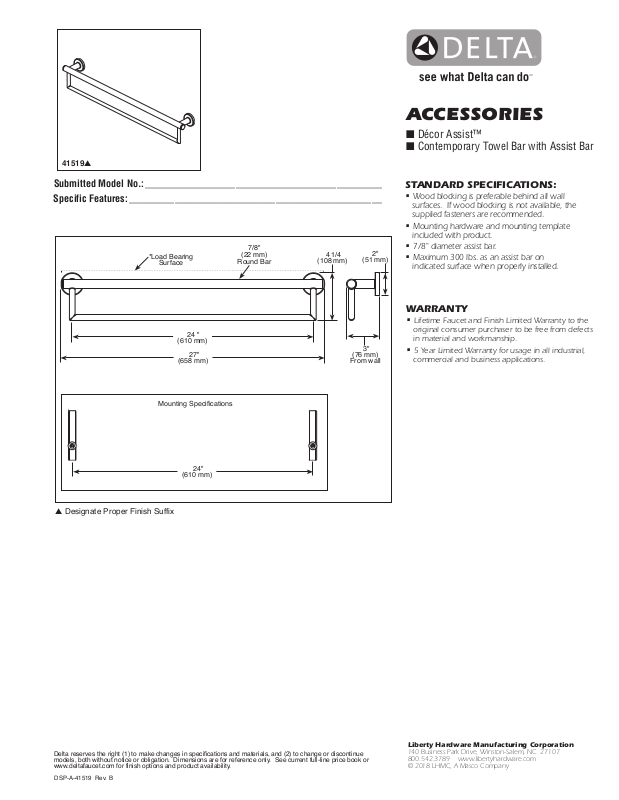

41519▲
ACCESSORIES
■ Décor Assist™
■ Contemporary Towel Bar with Assist Bar
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
*Load Bearing
Surface
24 "
(610 mm)
27"
(658 mm)
Mounting Specifications
24"
(610 mm)
7/8"
(22 mm)
Round Bar
4 1/4
(108 mm)
2"
(51 mm)
3"
(76 mm)
From wall
STANDARD SPECIFICATIONS:
•
Wood blocking is preferable behind all wall
surfaces. If wood blocking is not available, the
supplied fasteners are recommended.
•
Mounting hardware and mounting template
included with product.
•
7/8" diameter assist bar.
•
Maximum 300 lbs. as an assist bar on
indicated surface when properly installed.
WARRANTY
•
Lifetime Faucet and Finish Limited Warranty to the
original consumer purchaser to be free from defects
in material and workmanship.
•
5 Year Limited Warranty for usage in all industrial,
commercial and business applications.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-A-41519 Rev. B
Liberty Hardware Manufacturing Corporation
140 Business Park Drive, Winston-Salem, NC 27107
800.542.3789 www.libertyhardware.com
© 2018 LHMC, A Masco Company
