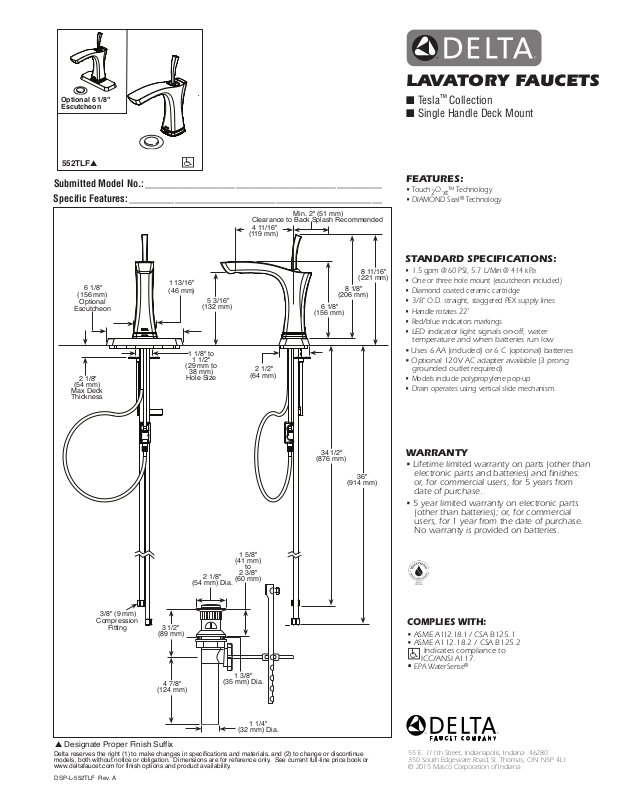

Optional 6 1/8"
Escutcheon
552TLF▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2" (51 mm)
6 1/8"
(156 mm)
(221 mm)
8 1/8"
(206 mm)
8 11/16"
6 1/8"
(156 mm)
Optional
Escutcheon
2 1/8"
(54 mm)
Max Deck
Thickness
1 13/16"
(46 mm)
(29 mm to
Hole Size
5 3/16"
(132 mm)
1 1/8" to
1 1/2"
38 mm)
Clearance to Back Splash Recommended
4 11/16"
(119 mm)
2 1/2"
(64 mm)
LAVATORY FAUCETS
■ Tesla™ Collection
■ Single Handle Deck Mount
FEATURES:
• Touch2O.xt™ Technology
• DIAMOND Seal
STANDARD SPECIFICATIONS:
• 1.5 gpm @ 60 PSI, 5.7 L/Min @ 414 kPa
• One or three hole mount (escutcheon included)
• Diamond coated ceramic cartridge
• 3/8" O.D. straight, staggered PEX supply lines
• Handle rotates 22˚
• Red/blue indicators markings
•
LED indicator light signals on-off, water
temperature and when batteries run low
• Uses 6 AA (included) or 6 C (optional) batteries
• Optional 120V AC adapter available (3 prong
grounded outlet required)
• Models include polypropylene pop-up
• Drain operates using vertical slide mechanism.
®
Technology
34 1/2"
(876 mm)
36"
(914 mm)
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
3/8" (9 mm)
Compression
Fitting
3 1/2"
(89 mm)
4 7/8"
(124 mm)
2 1/8"
(54 mm) Dia.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-552TLF Rev. A
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.
•
EPA WaterSense
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
®
