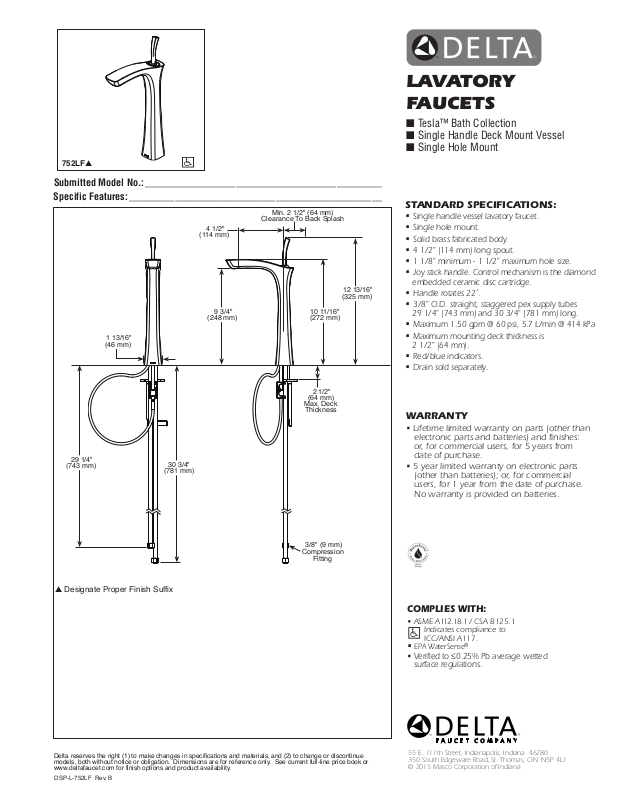

752LF▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2 1/2" (64 mm)
Clearance To Back Splash
4 1/2"
(114 mm)
12 13/16"
(325 mm)
1 13/16"
(46 mm)
9 3/4"
(248 mm)
10 11/16"
(272 mm)
LAVATORY
FAUCETS
■ Tesla™ Bath Collection
■ Single Handle Deck Mount Vessel
■ Single Hole Mount
STANDARD SPECIFICATIONS:
•
Single handle vessel lavatory faucet.
•
Single hole mount.
•
Solid brass fabricated body.
•
4 1/2" (114 mm) long spout.
•
1 1/8" minimum - 1 1/2" maximum hole size.
•
Joy stick handle. Control mechanism is the diamond
embedded ceramic disc cartridge.
•
Handle rotates 22˚.
•
3/8" O.D. straight, staggered pex supply tubes
29 1/4" (743 mm) and 30 3/4" (781 mm) long.
•
Maximum 1.50 gpm @ 60 psi, 5.7 L/min @ 414 kPa
•
Maximum mounting deck thickness is
2 1/2" (64 mm).
•
Red/blue indicators.
•
Drain sold separately.
29 1/4"
(743 mm)
▲ Designate Proper Finish Suffix
30 3/4"
(781 mm)
2 1/2"
(64 mm)
Max. Deck
Thickness
3/8" (9 mm)
Compression
Fitting
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
Indicates compliance to
ICC/ANSI A117.
•
EPA WaterSense
• Verified to ≤0.25% Pb average wetted
surface regulations.
®
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-752LF Rev. B
