Page 1
T2752
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
0
1
2
3
4
5
0 10 20 30 40 50 60 70 80 90
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
Showerhead
0 69 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
CF
CFM
AF
SF
FB
SD
P
= Massage Spray (M)
M
= Slow Massage (SM)
SM
AH
2
O
= Adjustable H2Okinetic™ Spray (AH2O)
= Soft Full Spray (SF)
= Shampoo Rinsing Spray (SR)
= Shampoo Rinsing
Spray
w/Massage (SRM)
=
Full Spray w/Massage (FSM)
= High-Efficiency Spray (HE)
= Crossing Full Spray (CF)
= Crossing Full Spray w/Massage (CFM)
= Fast Massage (FM)
= Soft Drench w/Full Spray (SDF)
= Soft Drench Spray (SD)
= Pause (P)
= Full Body Spray (FB)
= Adjustable Full Spray (AF)
SR
CF
CFM
HE
SDF
AF
SRM
SF
FB
SD
P
FSM
FM
= Massage Spray (M)
M
= Slow Massage (SM)
SM
= H
2
Okinetic™ Spray (H2O)
H
2
O
= Soft Drench Spray w/Massage (SDM)
SDM
AH
2
O
= Pause (P)
P
= Massage Spray (M)
M
= Pause (P)
P
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
3 1/4"
(83 mm)
3 11/16"
(94 mm)
2x 2 1/2"
(64 mm)
9 1/4"
(235 mm)
7"
(178 mm)
T2752 & T4752
4 3/4"
(121 mm)
2 3/4"
(70 mm)
4"
(102 mm)
Full Body
Spray
T4752
8" - 16"
(203 mm - 406mm)
Centers (Flexible)
6 1/4"
(159 mm)
H2Okinetic®
Spray
(305 mm)
8 11/16"
(221 mm)
59" HS Hose
Massage
Spray

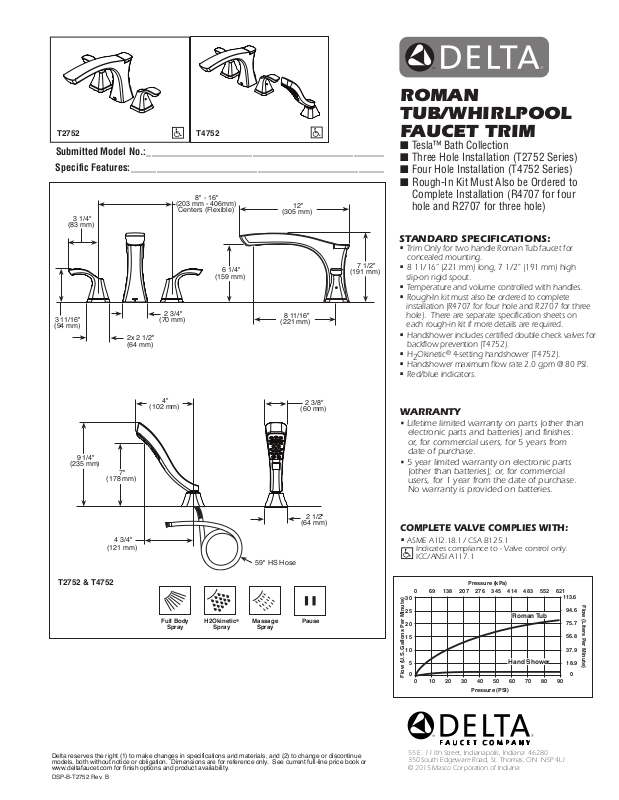

ROMAN
TUB/WHIRLPOOL
FAUCET TRIM
■ Tesla™ Bath Collection
■ Three Hole Installation (T2752 Series)
■ Four Hole Installation (T4752 Series)
■ Rough-In Kit Must Also be Ordered to
Complete Installation (R4707 for four
12"
7 1/2"
(191 mm)
2 3/8"
(60 mm)
2 1/2"
(64 mm)
Pause
hole and R2707 for three hole)
STANDARD SPECIFICATIONS:
•
Trim Only for two handle Roman Tub faucet for
concealed mounting.
•
8 11/16” (221 mm) long, 7 1/2" (191 mm) high
slip-on rigid spout.
•
Temperature and volume controlled with handles.
•
Rough-In kit must also be ordered to complete
installation (R4707 for four hole and R2707 for three
hole). There are separate specification sheets on
each rough-in kit if more details are required.
•
Handshower includes certified double check valves for
backflow prevention (T4752).
•
H2Okinetic® 4-setting handshower (T4752).
•
Handshower maximum flow rate 2.0 gpm @ 80 PSI.
•
Red/blue indicators.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLETE VALVE COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
Indicates compliance to - Valve control only.
ICC/ANSI A117.1
0 69 138 207 276 345 414 483 552 621
30
25
20
15
10
5
0
Flow (U.S. Gallons Per Minute)
0 10 20 30 40 50 60 70 80 90
Pressure (kPa)
Pressure (PSI)
Roman Tub
Hand Shower
113.6
94.6
75.7
56.8
37.9
18.9
0
Flow (Liters Per Minute)
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-B-T2752 Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
