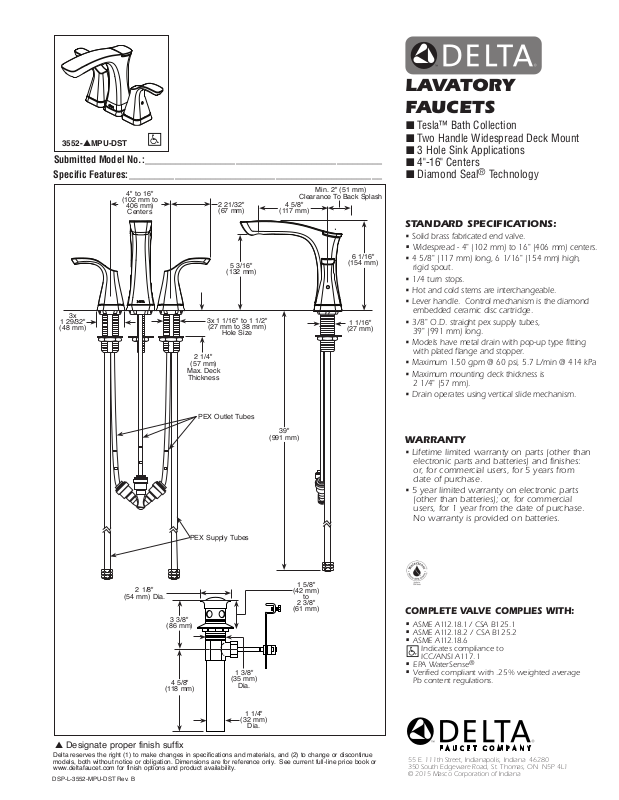

3552-▲MPU-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 2" (51 mm)
Clearance To Back Splash
4 5/8"
6 1/16"
(154 mm)
1 1/16"
(27 mm)
3x
1 29/32"
(48 mm)
4" to 16"
(102 mm to
406 mm)
Centers
2 21/32"
(67 mm)
3x 1 1/16" to 1 1/2"
(27 mm to 38 mm)
2 1/4"
(57 mm)
Max. Deck
Thickness
5 3/16"
(132 mm)
Hole Size
(117 mm)
LAVATORY
FAUCETS
■ Tesla™ Bath Collection
■ Two Handle Widespread Deck Mount
■ 3 Hole Sink Applications
■ 4"-16" Centers
■ Diamond Seal® Technology
STANDARD SPECIFICATIONS:
• Solid brass fabricated end valve.
•
Widespread - 4" (102 mm) to 16" (406 mm) centers.
• 4 5/8" (117 mm) long, 6 1/16" (154 mm) high,
rigid spout.
• 1/4 turn stops.
• Hot and cold stems are interchangeable.
• Lever handle. Control mechanism is the diamond
embedded ceramic disc cartridge.
• 3/8" O.D. straight pex supply tubes,
39" (991 mm) long.
• Models have metal drain with pop-up type fitting
with plated flange and stopper.
• Maximum 1.50 gpm @ 60 psi, 5.7 L/min @ 414 kPa
• Maximum mounting deck thickness is
2 1/4" (57 mm).
• Drain operates using vertical slide mechanism.
2 1/8"
(54 mm) Dia.
PEX Supply Tubes
3 3/8"
(86 mm)
4 5/8"
(118 mm)
PEX Outlet Tubes
1 3/8"
(35 mm)
Dia.
39"
(991 mm)
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLETE VALVE COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
®
1 1/4"
(32 mm)
Dia.
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-3552-MPU-DST Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
