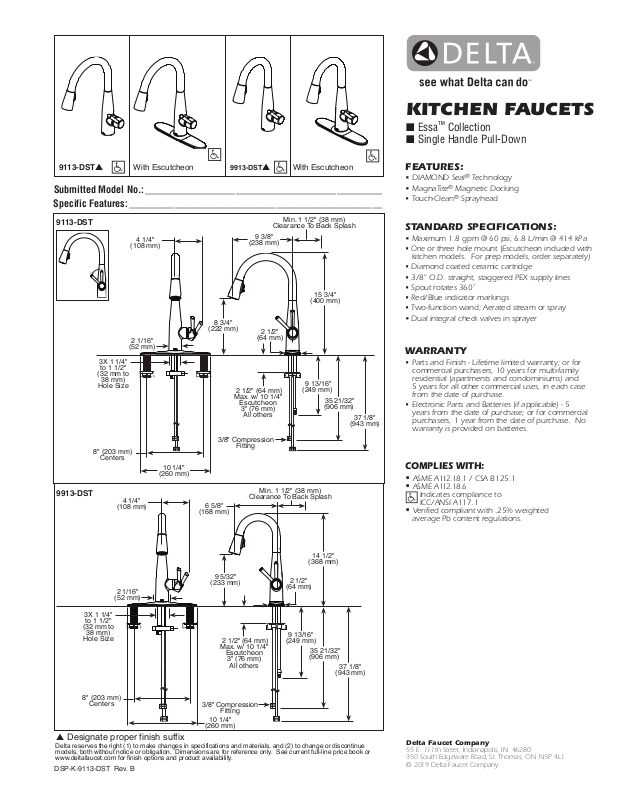

KITCHEN FAUCETS
■ Essa™ Collection
■ Single Handle Pull-Down
9113-DST▲
With Escutcheon
9913-DST
▲
With Escutcheon
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
9113-DST
9913-DST
C
H
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
(108 mm)
4 1/4"
(108 mm)
2 1/16"
(52 mm)
4 1/4"
10 1/4"
(260 mm)
8 3/4"
(222 mm)
3/8" Compression
6 5/8"
(168 mm)
(238 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
Escutcheon
3" (76 mm)
All others
Fitting
Clearance To Back Splash
Min. 1 1/2" (38 mm)
Clearance To Back Splash
9 3/8"
(400 mm)
2 1/2"
(64 mm)
9 13/16"
(249 mm)
Min. 1 1/2" (38 mm)
15 3/4"
35 21/32"
(906 mm)
37 1/8"
(943 mm)
FEATURES:
• DIAMOND Seal® Technology
• MagnaTite
•
Touch-Clean® Sprayhead
®
Magnetic Docking
STANDARD SPECIFICATIONS:
• Maximum 1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
• One
or three hole mount (Escutcheon included with
kitchen models. For prep models, order separately)
•
Diamond coated ceramic cartridge
•
3/8" O.D. straight, staggered PEX supply lines
•
Spout rotates 360˚
•
Red/Blue indicator markings
•
Two-function wand; Aerated stream or spray
• Dual integral check valves in sprayer
WARRANTY
•
Parts and Finish - Lifetime limited warranty; or for
commercial purchasers, 10 years for multi-family
residential (apartments and condominiums) and
5 years for all other commercial uses, in each case
from the date of purchase.
•
Electronic Parts and Batteries (if applicable) - 5
years from the date of purchase; or for commercial
purchasers, 1 year from the date of purchase. No
warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.6
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
14 1/2"
(368 mm)
9 5/32"
2 1/16"
(52 mm)
3X 1 1/4"
to 1 1/2"
(32 mm to
38 mm)
Hole Size
8" (203 mm)
Centers
▲ Designate proper finish suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-K-9113-DST Rev. B
(233 mm)
2 1/2" (64 mm)
Max. w/ 10 1/4"
Escutcheon
3" (76 mm)
All others
3/8" Compression
Fitting
10 1/4"
(260 mm)
2 1/2"
(64 mm)
9 13/16"
(249 mm)
35 21/32"
(906 mm)
37 1/8"
(943 mm)
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2019 Delta Faucet Company
