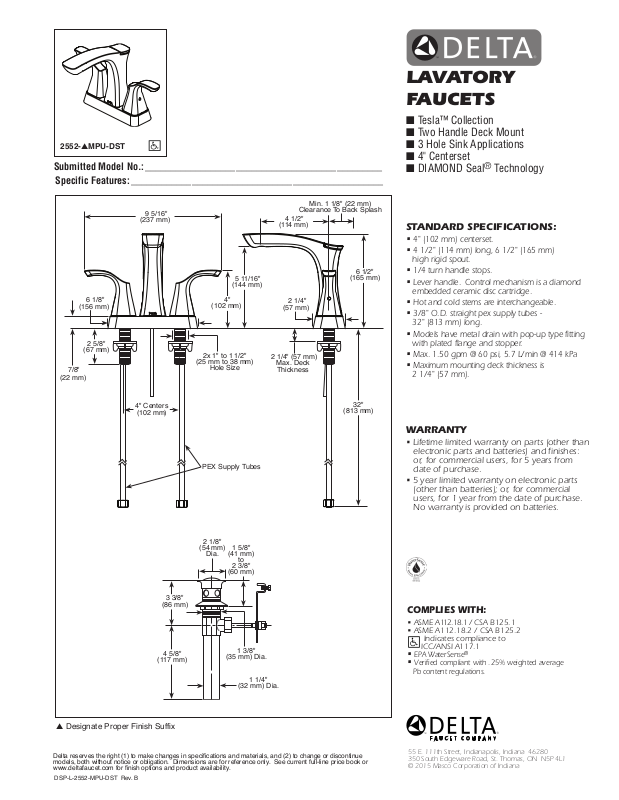

Page 1
2552-▲MPU-DST
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
Min. 1 1/8" (22 mm)
Clearance To Back Splash
4 1/2"
(114 mm)
2 1/4"
(57 mm)
2 1/4" (57 mm)
Max. Deck
Thickness
6 1/2"
(165 mm)
7/8"
(22 mm)
6 1/8"
(156 mm)
2 5/8"
(67 mm)
9 5/16"
(237 mm)
5 11/16"
(144 mm)
4"
(102 mm)
2x 1" to 1 1/2"
(25 mm to 38 mm)
Hole Size
LAVATORY
FAUCETS
■ Tesla™ Collection
■ Two Handle Deck Mount
■ 3 Hole Sink Applications
■ 4" Centerset
■ DIAMOND Seal® Technology
STANDARD SPECIFICATIONS:
•
4" (102 mm) centerset.
•
4 1/2" (114 mm) long, 6 1/2" (165 mm)
high rigid spout.
•
1/4 turn handle stops.
•
Lever handle. Control mechanism is a diamond
embedded ceramic disc cartridge.
•
Hot and cold stems are interchangeable.
•
3/8" O.D. straight pex supply tubes -
32" (813 mm) long.
•
Models have metal drain with pop-up type fitting
with plated flange and stopper.
•
Max. 1.50 gpm @ 60 psi, 5.7 L/min @ 414 kPa
•
Maximum mounting deck thickness is
2 1/4" (57 mm).
4" Centers
(102 mm)
(117 mm)
3 3/8"
(86 mm)
4 5/8"
PEX Supply Tubes
2 1/8"
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm) Dia.
(32 mm) Dia.
(54 mm)
1 1/4"
32"
(813 mm)
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
Pb content regulations.
®
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-2552-MPU-DST Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
