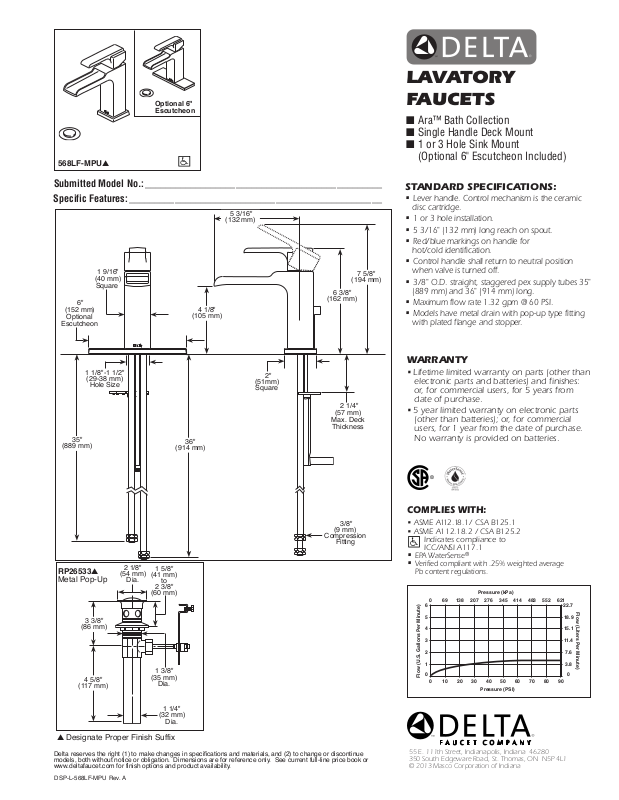

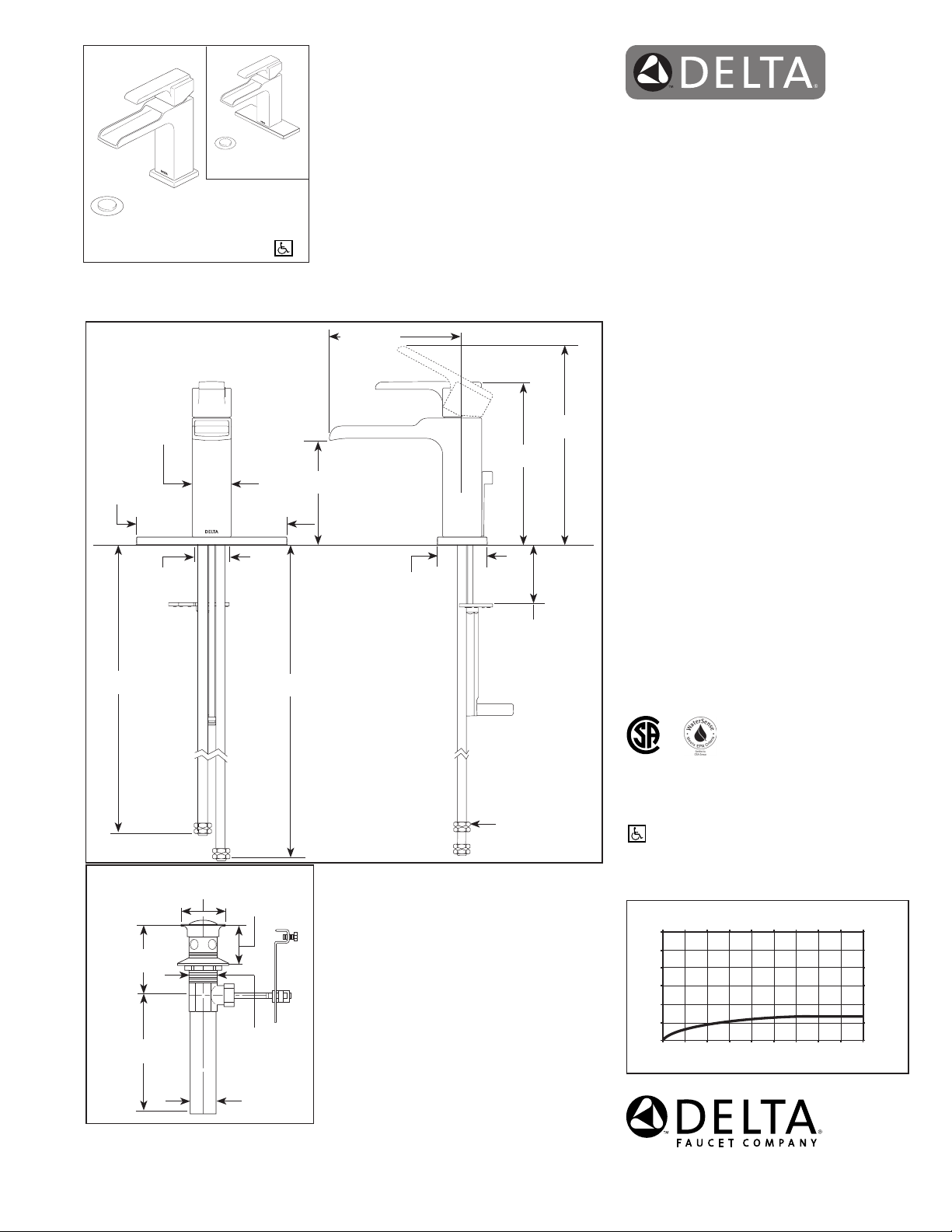

LAVATORY
®
Optional 6"
Escutcheon
568LF-MPU▲
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
5 3/16"
(132 mm)
6"
(152 mm)
Optional
Escutcheon
1 1/8"-1 1/2"
(29-38 mm)
Hole Size
35"
(889 mm)
1 9/16"
(40 mm)
Square
(105 mm)
36"
(914 mm)
4 1/8"
2"
(51mm)
Square
(162 mm)
(194 mm)
6 3/8"
2 1/4"
(57 mm)
Max. Deck
Thickness
7 5/8"
FAUCETS
■ Ara™ Bath Collection
■ Single Handle Deck Mount
■ 1 or 3 Hole Sink Mount
(Optional 6" Escutcheon Included)
STANDARD SPECIFICATIONS:
•
Lever handle. Control mechanism is the ceramic
disc cartridge.
•
1 or 3 hole installation.
•
5 3/16" (132 mm) long reach on spout.
•
Red/blue markings on handle for
hot/cold identification.
•
Control handle shall return to neutral position
when valve is turned off.
•
3/8" O.D. straight, staggered pex supply tubes 35"
(889 mm) and 36" (914 mm) long.
•
Maximum flow rate 1.32 gpm @ 60 PSI.
•
Models have metal drain with pop-up type fitting
with plated flange and stopper.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
3/8"
(9 mm)
Compression
Fitting
RP26533▲
Metal Pop-Up
3 3/8"
(86 mm)
4 5/8"
(117 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
▲ Designate Proper Finish Suffix
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for finish options and product availability.
DSP-L-568LF-MPU Rev. A
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
EPA WaterSense
•
Verified compliant with .25% weighted average
®
Pb content regulations.
069 138 207 276 345 414 483 552 621
6
5
4
3
2
1
0
Flow (U.S. Gallons Per Minute)
0102030405060708090
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2013 Masco Corporation of Indiana
Pressure (kPa)
Pressure (PSI)
22.7
Flow (Liters Per Minute)
