0
1
2
3
4
5
0102030405060708090
Pressure (PSI)
Flow (U.S. Gallons Per Minute)
6
069 138 207 276 345 414 483 552 621
0
3.8
7.6
11.4
15.1
18.9
22.7
Pressure (kPa)
Flow (Liters Per Minute)
HGM Models Only

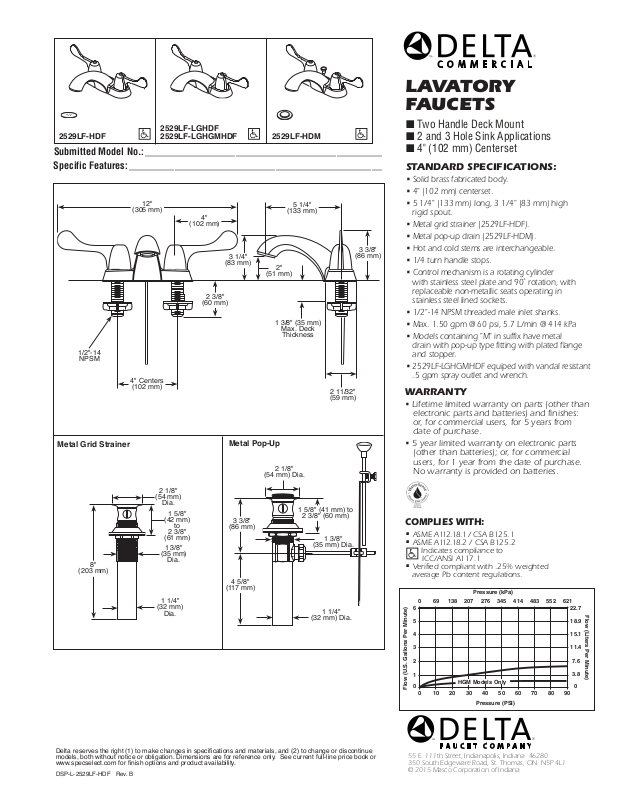

Lavatory Faucets
LAVATORY
FAUCETS
2529LF-HDF
2529LF-LGHDF
2529LF-LGHGMHDF
2529LF-HDM
Submitted Model No.: _______________________________________________
Specific Features: __________________________________________________
1/2"-14
NPSM
Metal Grid Strainer
8"
(203 mm)
12"
(305 mm)
4" Centers
(102 mm)
(54 mm)
2 1/8"
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
4"
(102 mm)
2 3/8"
(60 mm)
3 1/4"
(83 mm)
Metal Pop-Up
3 3/8"
(86 mm)
4 5/8"
(117 mm)
5 1/4"
(133 mm)
2"
(51 mm)
1 3/8" (35 mm)
Max. Deck
Thickness
2 1/8"
(54 mm) Dia.
2 11/32"
(59 mm)
1 5/8" (41 mm) to
2 3/8" (60 mm)
1 3/8"
(35 mm) Dia.
1 1/4"
(32 mm) Dia.
3 3/8"
(86 mm)
■ Two Handle Deck Mount
■ 2 and 3 Hole Sink Applications
■ 4" (102 mm) Centerset
STANDARD SPECIFICATIONS:
• Solid brass fabricated body.
• 4" (102 mm) centerset.
• 5 1/4" (133 mm) long, 3 1/4" (83 mm) high
rigid spout.
• Metal grid strainer (2529LF-HDF).
• Metal pop-up drain (2529LF-HDM).
• Hot and cold stems are interchangeable.
• 1/4 turn handle stops.
• Control mechanism is a rotating cylinder
with stainless steel plate and 90˚ rotation, with
replaceable non-metallic seats operating in
stainless steel lined sockets.
• 1/2"-14 NPSM threaded male inlet shanks.
• Max. 1.50 gpm @ 60 psi, 5.7 L/min @ 414 kPa
• Models containing "M" in suffix have metal
drain with pop-up type fitting with plated flange
and stopper.
• 2529LF-LGHGMHDF equiped with vandal resistant
.5 gpm spray outlet and wrench.
WARRANTY
•
Lifetime limited warranty on parts (other than
electronic parts and batteries) and finishes:
or, for commercial users, for 5 years from
date of purchase.
•
5 year limited warranty on electronic parts
(other than batteries); or, for commercial
users, for 1 year from the date of purchase.
No warranty is provided on batteries.
COMPLIES WITH:
•
ASME A112.18.1 / CSA B125.1
•
ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC/ANSI A117.1
•
Verified compliant with .25% weighted
average Pb content regulations.
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.specselect.com for finish options and product availability.
DSP-L-2529LF-HDF Rev. B
55 E. 111th Street, Indianapolis, Indiana 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2015 Masco Corporation of Indiana
